Pearl Mini User Guide Rotate the Pearl Mini's touch screen orientation
control.
4. Click Apply.
Rotate the Pearl Mini's touch screen orientation

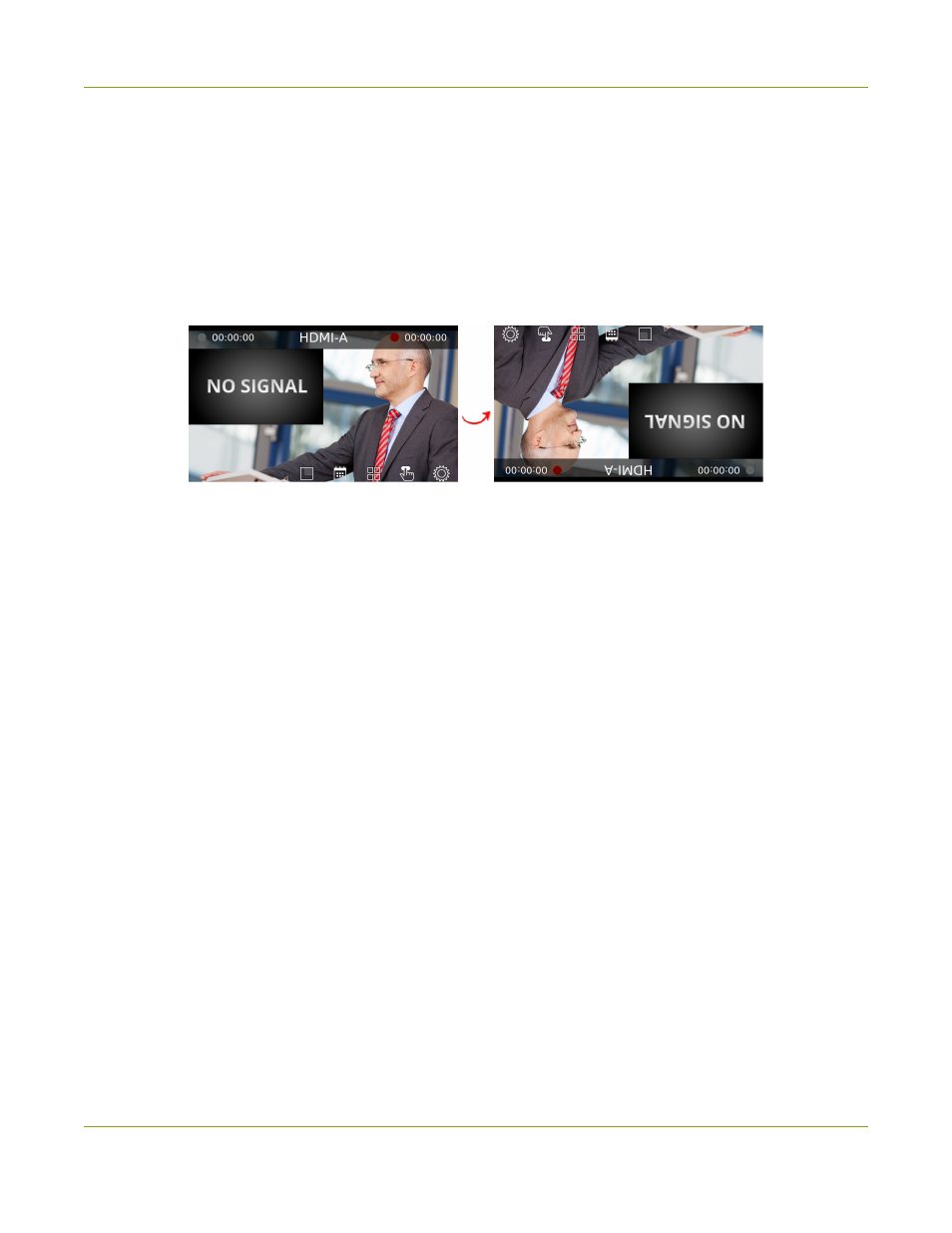

Using the Admin panel, you can rotate the image displayed on the touch screen of Pearl Mini 180 degrees. Text
will appear upside down and backwards on the touch screen unless you physically rotate the Pearl Mini device.
This display orientation setting does not affect the video sent to the video output port, or the video being
streamed or recorded. To flip the video at the output port, see
Mirror the video output port display .
Rotate the touch screen 180° using the Admin panel
1. Login to the Admin panel as admin, see Connect to the Admin panel .
2. From the Configuration menu, select Touch Screen. The Touch screen configuration page opens.
3. From the Orientation drop-down menu, select 180° and then click Apply.
Set the Pearl device screen timeout
Initially, the Pearl device screen is always on for easy monitoring. However, you can set the screen to shut off
after a given amount of time. To re-enable the screen after it times out and shuts off:
l Tap anywhere on the screen for Pearl-2 or Pearl Mini.
l If the start screen is not set to locked mode and a screen timeout occurs, tapping the touch screen
returns you to the last screen you were on before the timeout occurred.
l If you set a 4-digit PIN when the start screen is in locked mode, a lock appears in the top right of the
start screen after a timeout. You must enter the PIN to unlock the start screen for access to the
touch screen.
l .
Set the screen timeout using the Admin panel
1. Log in to the Admin panel as admin, see Connect to the Admin panel .
2. From the Configuration menu, select Touch Screen (Front Screen for Pearl Nano). The Touch
screen/Front screen configuration page opens.
BETA DRAFT - 53
