MagicQ User Manual 43 / 355

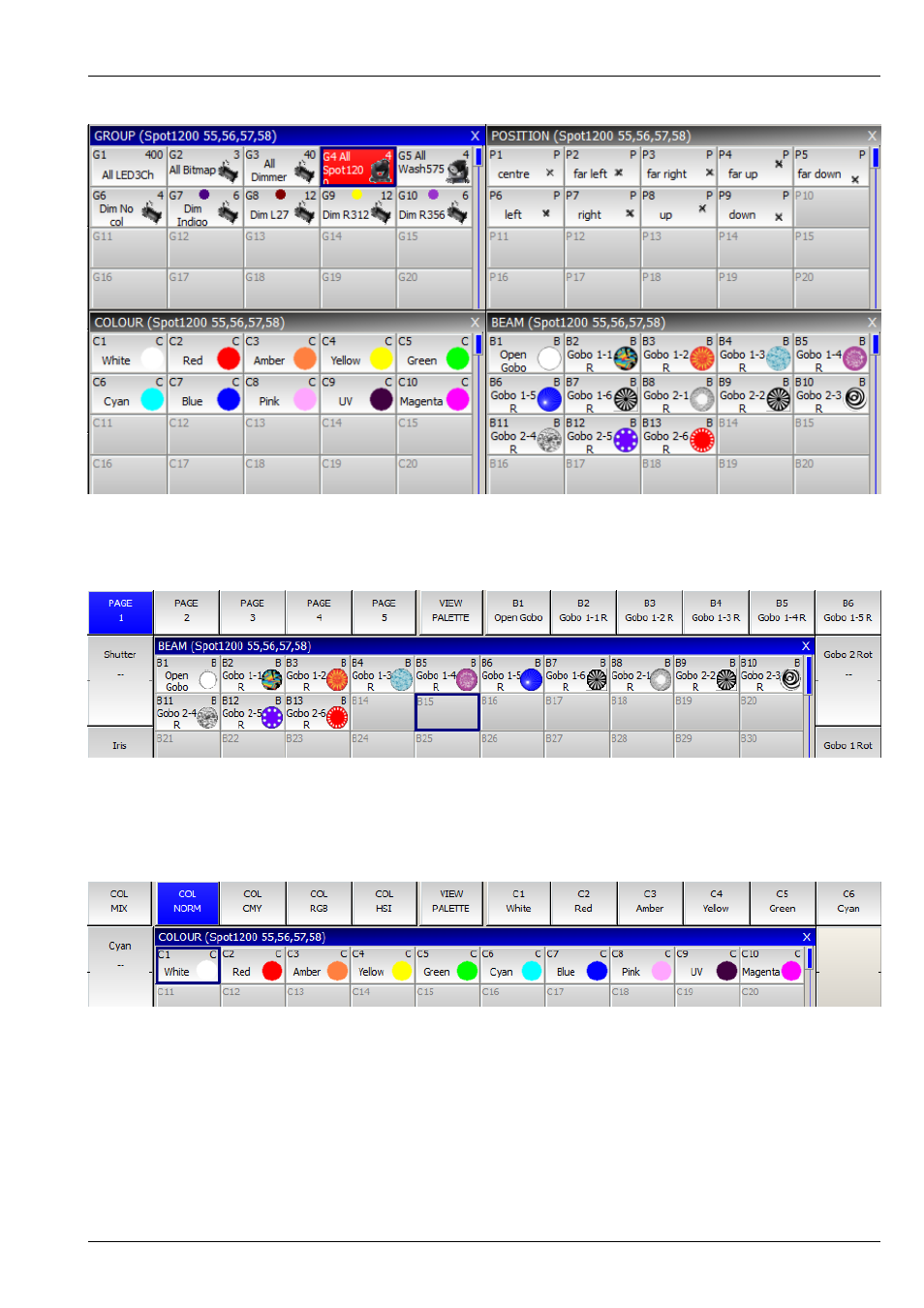

The highlighted window enables controls the soft buttons and rotary encoders. In each of the Windows the X and Y encoders
control the most important attributes – Pan and Tilt in Position Window, Col Wheel 1 and Col Wheel 2 in the Colour Window
and Gobo Wheel 1 and Gobo Wheel 2 in the Beam Window. In the Beam Window there are more than eight attributes to be
controlled – these are accessed using multiple pages of encoders – by pressing the NEXT PAGE soft button.
For indexed attributes such as colour wheels and gobo wheels, the button associated with each encoder can be used to bump the
attribute value to the next range. Pressing SHIFT and the button bumps back to the previous range.
In addition the window enables selection of palette values for the attribute type using the touch screen. When heads are recorded
the system automatically generates palettes for each attribute type. You can record new palette entries, or modify existing ones
as you see fit.
In the Colour Window pressing the COL MIX / COL ATTRIBS button changes to the colour picker. Press COL TYPE to select
standard colours, Lee colours, Rosco colours or HIS model.
