GigaStudio 4 Reference Manual 125

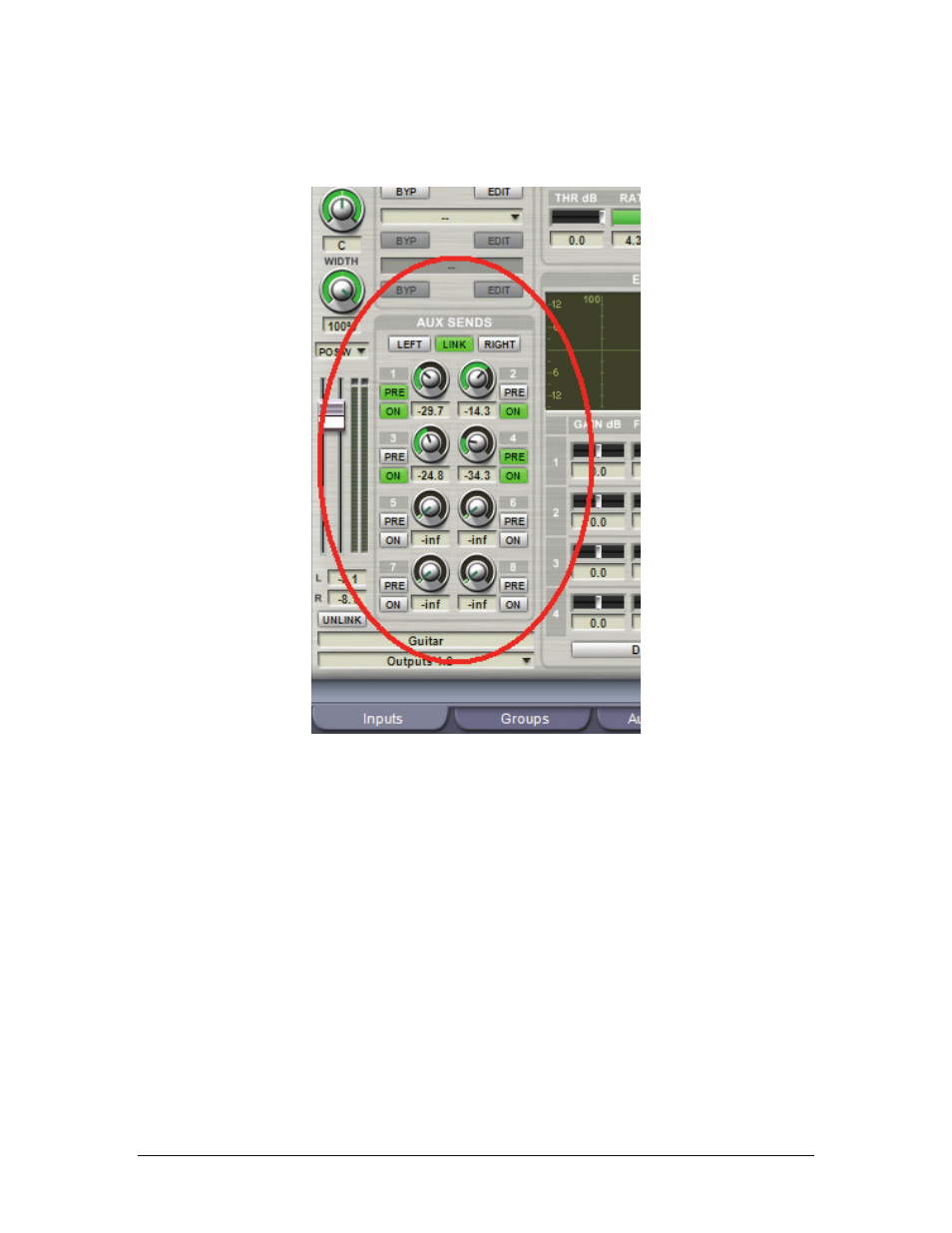

Note: A channel must be in wide view mode to assign its Aux Sends. There are eight available aux send
controls that send signals to the eight available Aux Return channels. Each Aux Send control section has the
following controls and parameters.
Aux Send knob:
This varies the amount of signal sent from the DSP Station channel to the equivalent Aux
Return channel (i.e., Aux Send knob 1 sends signal to Aux Return channel 1).
Pre button:
When enabled (bright green), the Aux Send level is unaffected by the channel fader. Thus, the
amount of signal going to the aux bus doesn’t change based on the channel fader level. When disabled (gray),
the amount of signal going to the aux bus increases and decreases based on the channel fader setting.
On:
When enabled (bright green), the Aux Send is routed to the Aux Return bus. When disabled (gray), no
signal goes to the Aux Return bus, regardless of the Aux Send knob level. Turn off sends that aren’t in use to
save CPU power.
Attenuation numeric readout:
The numeric field below the Aux Send knob shows the amount of attenuation
the control provides, from –inf to 0.
