GigaStudio 4 Reference Manual
134
•

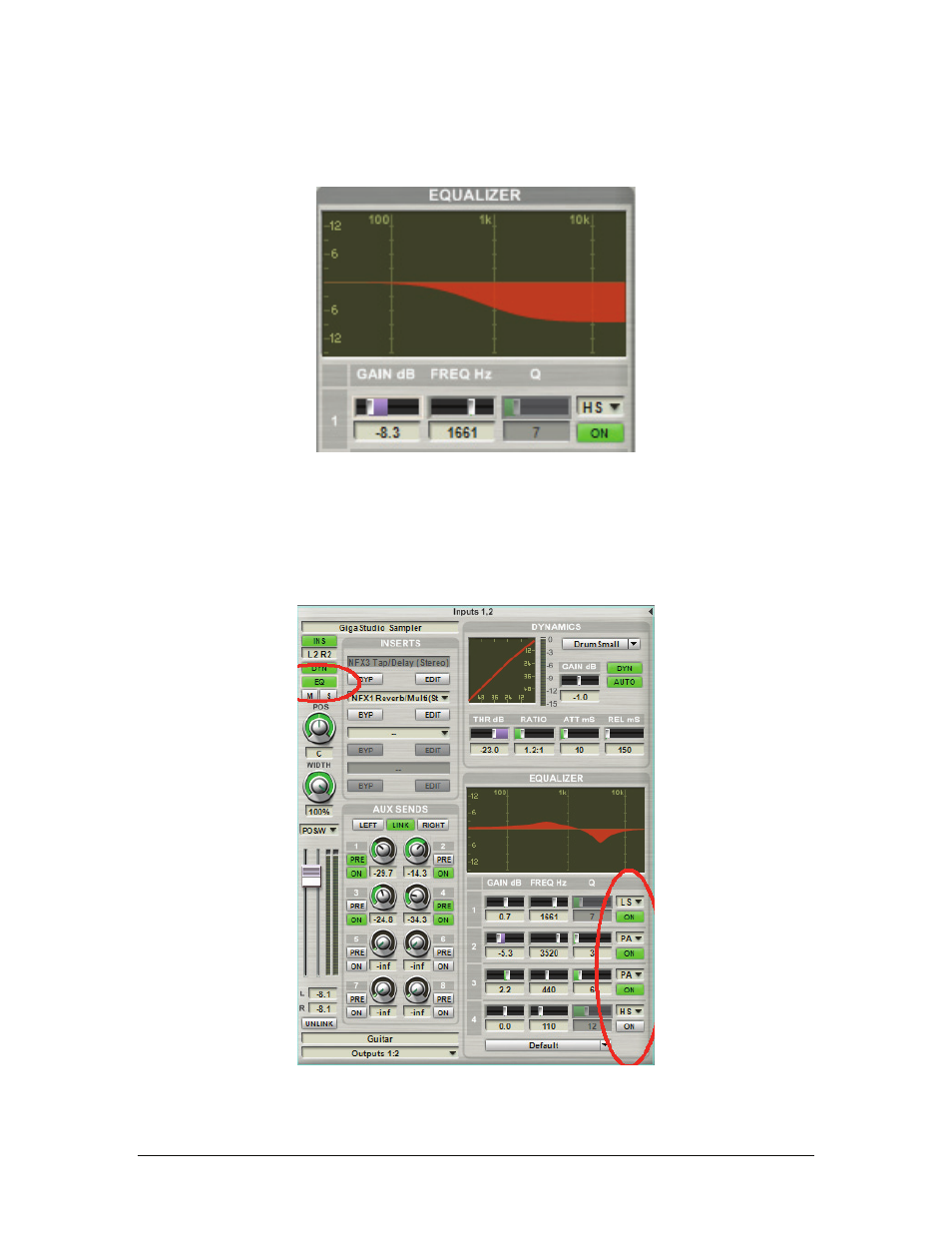

High Shelf (HS)
reduces or boosts response above a particular frequency, with the response eventually
flattening out. Only the Gain and Frequency controls are functional.
EQ Enable/Disable
There is a separate On button for each of the four bands of EQ; these work in conjunction with the channel
master EQ enable button (below the master DYN button) as follows.
•
Master EQ button enabled, individual EQ stage button(s) enabled:
Associated buttons are lit bright
green.
