GigaStudio 4 Reference Manual 71

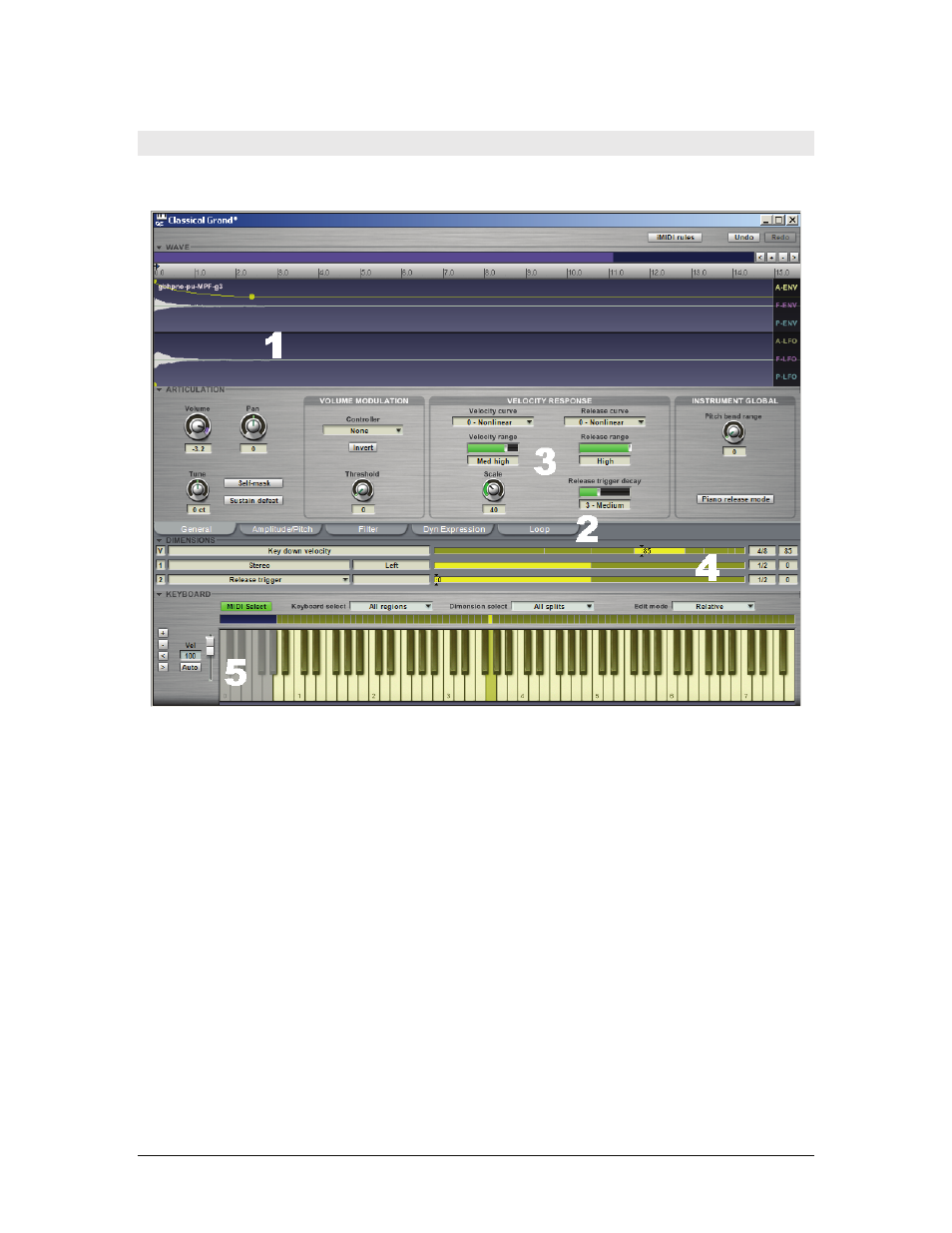

QuickEdit Architecture
QuickEdit groups parameters into multiple function tabs to streamline the editing process.
1. The Waveform display shows the waveform being edited and a timeline of a sample’s duration, but also
superimposes envelope and LFO characteristics so you can see how they affect the waveform.
2. The five QuickEdit page selector tabs choose which function to edit.
3. Each QuickEdit page groups editing controls related to a particular tabbed function (Filter, Loop, etc.).
4. The Dimension display shows how dimensions are arranged across the keyboard, and allows for a number
of different dimension editing modes.
5. As with the MIDI mixer, the virtual keyboard remains onscreen, so you can trigger notes and test your
edits.
