Flange Type Terminal and Wiring Specifications
Wire gauges and tightening torques
are identical to standard models.
Unit: in. [mm]
(2) GROUND
TERMINALS
CONTROL CIRCUIT
TERMINALS
MAIN CIRCUIT
TERMINALS
SECTION A-A

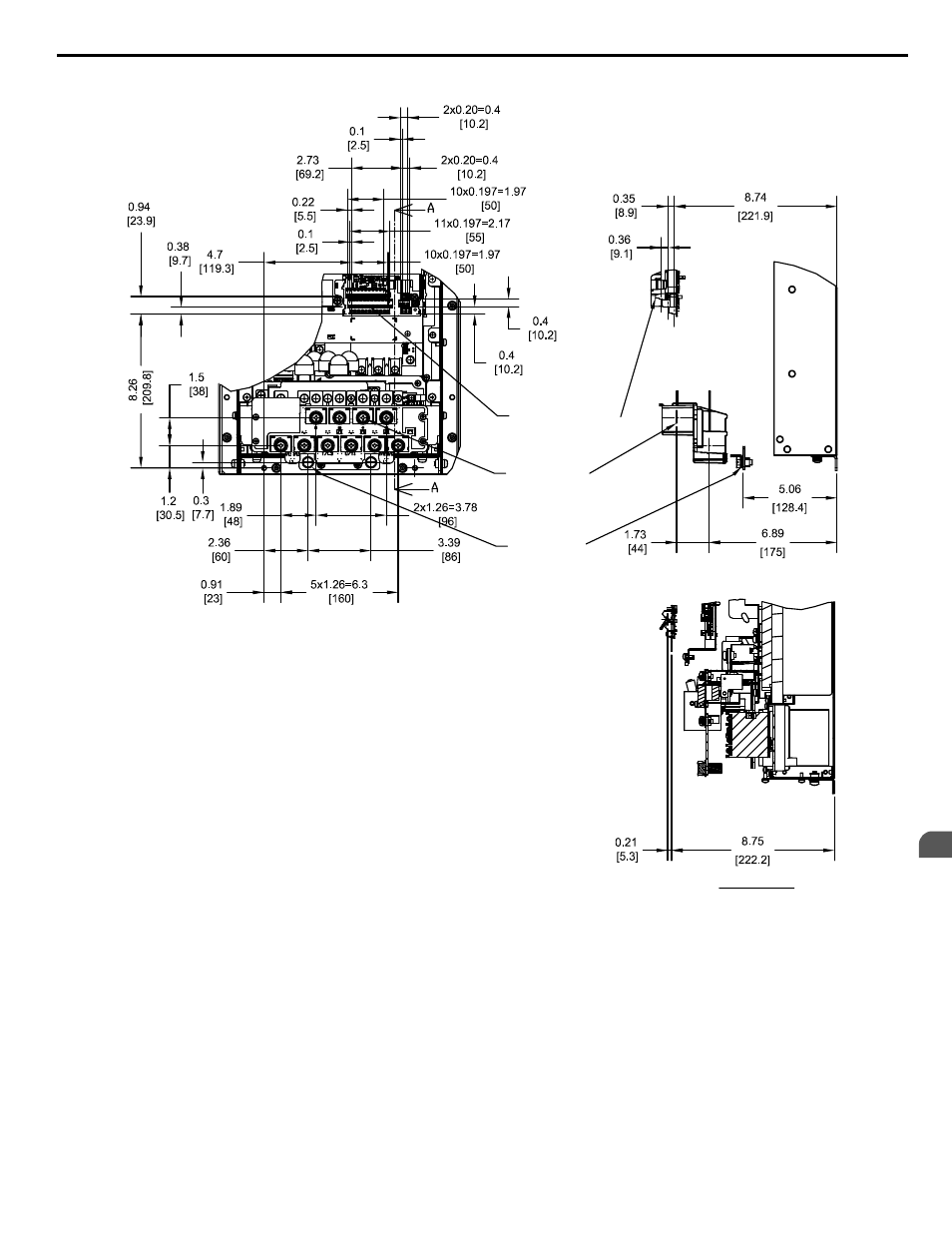

Figure 2.33 Models 2A0138, 4A0072, and 5A0041 and 5A0052
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA ELECTRIC TOEP C710616 41E YASKAWA AC Drive - A1000 Quick Start Guide
71
2
Mechanical Installation
