104 Kayak — User Manual
Section 3 — Control Panels
DD Mode Keyer Subpanel

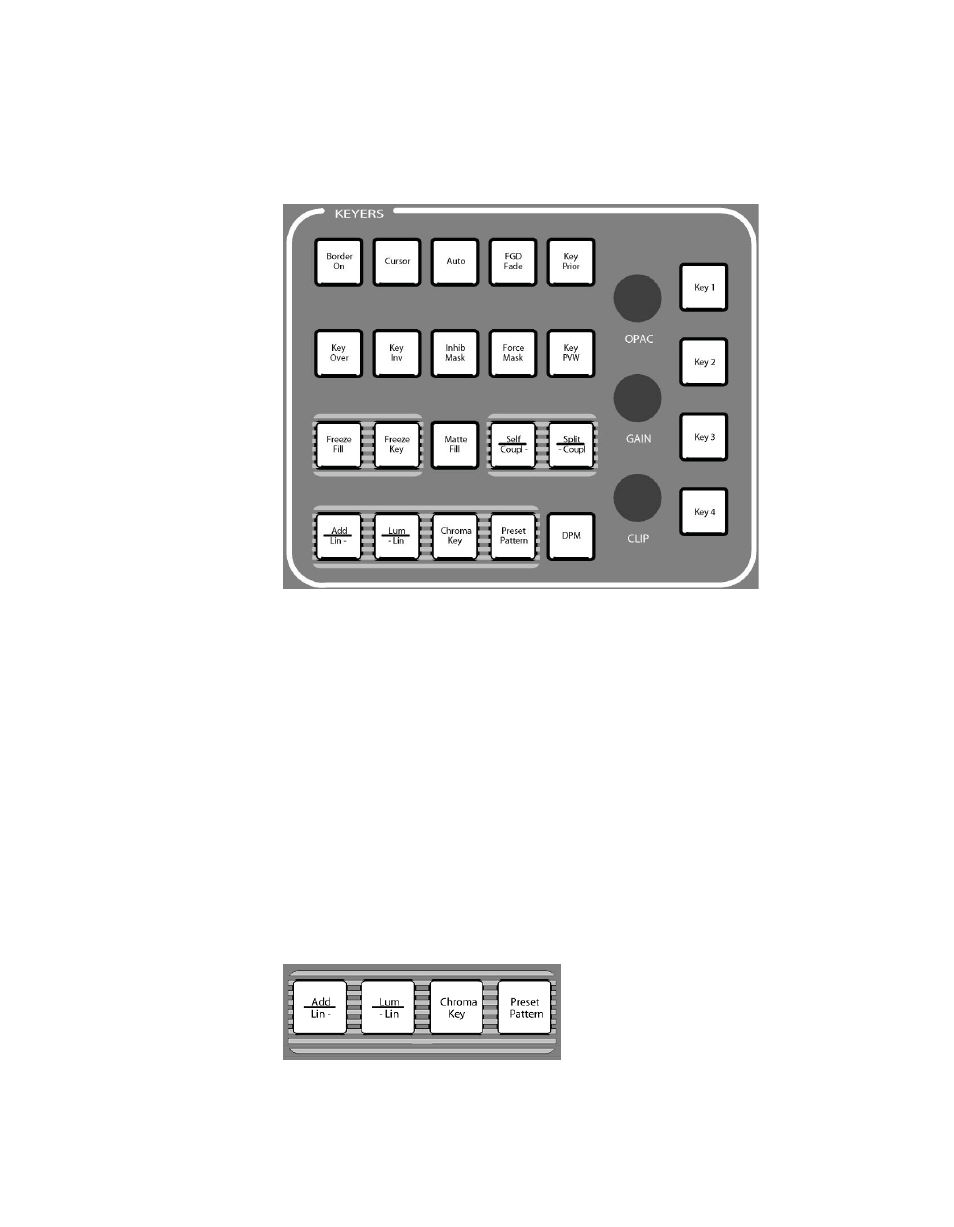

Figure 66. Subpanel Keyers (DD Mode)
Key 1...4
These buttons delegate the Keyers Panel and indicate which keyer is cur-
rently delegated to the Keyers Panel.
Due to the Auto delegation the keyers panel is automatically delegated to the
appropriate keyer when it makes sense.
When Auto Menu is enabled, the menu display of the attached side panel will
switch to the appropriate Key Menu and sub-menu. Parameter adjustment is
performed by the menu digipots.
Key Types
Figure 67. Key Type Buttons
8448_22_
r0
8447_19
r0
