Kayak — User Manual 289
DPM Menus
Trail Wind
Direction —sets the direction of the wind and follows the same direction as
rotations:
• 1.00 is up or “North”,
• 1.25 is right or “East”,
• 1.5 is down or “South”,
• and 1.75 is left or “West”.
The defaults required for 4x3 and 16x9 (HD and SD) may vary.
Speed sets the speed that the wind blows the trails off of the screen.
Layering Mode —controls how the live video interacts with the video in the
image buffer. Selecting the Montage Mode button displays the Select Montage
Mode button pane, as shown in Figure 216 .

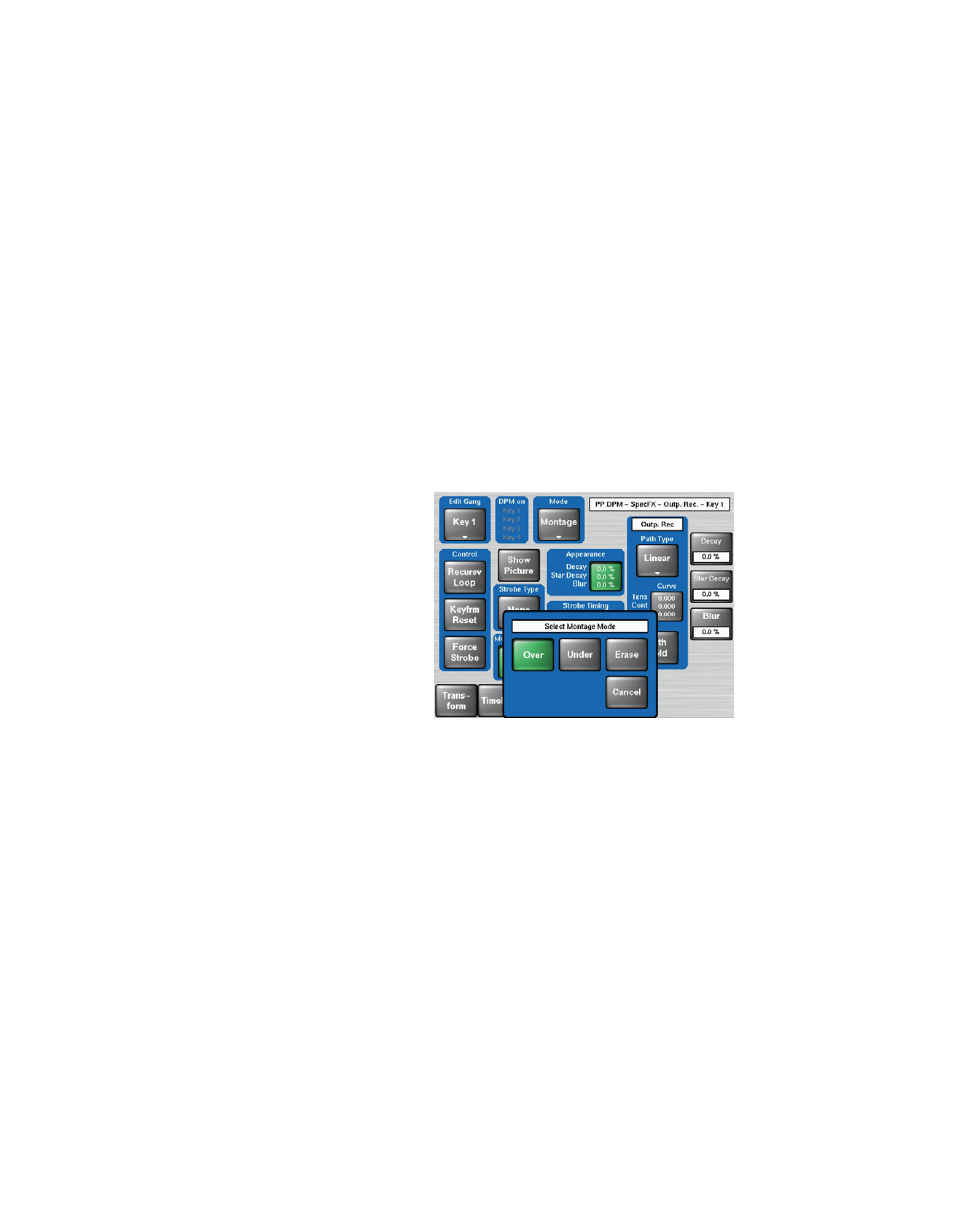

Figure 216. Output Recursive - Montage - Layering Mode
The following describes the function of each mode button:
• Over : Places the live video or newest image on top of the effect.
• Under : Places the live video or newest image under the effect.
• Erase : Erases the previously created video in the montage as you fly the
new image over the effect.
