Kayak — User Manual 319
DPM Menus
Clip Record Menu
The Clips Record menu allows the user to create or re-record clips.
New with V693 the RAM Recorder is extended with basic Audio features
with Embedded Audio.
To create a new clip, press the Record New button. Recording starts immedi-
ately and the clip name is set to a default name. If record length is set to
00:00, the clip will record until the space left is 00:00. Press Still or
E/E to stop
recording. If a record length is set, then a new clip of that length will be
recorded.
The parameters of the recorded clips are shown in the display pane.
Space left shows the free storage space for full frame clips in hours: min: sec:
frames. Space left w/crop shows the maximum duration of the current
cropped clip based on the free storage space in hours:min:sec:frames
dependent of the selected channel.

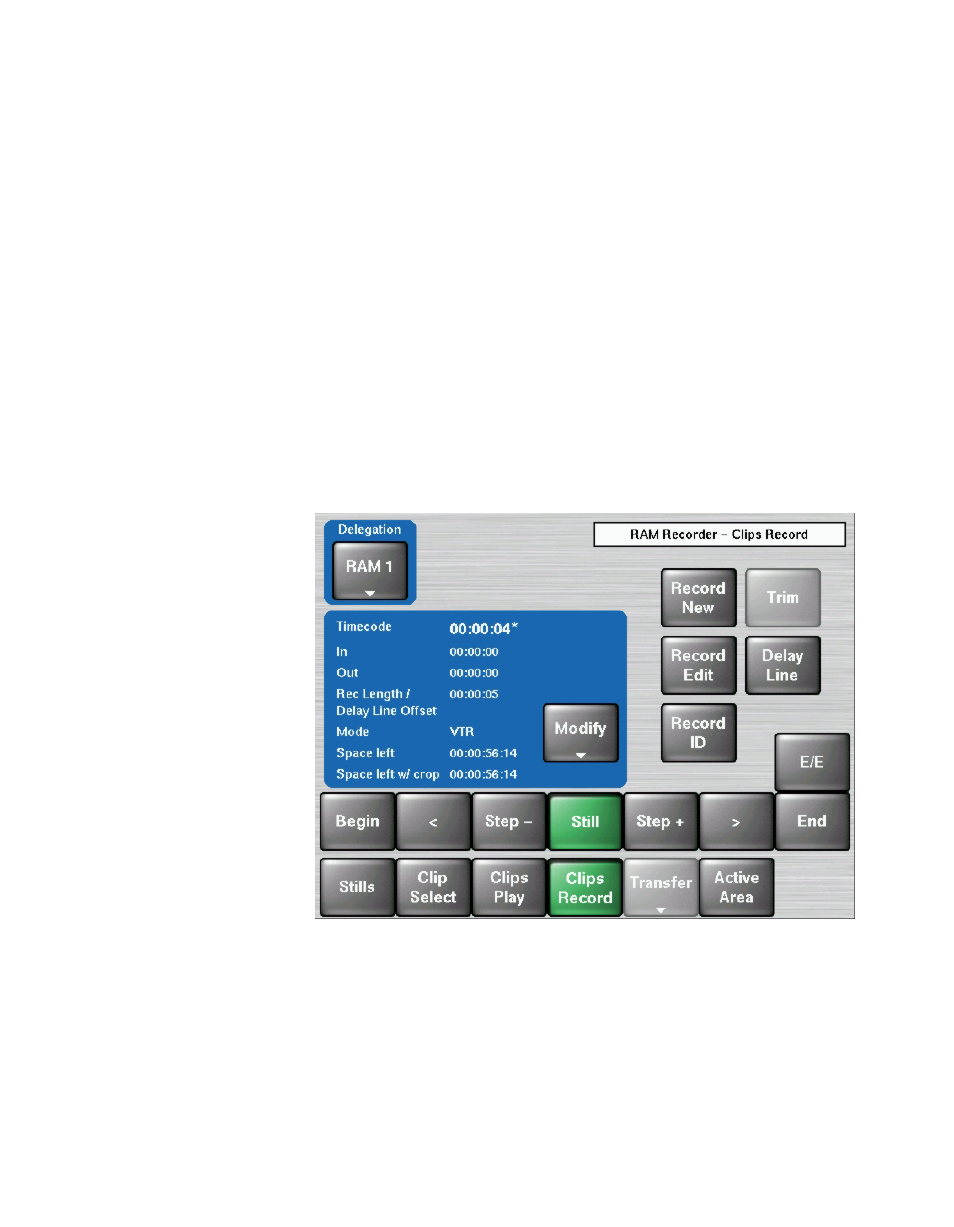

Figure 240. Clip Record Menu
Record New —Starts recording a new clip. Clip position and clip name will be
created automatically.
Record Edit —Starts recording in an existing clip at the current position. The
system allows recording over the end of the current clip, which results in
appending to the current clip.
