374 Kayak — User Manual
Section 6 — System Operation
To Transition Between Different Keyer Priorities
Key priority transitions use a Current priority stack and a Next priority
stack. The transition occurs between the two stacks.
1. Press the Key Prior Transition element button in the Transition subpanel

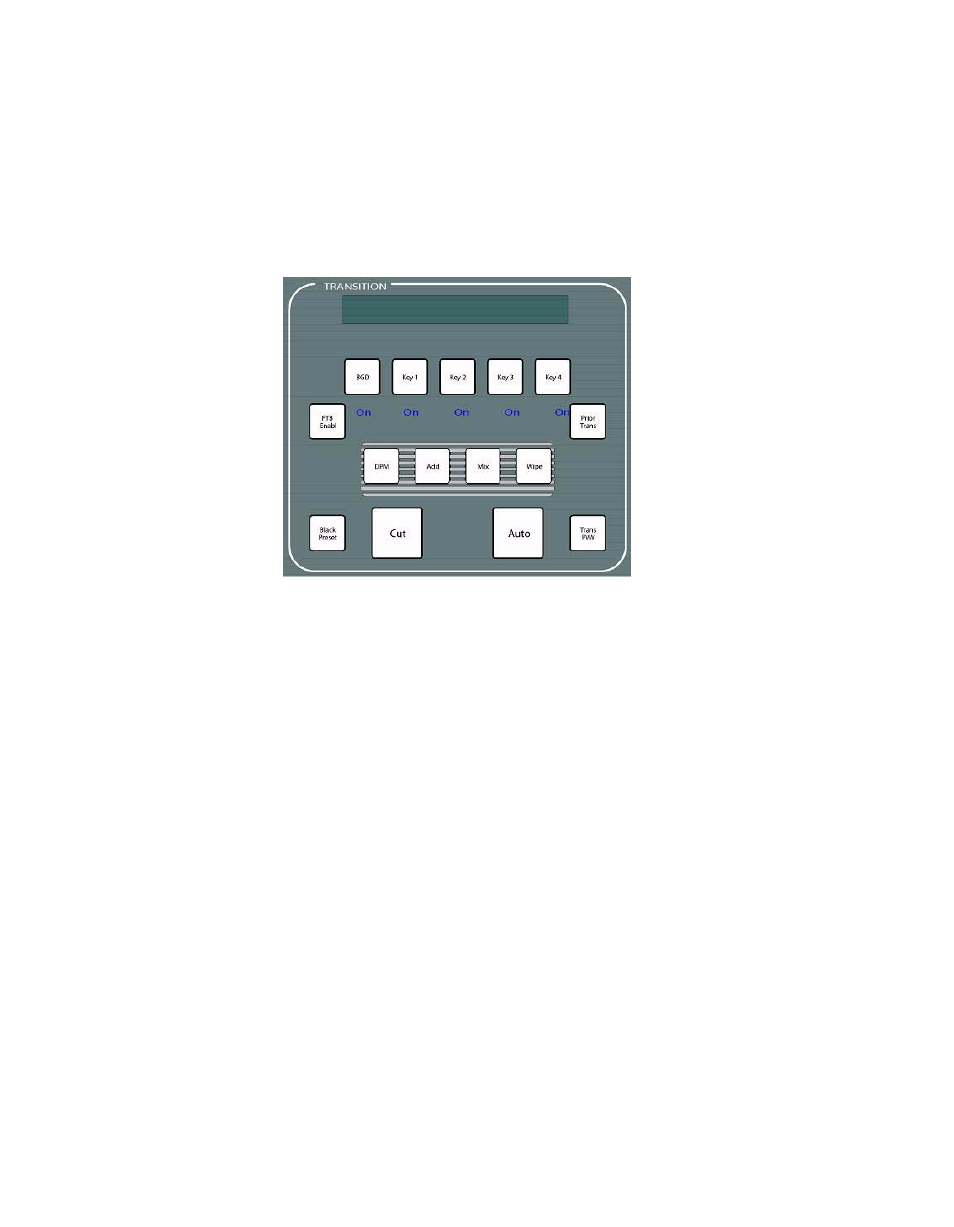

Figure 299. Transition Subpanel
2. If not already set up, turn on the desired keys and arrange them so they
overlap, observing the Program monitor. This will make the changes in
key priority visible. For demonstration purposes, you can use four
preset pattern keys.
3. Delegate that M/E for preview in the Preview subpanel. This shows the
end result of the transition (the Next priority).
4. Go to the Keyer-Priority menu by pressing the Keyer button in the Home
menu, then touch the Priority/Misc category selection button.
5. The current stack in the menu is automatically set to what is currently
being output. You can change the Current priority stacking order if
desired, as described in
To Change the Current Keyer Priority on page 373 .
6. Set up the Next priority stacking order, selecting the keyers in the Next
column and then using the
Top, Move Up, Move Down , and Bottom buttons
(Figure below). The new stack will be visible on the preview monitor.
