554 Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
Extern DVE Index Card
Index card for external DVE settings.

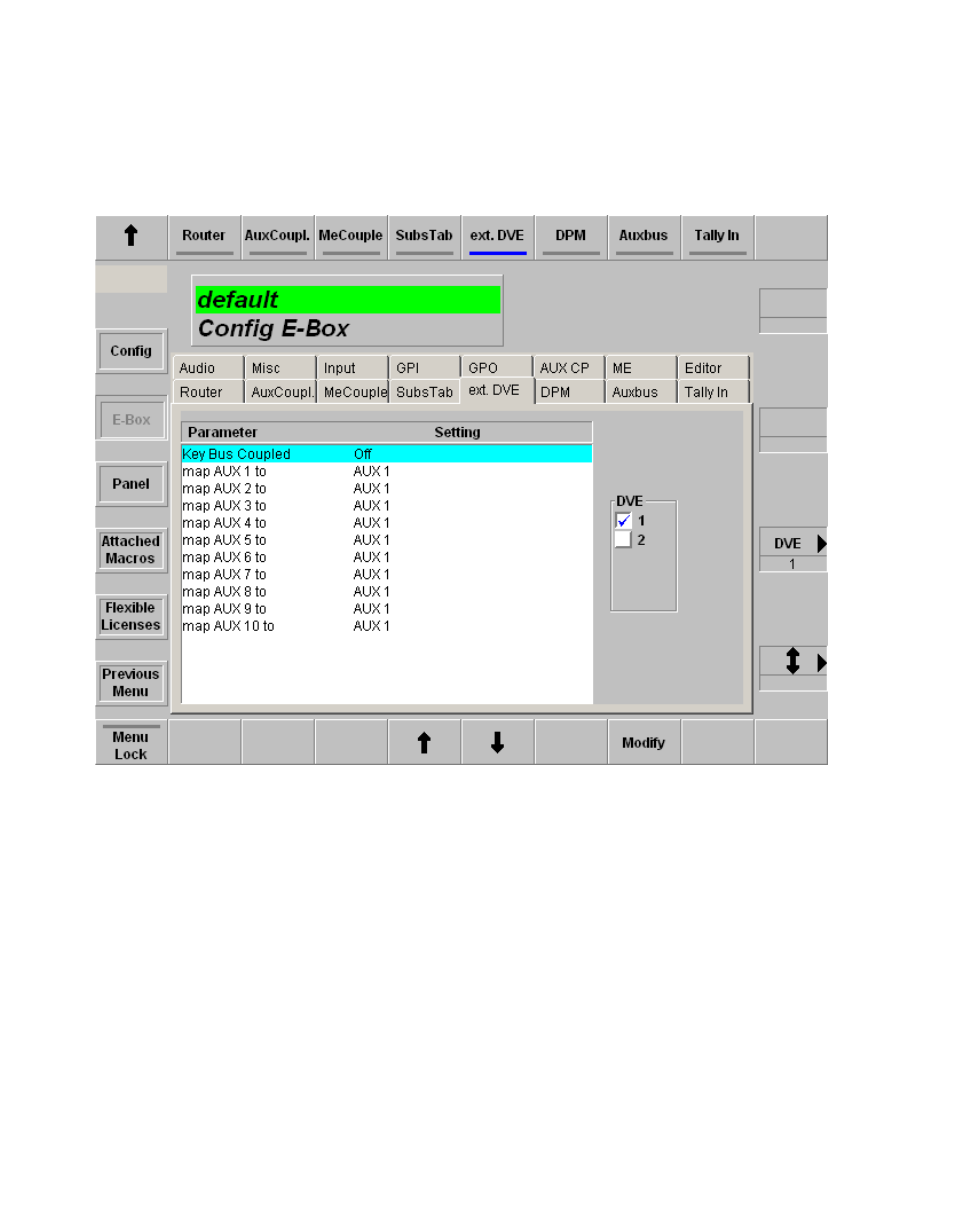

Figure 457. Sidepanel – Index Card Extern DVE
For DVE control, the AUX buses supplying the video and key signals have
to be directly indicated in the GVG200 protocol. In order to keep an assign-
ment variable, this index card is available enabling an AUX bus mapping.
Thus, not only the permanently entered AUX buses can be used but also all
the other AUX buses.
If the DVE Key and Fill source are assigned to AUX buses (that is the
normal way working with the DVE) each time the DVE Fill source is
changed at the AUX bus selection. The coupled key source is set on the cor-
responding DVE Key bus. This coupling can be activated or deactivated
with the parameter Key Bus Coupled On/Off.
