Kayak — User Manual
469
DVE Menus
Dialog Buttons
DVE Extern
Menu serves to control an external DVE system.
DPM Main
Main menu page to control the internal iDPM system.
DPM Edit Menu
Edit menu page to create new effects.
Function Buttons
Menu Lock
For details refer to the
DVE1 / DVE2
Selecting the channel of the external DVE.
DVE effects can be selected either by positioning the blue cursor box with
the digipots or by clicking with the mouse on the desired effect and confirm
with OK. The selected effect can be used as DVE transition or the DVE can
be controlled by the Motion Controls in this menu. With the digipot DVE
the DVE can be positioned to a fixed point in the timeline.
Motion Control

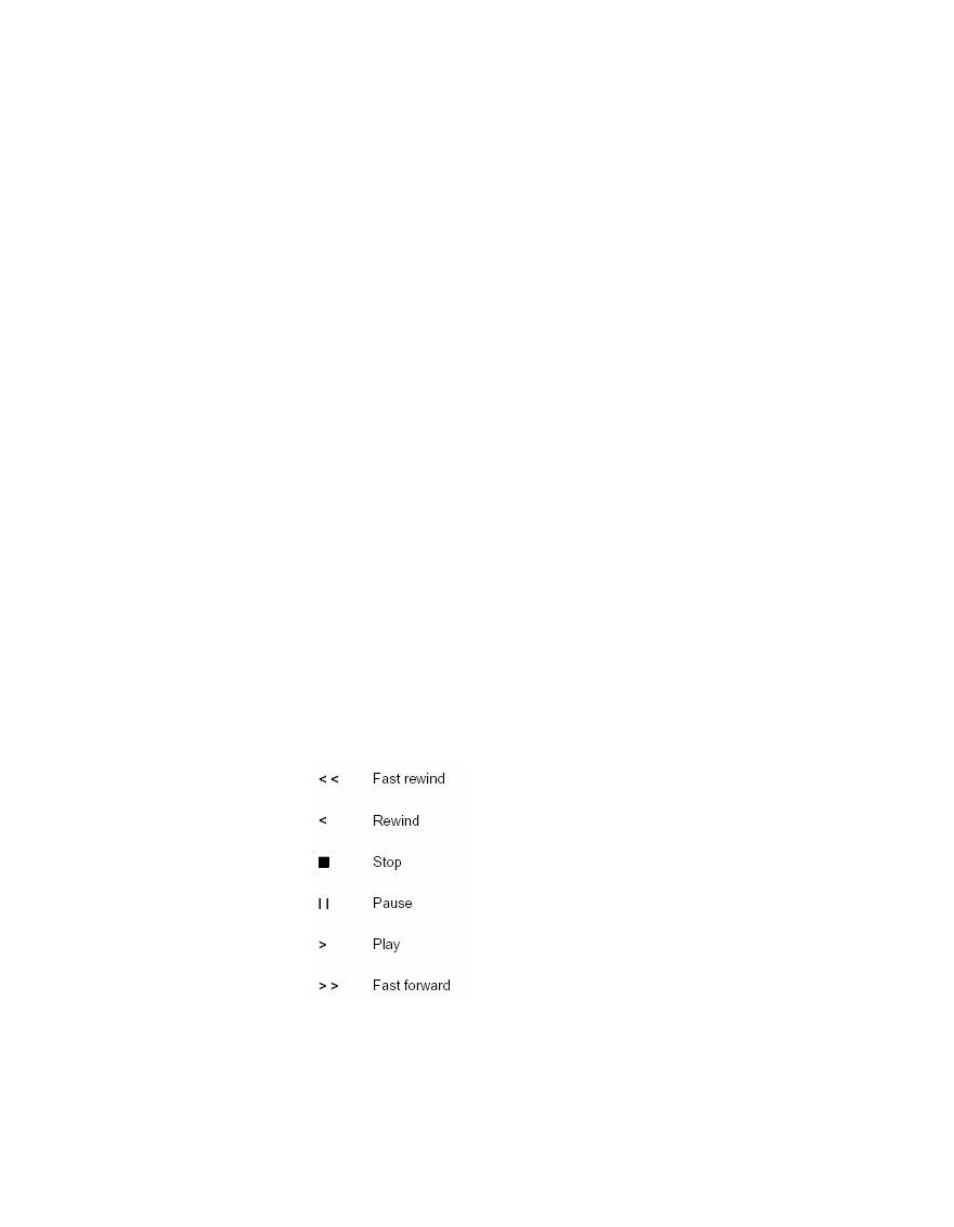

Figure 382. Motion Control Function Buttons
OK / Digits
For details refer to the
