Kayak — User Manual 291
DPM Menus
Drop Shadow
The Drop Shadow feature is turned on with the Drop Shadow button. When
turned on, soft knob controls become available on the right. Different soft
knob controls appear, depending on which data pad has been selected in
that pane. The current parameter names and values are displayed on each
data pad.

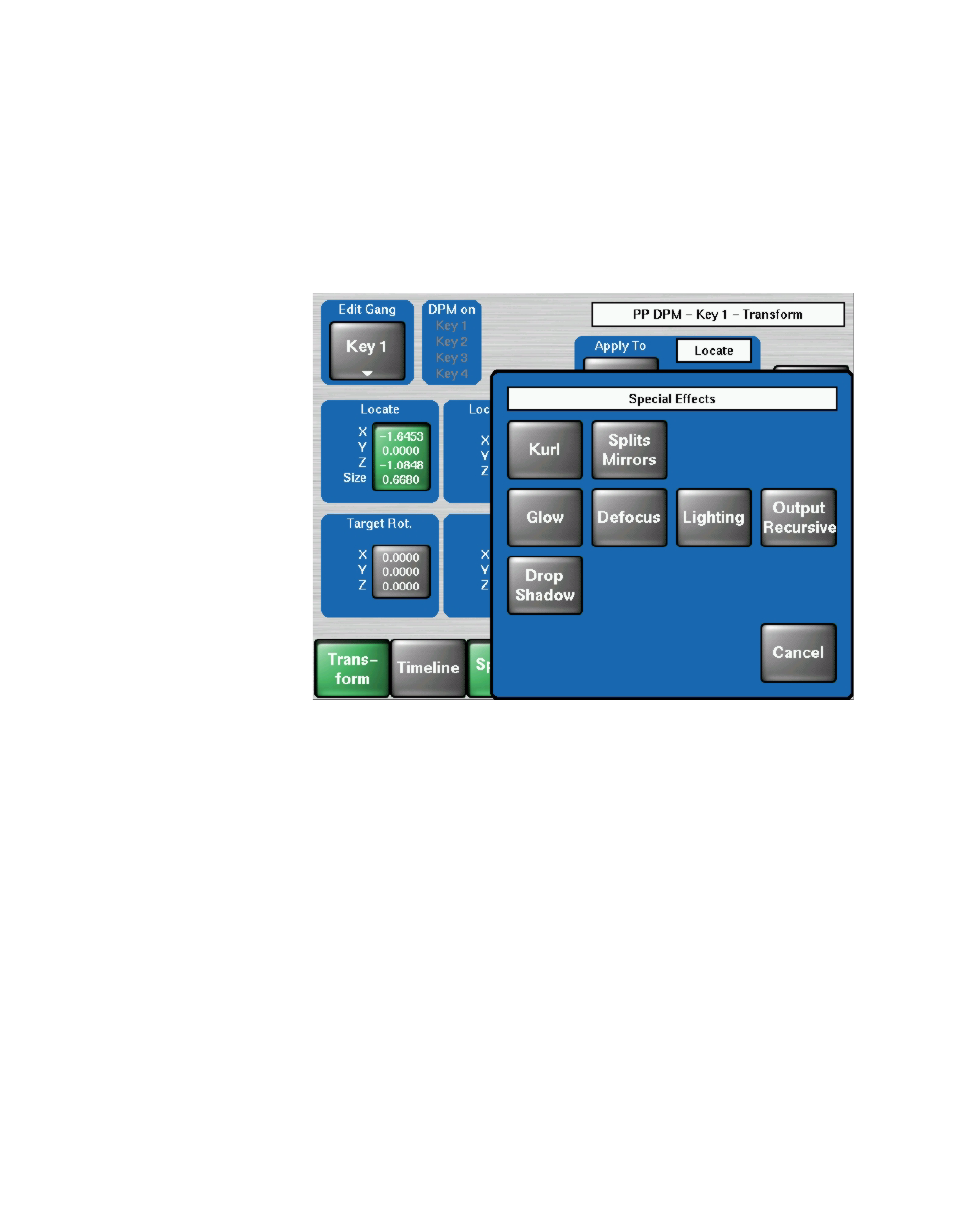

Figure 218. DPM – SpecFX– Drop Shadow 1
When Shadow is selected soft knobs for X Offset, Y Offset, Size , and Opacity are
available ( Figure 218 ).
When Shadow Color is selected soft knobs for Hue, Saturation , and Brightness are
available.
