116 Kayak — User Manual
Section 3 — Control Panels
Effects Subpanel

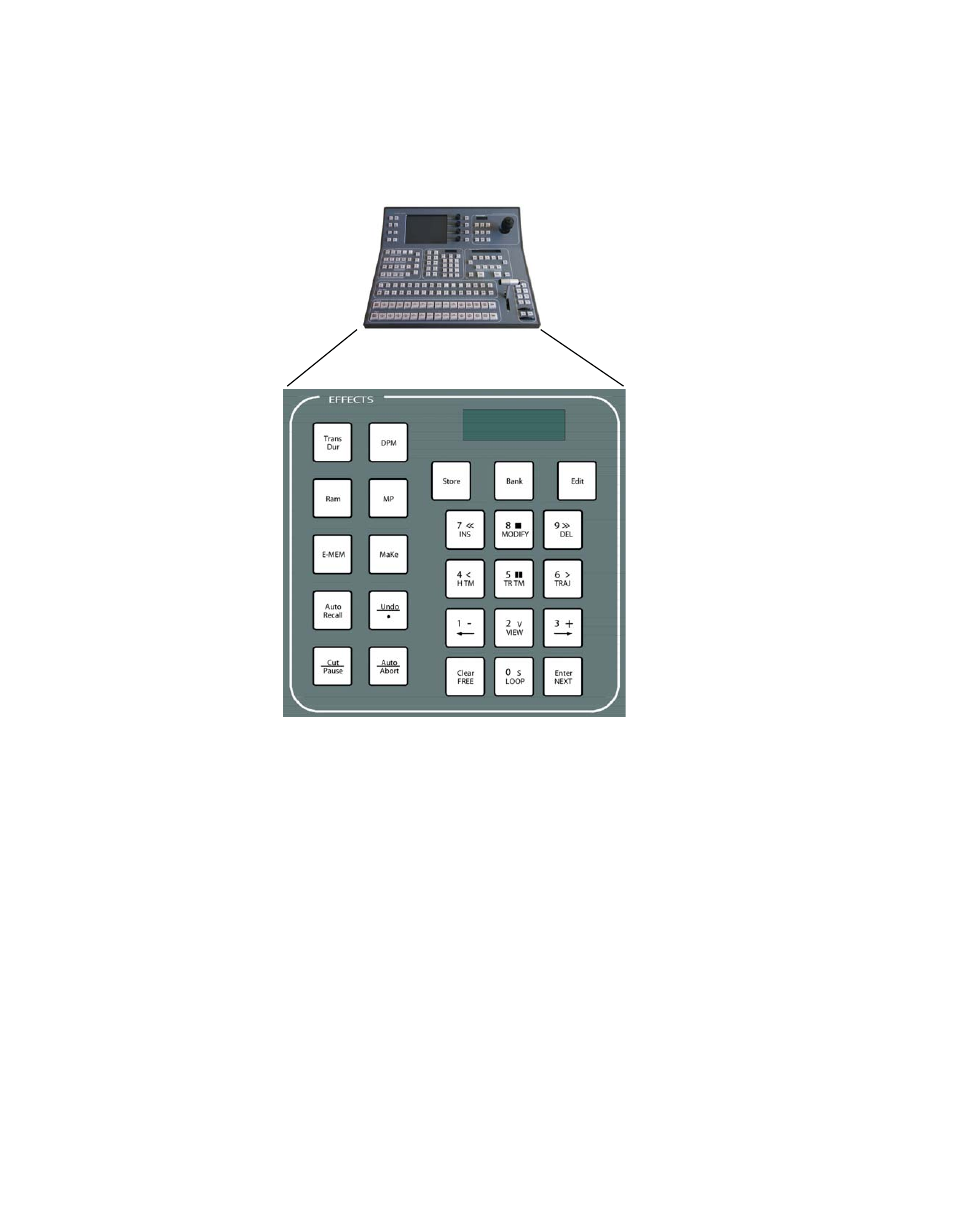

Figure 71. Subpanel Effects (KayakDD Mode)
The Effects Subpanel is a multi purpose section of the control panel.
The Trans Dur button is a special button, which is also used in the Transition
Subpanel to set the transition rates for keyer and background transitions.
Hold down the Trans Dur button and press the Auto button or the Key1 Mix –
Key4 Mix buttons to set the selected transition rates. Enter the time with the
keypad and confirm the entry by pressing the Enter button.
To perform the different tasks, the Effects Subpanel has 5 Delegation buttons:
DPM Store, edit, recall DPM effects
Ram Store, recall RAM Recorder stills, play RAM Recorder clips
MP External machine control
E-MEM Store, edit, recall E-MEM registers
MaKe Record, play macros
8447_22
r0
Example: Kayak HD-1
