Kayak — User Manual 503
Installation Menus
Ext AUX Index Card
Index card for selecting and modifying the external AUX parameters.

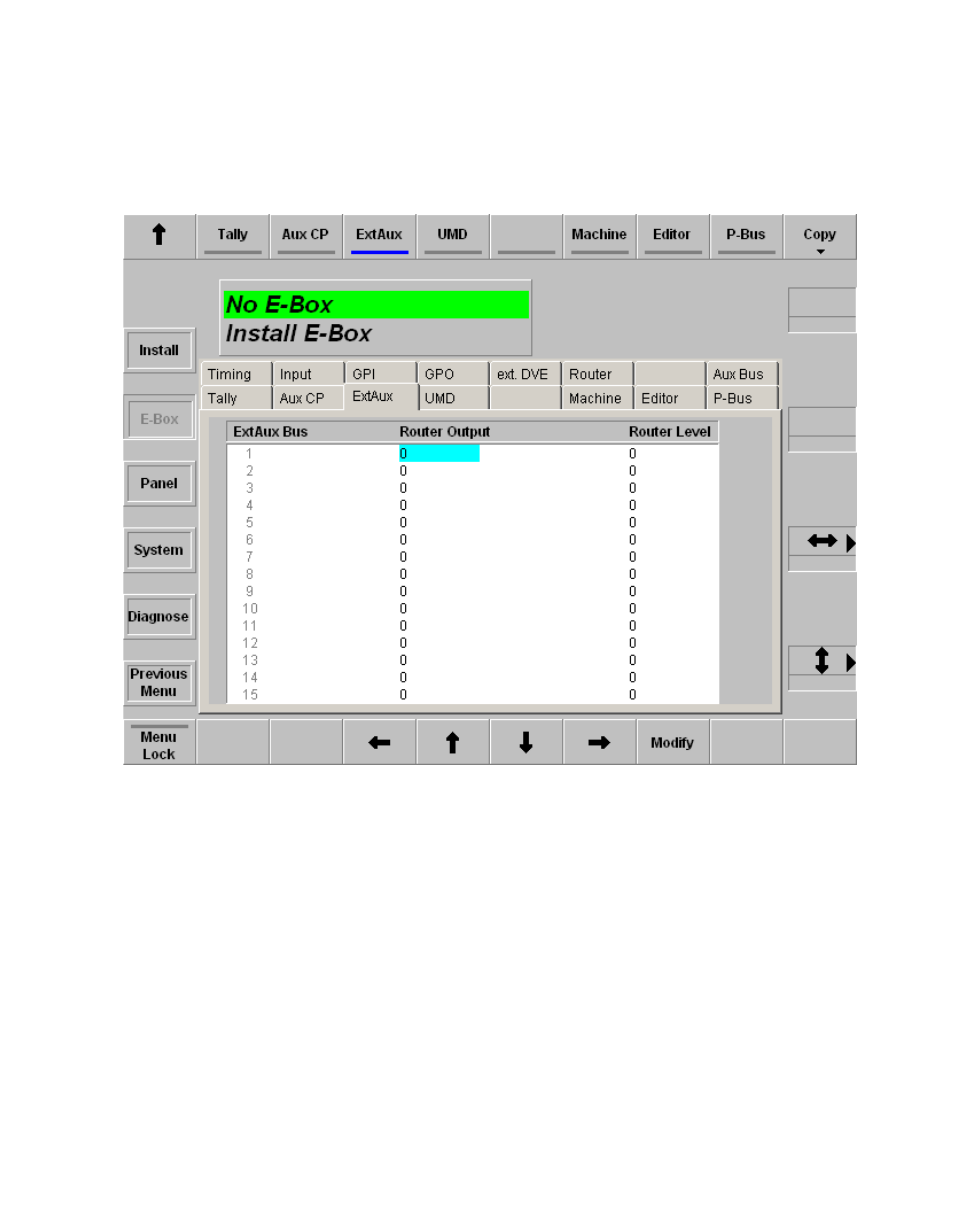

Figure 415. Sidepanel – Index Card Ext AUX
The card enables the ability to select a special output at a defined level of
the router.
Example:
If you select in the column Router Output the number 6 and in the column
Router Level the number 1 then it corresponds to the specification that
External AUX Bus 1 is connected with the router output 6 at level 1. The
number of the levels and router outputs depends of the router control pro-
tocol.
