396 Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
Figure 316 shows a bar graph in Digit View mode. The bar graph contains
the numerical value and the unit of the parameter. A mouse click into this
field enables numeric entry via a keyboard connected to the panel.

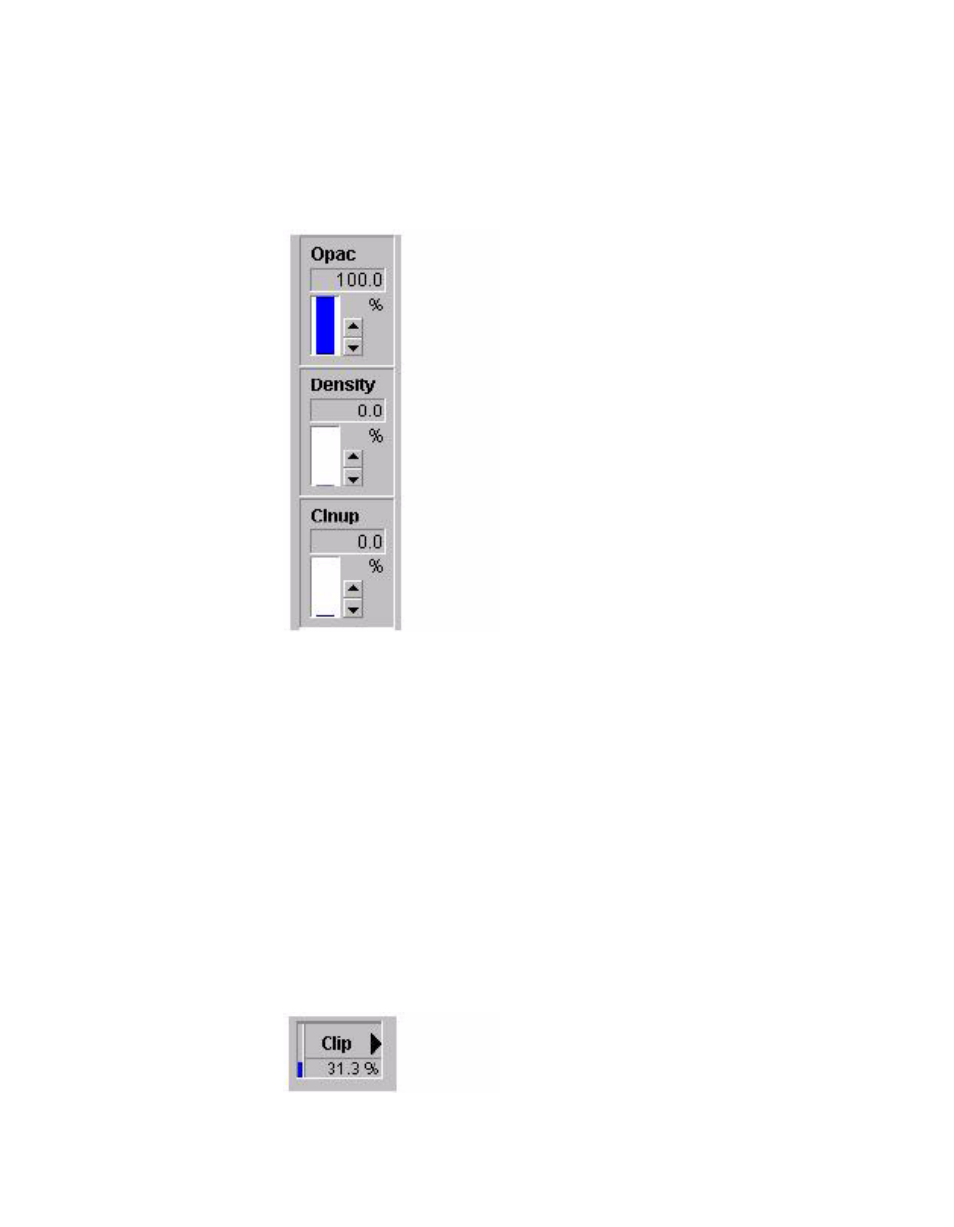

Figure 316. Opacity Density Clnup Bar Graph in Digit View Mode
Digipot Designator
A digipot designator is a control element which is used to describe the
digipot function. It is represented in the digipot area on the right side, in
each case in the height of the pertinent digipot. The inscription changes if
another group is selected.
A numeric digipot designator has a small bar to give an overview of range
and actual position of the value. This bar cannot be operated with the
mouse, but you can enter the numeric value via the keyboard.
If the user turns the digipot slowly, it works in a linear mode. This means
that the number of increments is proportional to the rotated speed of the
digipot. If the user turns the digipot fast, the function will be nonlinear (e.g.
quadratic).
Figure 317. Clip Display
