Kayak — User Manual 367
P-Bus Menus
This new feature allows operators to decide whether or not and how to
input names that are copied between switchers.
• with config (application) data or
• with installation (environment) data.
Note In the previous software version, the source name could only be configured
using the Config/E-Box/Input menu.

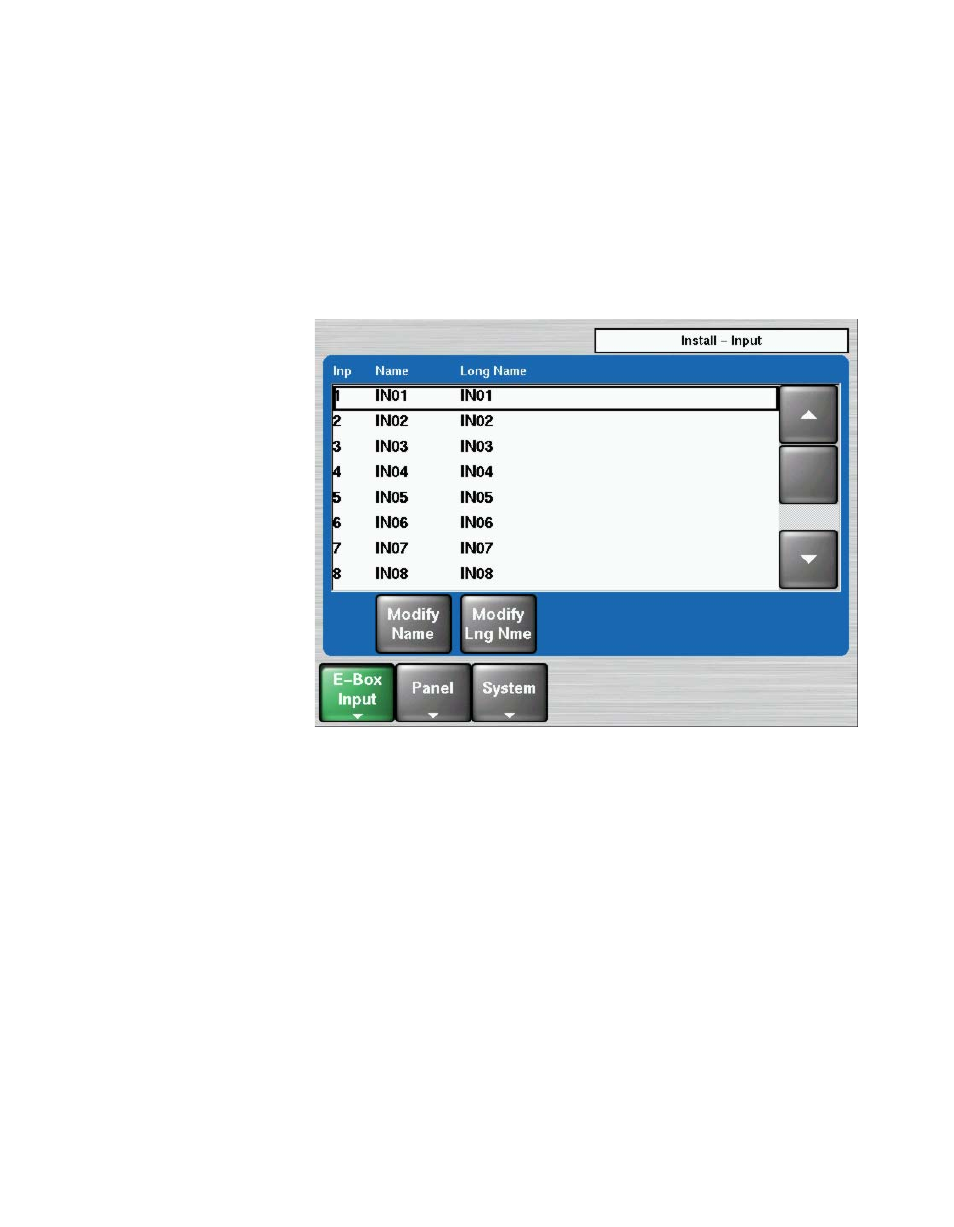

Figure 293. Install E-Box Input Menu
Use Modify Name and Modify Lng Name button to configure the desired sources
names. After pressing the Modify button, an alphanumerical key pad
appears.
Usage Rules
1. As long as a video input name is defined in the Config/E-Box/Input menu,
it can be used throughout the system (Panel displays, Sidepanel menus,
etc.). This is consistent with previous software releases.
2. If an input name is not defined in Config/E-Box/Input menu (the default
after software installation) the system uses the input name entered in
the
Install/E-Box/Input menu.
3. The source of the input name is a 'per-input' setting. A mixed operation
is possible.
