Grass Valley Kayak HD v.6.9.3 - Manual (Page 454)

454 Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
• When the listbox is opened, the cursor can be set with the mouse or the
digipot to other objects in the timeline. The listbox then shows the state
of the current selected object.
• Double-clicking an object with the mouse opens the listbox just the
same as the button
Modify Current .
Mark
This button enables selection of a range in the timeline. If a range is
selected, the
Modify All button changes its display to Modify Range . All modi-
fications are performed in the selected range only.
Insert
Insert an object in a timeline. For details see below.

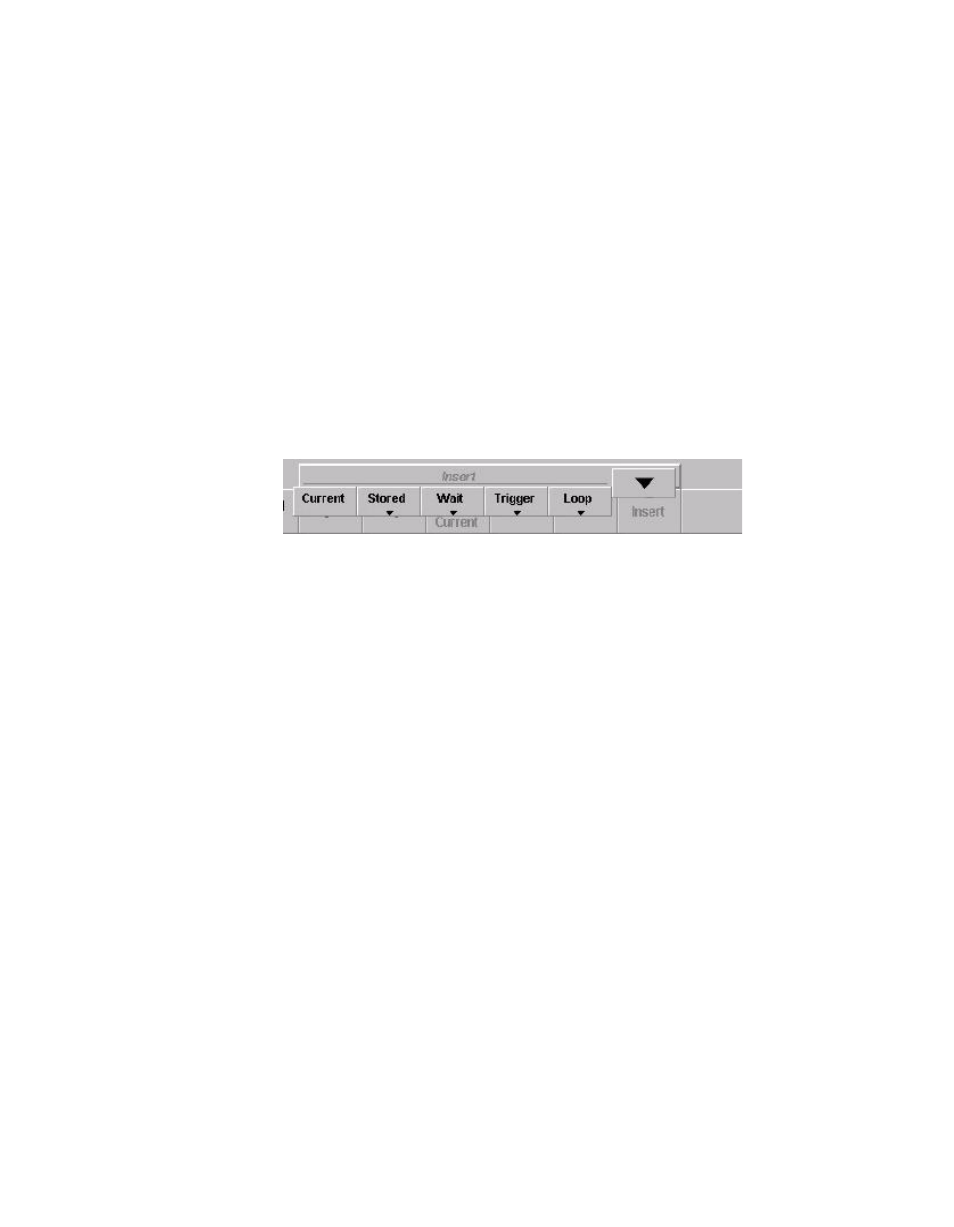

Figure 371. Insert Function Button
Note To insert a PBus Trigger/Register: Under Insert > Trigger >
PBus , a Trigger PBus command or a PBus Register command can be
inserted into the timeline.
PBus Trigger:
The listbox represents the machines and the meaning of the trigger for the
machines.
The first line in the listbox shows the numeric value of the trigger. All
machines get the same trigger whose meaning, however, can be different
for the individual machines. If the trigger is changed for one machine, in
general, the display of the other machines is also changed as well as the
numeric value of the trigger.
Current: Insert a keyframe with the actual settings
Stored: Insert a stored Snapshot or Sequence. Enter the desired number.
Wait: Insert a wait object GPI, User, TOD, Hold.
Trigger: Insert a trigger object GPO, DVE, Machine, Memo, MaKE, PBus.
Loop: Insert a loop object Begin, End
