Menu Overview
Introduction
The Kayak Menu panel provides capabilities that complement the opera-
tion of the Main panel. The Menu panel controls most system functions,
and has additional controls not available on the Main panel (for example,
wipe pattern selection, chroma key manual controls, and configuration
menus). During live production the operator spends most of his time
working directly on the Main panel. The Menu panel is used extensively for
setup and effects creation.
A second way of full control is the Sidepanel program. The Sidepanel
program can run on a computer with Windows 95 or higher.
Menu Panel Description
The Menu panel has a touch screen display and four soft knobs on the right.
The Menu subpanel on the left allows easy navigation in the menu three.

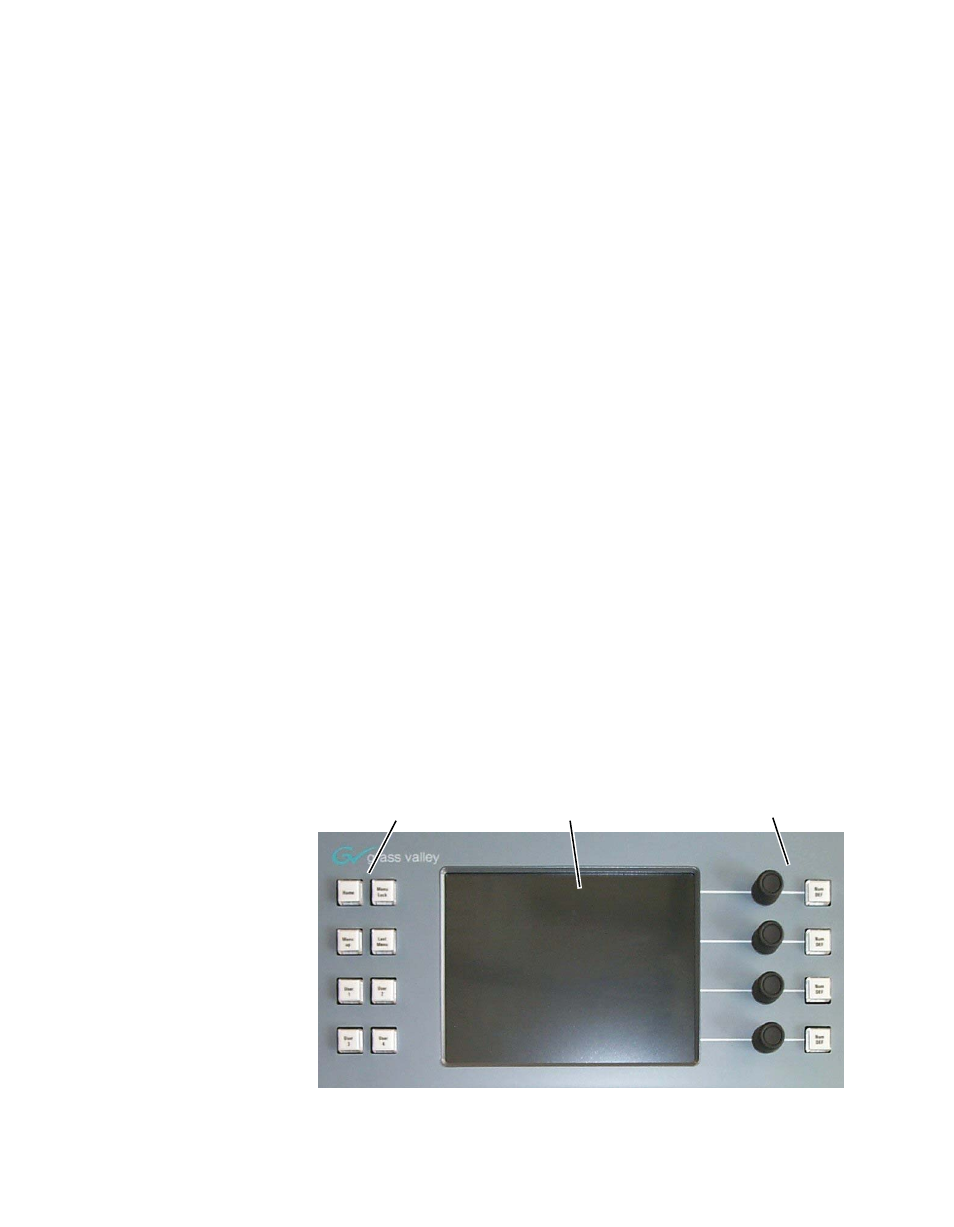

Figure 78. Touch Screen Display
Digipots and
Menu Buttons
Touchscreen
Display
Menu Navigation
Buttons
8447_28
