Kayak — User Manual 581
Configuration Menus
Attachment Display:
If a macro is attached to a button in a certain section (e.g. AUX row, M/E1
row) this section is displayed with a yellow background. The buttons with
attached macros are displayed in red.
To see the details of the attachment, move the cursor to the corresponding
button (or click on it) to open the “info popup window”. Here you will see
for which delegations and which pages pre– and/or post–macros are
attached with the name and the number of the macro.

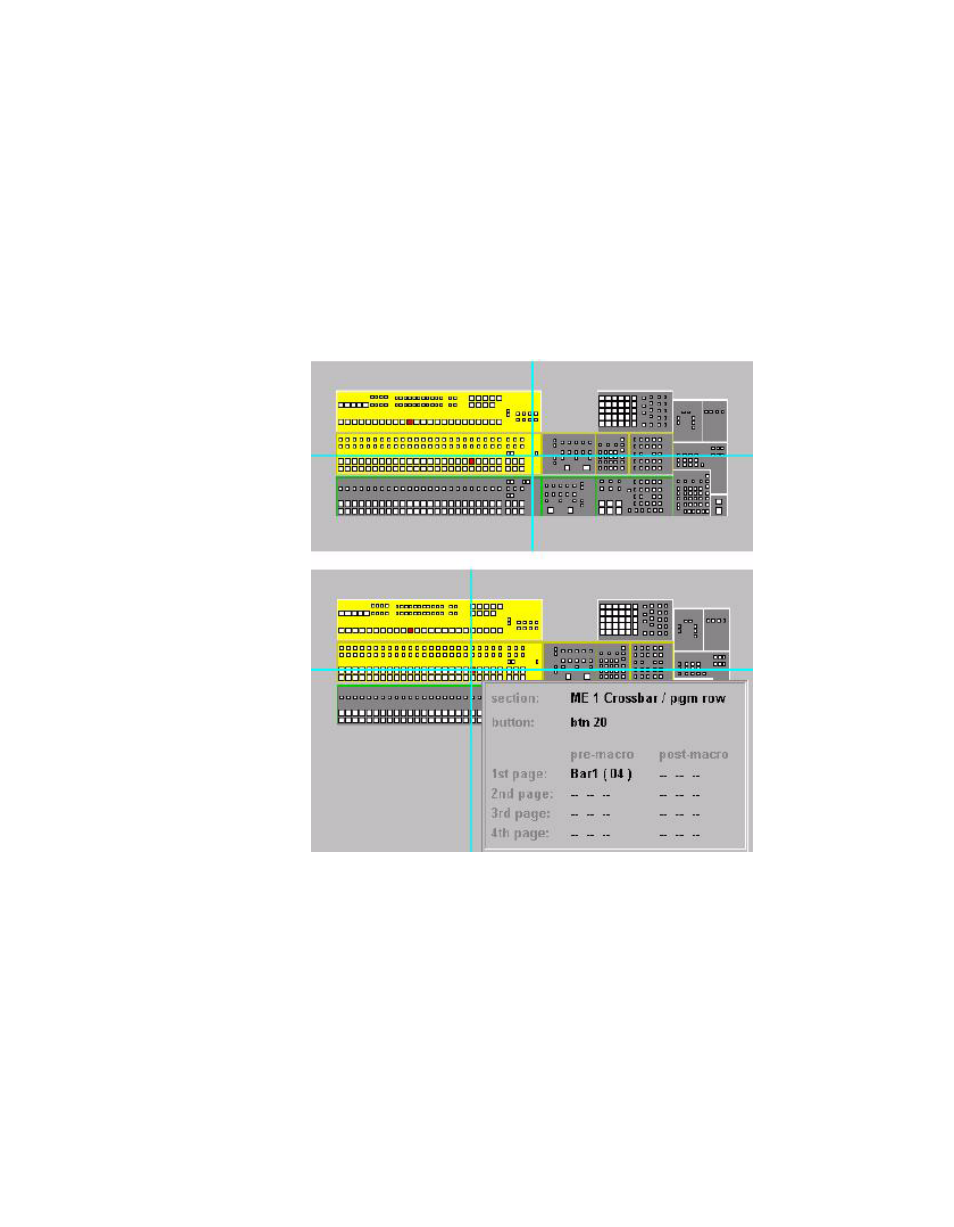

Figure 485. Sidepanel – Attachment Display (Example: XtenDD/DD35 panel type)
