The Install E-Box / P-Bus (Peripheral Bus) menu defines the machines which
can be controlled via an RS422 bus. In the left list box of the P-Bus index
card, these machines can be provided with a name and can be activated or
deactivated.

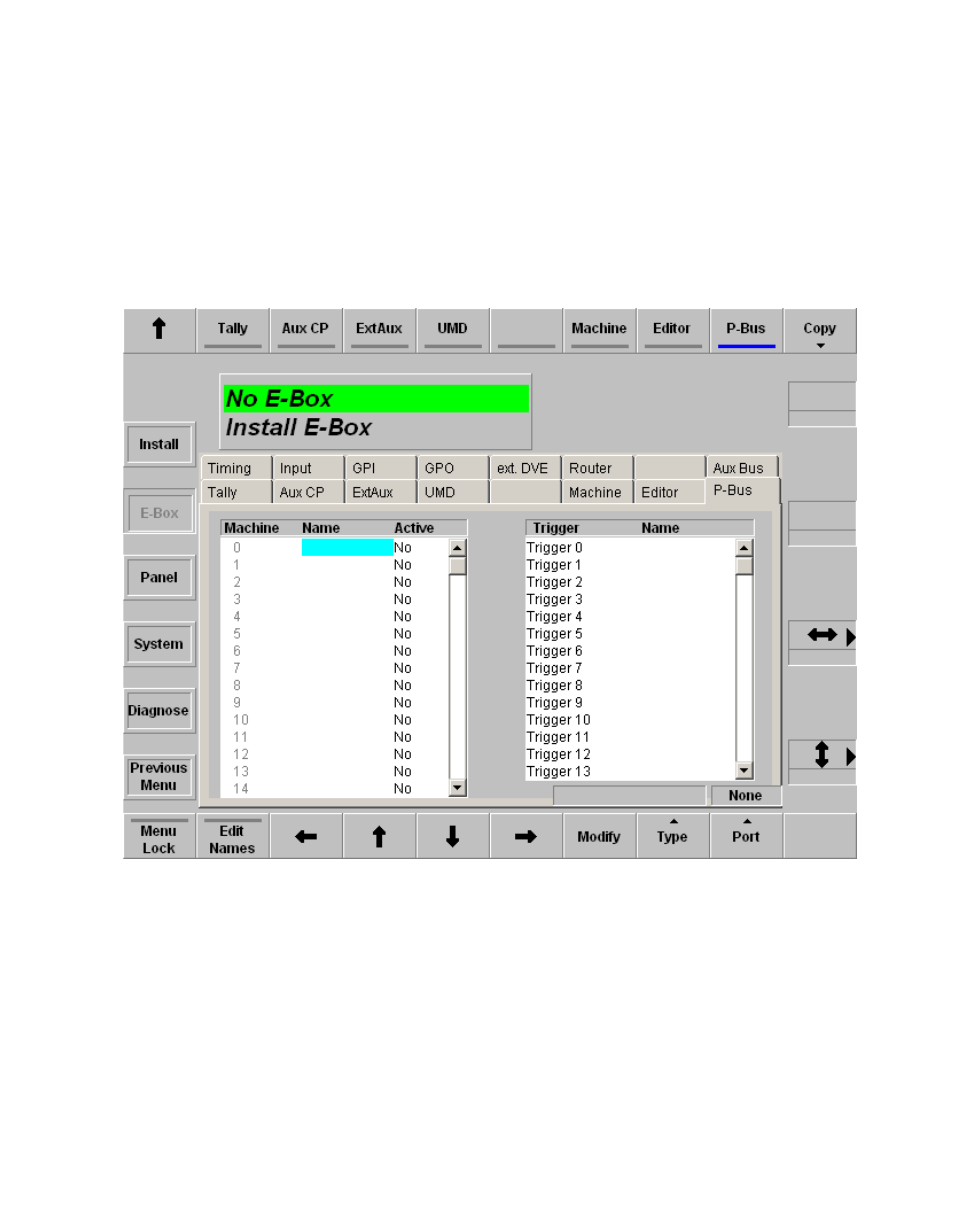

Figure 419. Sidepanel – Index Card P-Bus
The right list box enables to provide for each of these machines the trigger
events with function names (e.g. PLAY, SHUTTLE). For each machine there
are the trigger from 0 ... 15 which can be assigned each to other function.
The name can be selected from a list of default names which provides spe-
cific names for this application.
The list of trigger names consist of a fixed-programmed part and a freely
definable part. The freely definable part – 16 names – can be adjusted in the
sub-dialog Edit Names.
