Grass Valley Kayak HD v.6.9.3 - Manual (Page 439)

Kayak — User Manual 439
RAM Recorder Menus
Select Destination Format
Activating the Convert button opens a dialog window for the detail adjust-
ments. The following picture formats can be converted among each other:

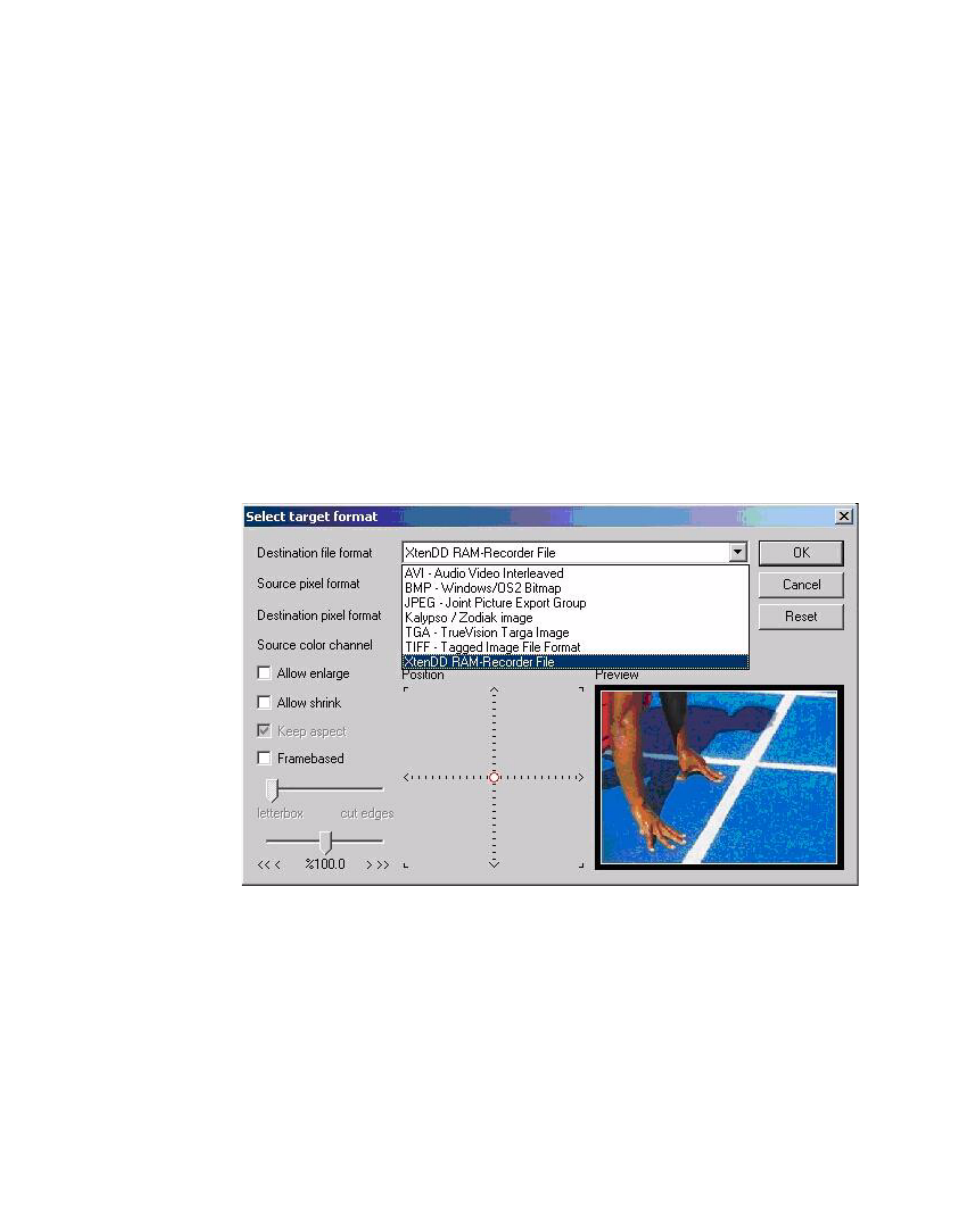

Figure 358. RAM Recorder – Image Converter – Select Target Format
Output File Name:
The name of the exit file has to be entered in a dialog box. The file extension
is added automatically depending on destination pixel format. In general,
the entered file name will be enlarged with a three-digit number to gen-
erate different file names if a sequence will be converted to single images.
AVI Audio Video Interleaved
BMP Windows/OS2 Bitmap
JPG Joint Picture Expert Group
TGA TrueVision Targa Image
TIFF Tagged Image File Format
XTENDD RAM Recorder File
