Kayak — User Manual 195
Config Menus
Config Tally In Menu
Figure 119 shows the basic configuration menu for different Tally calcula-
tions methods. In this menu one or more output channels can be activated
for signalling.
• Red Tally - On Air Tally - for source and monitor signalling
• Green Tally - Special On Air Tally - for isolated sources
• Yellow Tally - Look Ahead Tally

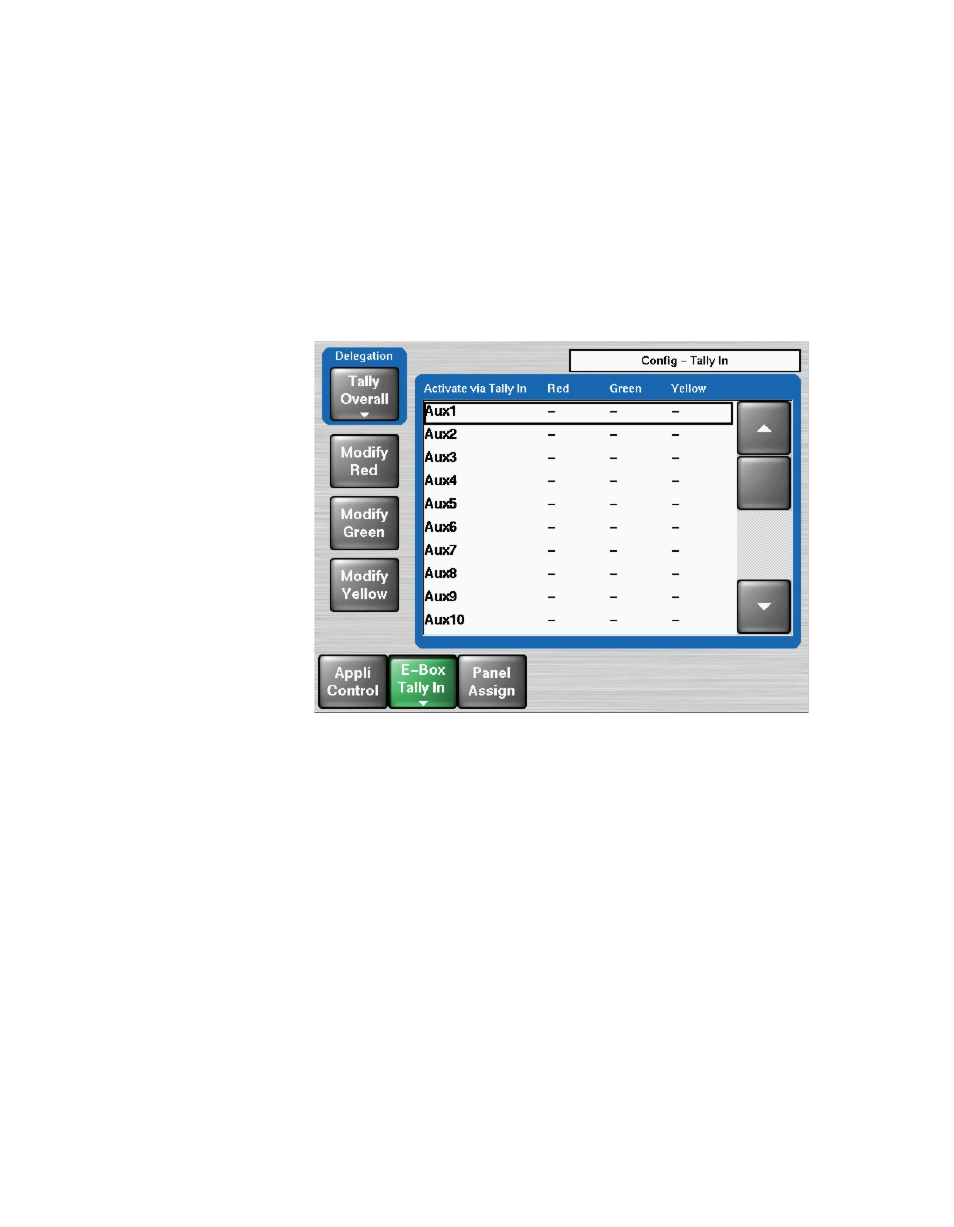

Figure 119. Config - Tally In Menu
With the button in Delegation pane the mode of the tally calculation can be
selected:
Tally Overall : Default
Tally 1..4 : Prepared for multi-applications
Touching the Modify Red / Green / Blue button activates/deactivates a selected
output channel.
