Kayak — User Manual 113
Positioner Subpanel
Positioner Subpanel

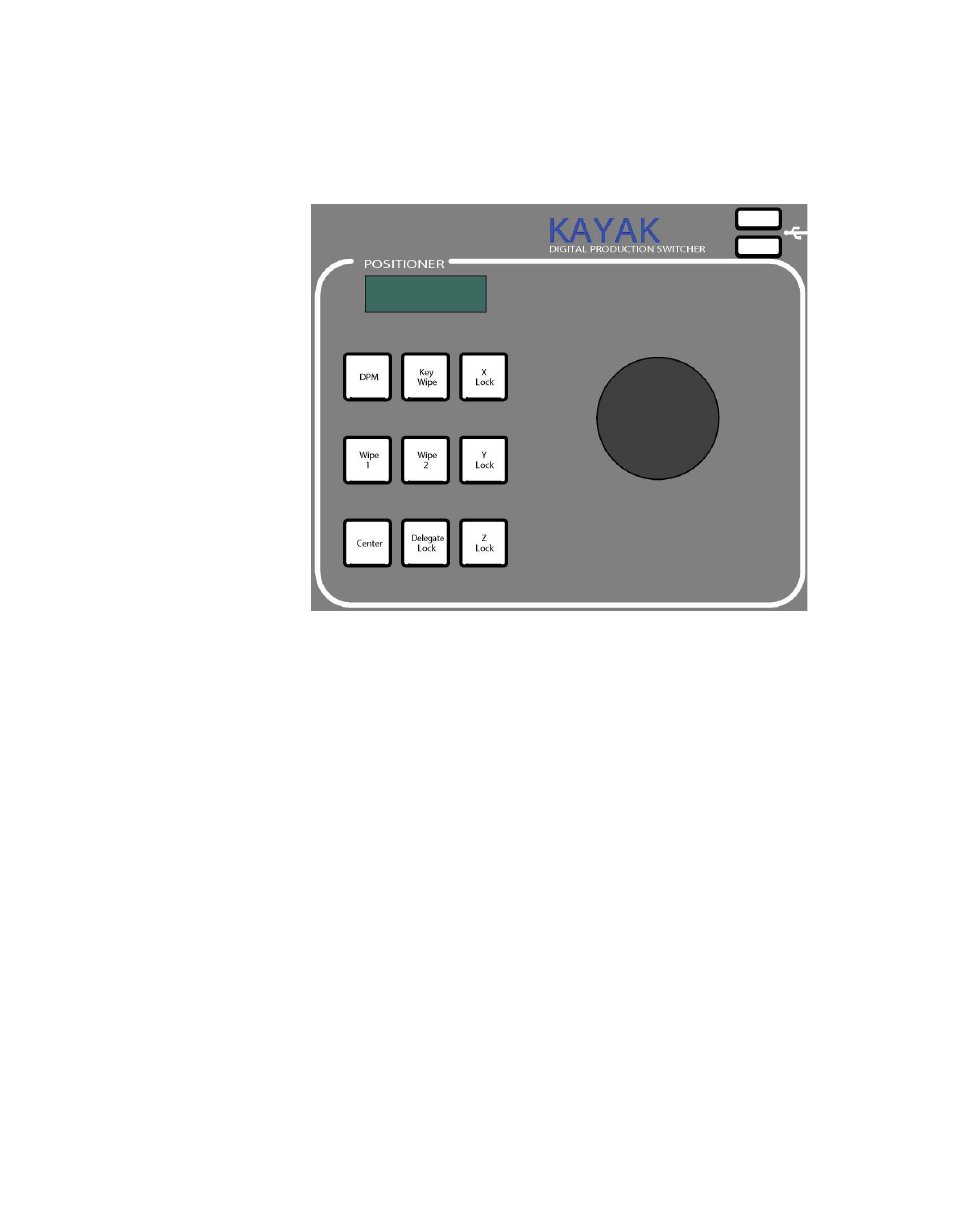

Figure 69. Subpanel Positioner
The Positioner Subpanel is used to control positioner functions of the
Digital Picture Manipulator image and wipe pattern placement, size, angle,
and other attributes in conjunction with the menus for the Digital Picture
Manipulator.
The positioner is particularly suitable for adjusting position and rotation
parameters and can also be used to select a color from an image (for
example, chroma key backing color) using an on-screen cursor.
Operating the positioner subpanel involves delegating a resource and a set
of associated parameters to the positioner. The positioner then provides
control of the delegated parameter values.
