366 Kayak — User Manual
Section 5 — Kayak Menu Summaries
P-Bus Installation
The Install/E-Box/P-Bus menu defines the machines that can be controlled via
an RS422 bus. The machines in the left list box of the P-Bus menu, can be
given a name and activated or deactivated.

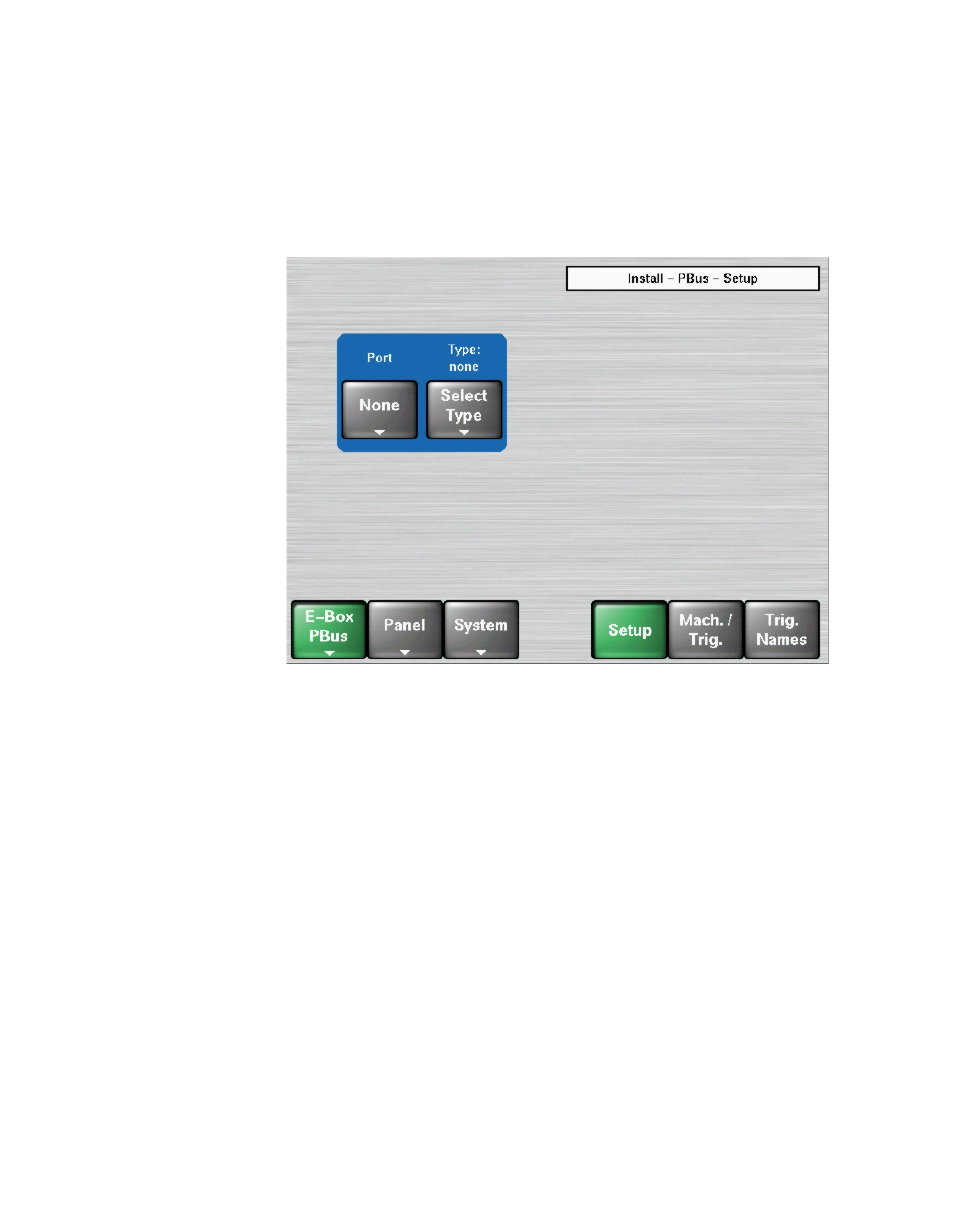

Figure 292. P-Bus Installation Menu
Select the serial port parameters using the Port and Type buttons.
Machine Trigger —The right list box displays the trigger events with function
names for each machine (e.g. PLAY, SHUTTLE). There are 16 triggers (from
0-15), for each machine that can be assigned to each function. The function
names can be selected from a list of default names, specific to this applica-
tion.
Trigger Names —The list of trigger names consist of a fixed-programmed part
and a freely definable part. The freely definable part – 16 names – can be
adjusted in the sub-dialog.
Configuration of Input Names
Video input names (4 and 8 character) can additionally be set as installation
data in
Install/E-Box/Input menu. The default names are IN01,IN02, IN03, ... The
names can be modified by the operator and are stored within the environ-
ment.ini file.
