556 Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
Aux Bus Index Card
Index card for fixed title settings.

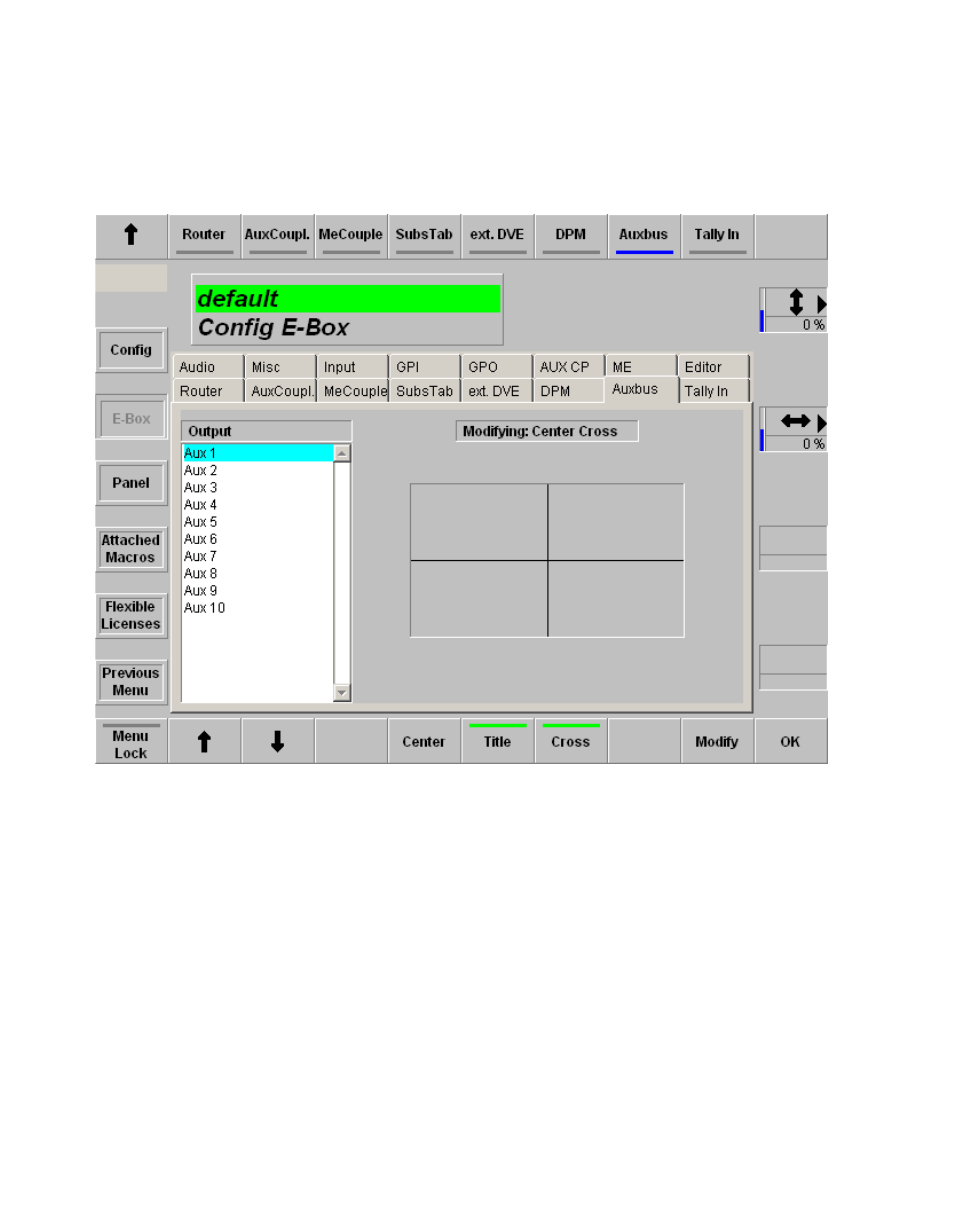

Figure 459. Sidepanel – Index Aux Bus
These adjusting elements enable fading-in different auxiliary lines (Box,
Center Cross) into each individual AUX bus. The fading serve as an auxil-
iary means to mark at productions defined picture areas (e.g. areas for
logos, subtitles, 4:3 raster). The digipots enable to adjust the title box or the
center cross over the complete picture area.
Center: Centers the selected auxiliary line in the picture center
Title: Fades in a rectangular frame
Cross: Fades in a center cross
