550 Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
Router Index Card
Index card for router settings.

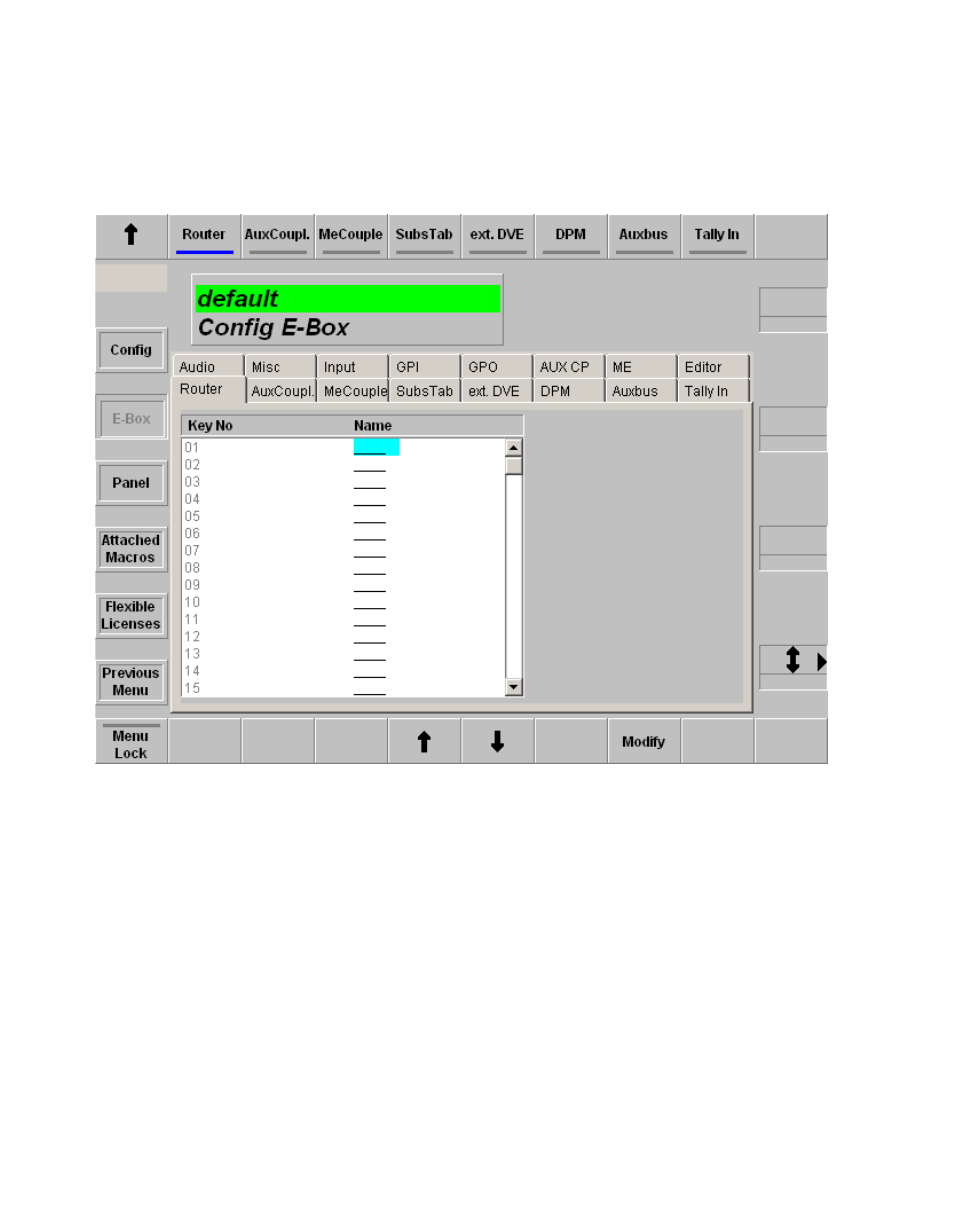

Figure 454. Sidepanel – Index Card Router
For details refer to the Installation and Service Manual.
This index card is to be used if you want to have source names at the
External AUX Bus and the router control protocol excludes the name
transfer. E.g. ASCII protocol. The 4digit names occur at the external AUX
bus source and they are fixed for each external AUX bus.
Router control protocols with a name transfer do not need the setting here.
These protocols are able to grab the name from the external control unit,
e.g. Prosan.
