510 Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
AUX CP Index Card
Index card for installing the AUX Control Panels connected to the switcher
control panel. For details refer to the Installation and Service Manual.

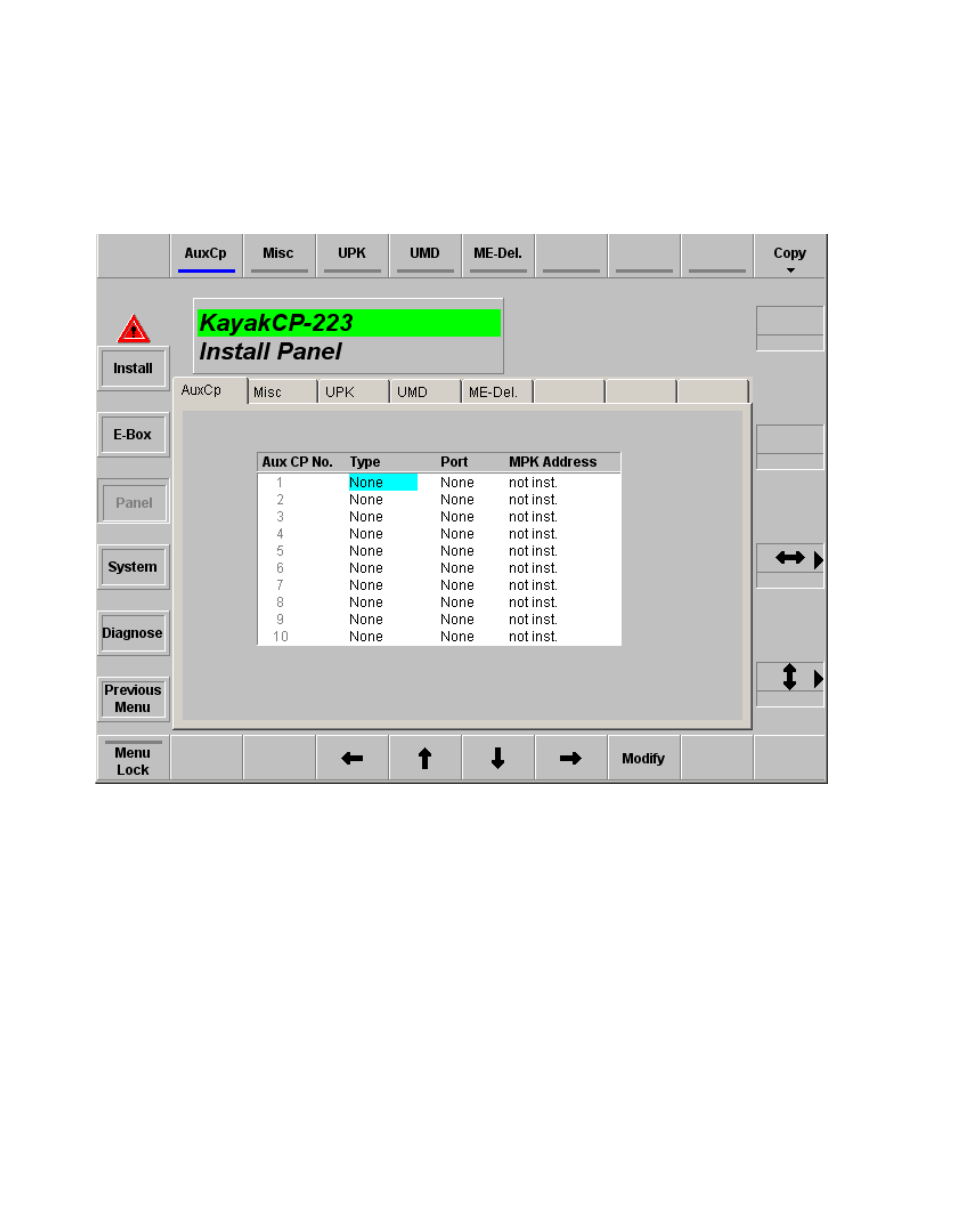

Figure 421. Sidepanel – Index Card AUX CP
Type: Opens a pop-up window with all types of AUX Control
Panels.
Port: Opens a pop-up window with all ports plus ”None” like
in all other menus where a port must be configured.
Note The port must be different to the ports used for DVEs, Edi-
tors, ext. DSKs, and similar devices.
MPK Address: Opens the typewriter pop-up window. The physical
MPK address of the AUX-CP must be entered. Refer to
the label at the rear of the panel modules (e.g. CP-3020:
e0002d43).
