204 Kayak — User Manual
Section 5 — Kayak Menu Summaries
Half M/E Configuration

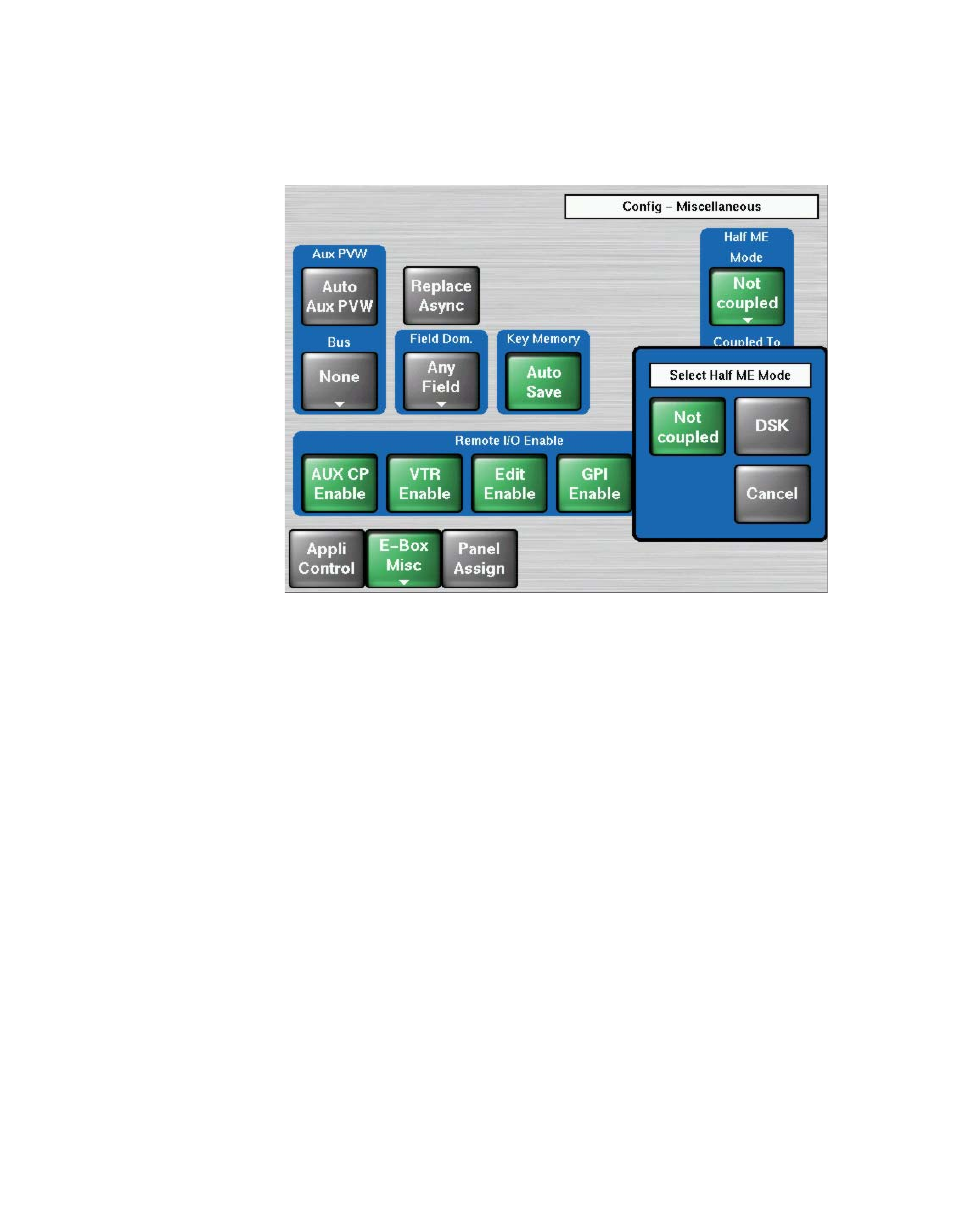

Figure 124. Config – Half M/E - Select Coupled Mode
Use the “Half M/E Mode” button to select the mode, and the “Coupled To”
button to select the full M/E to couple the Half M/E to.
• In Not coupled mode, this button can be used in any panel M/E to del-
egate the panel M/E to the Half M/E. Once delegated, the Half M/E
can be used exactly like any other full M/E.
• In DSK mode, the button works only in panel-M/Es that are delegated
to the M/E that the Half M/E is coupled to. In this case, the panel M/E
is also delegated to the Half M/E, but the background buses of the
crossbar still control the full M/E, because the background buses of the
Half M/E are set fixed to the outputs of the coupled full M/E.
