208 Kayak — User Manual
Section 5 — Kayak Menu Summaries
Panel Assignment
The Panel Assign menu serves to assign the hardware inputs and internal
sources to the source buttons of the Kayak control panel.

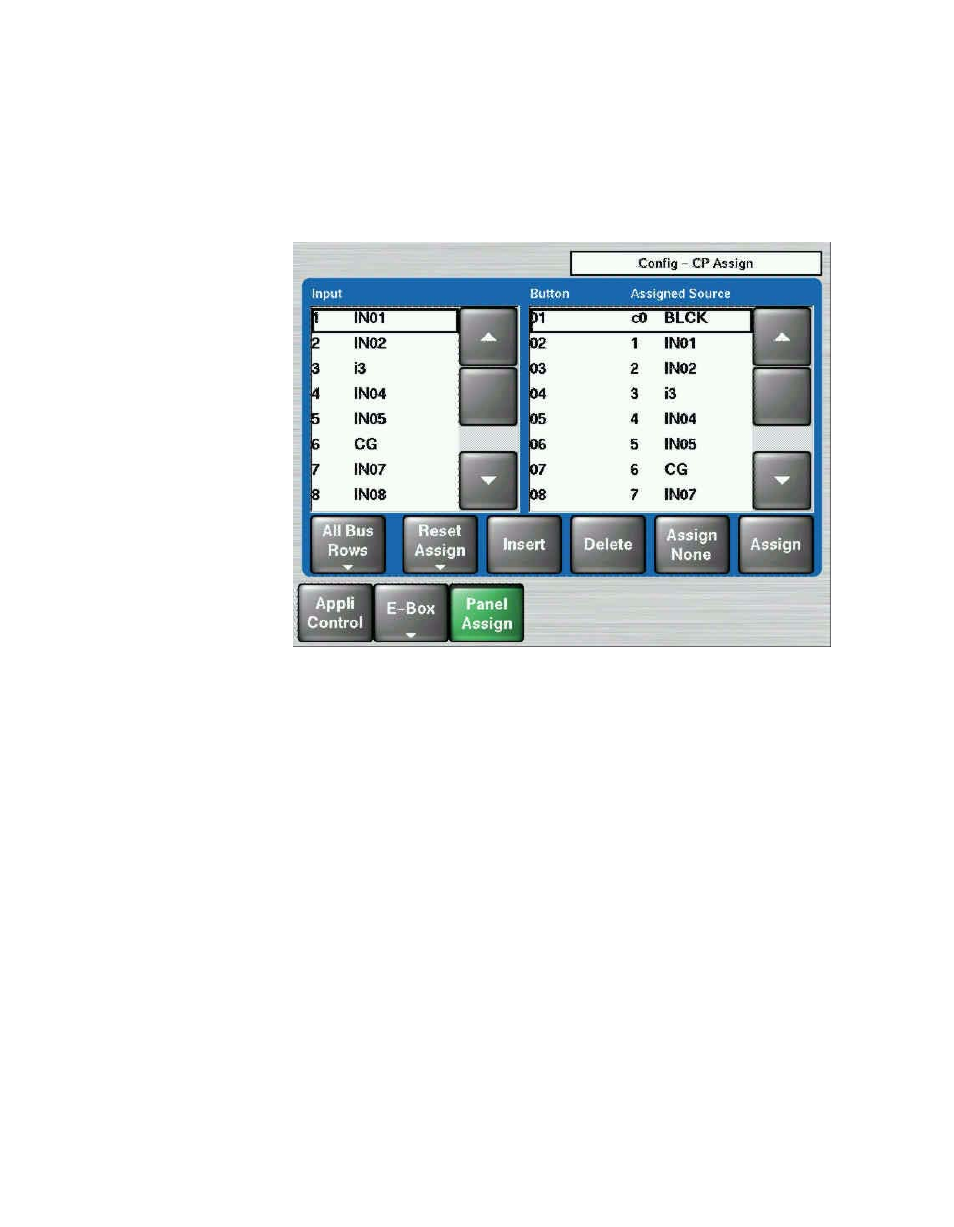

Figure 129. Config – Panel Assign Menu
The legend of the first button on the left ( All Bus Rows in Figure 129 ) indicates
what buses will be affected. Touching this button brings up a menu
allowing you to select the buses to which you wish to make source assign-
ment changes. (
Figure 130 on page 209 ).
