Kayak — User Manual 325
DPM Menus
Active Area Menu
With the Active Area function the storage space of special clips (e.g. logos)
can be reduced to the active picture size.
The idea of the Playout Area/Playout Offset is that you could resize and
reposition a recorded clip.

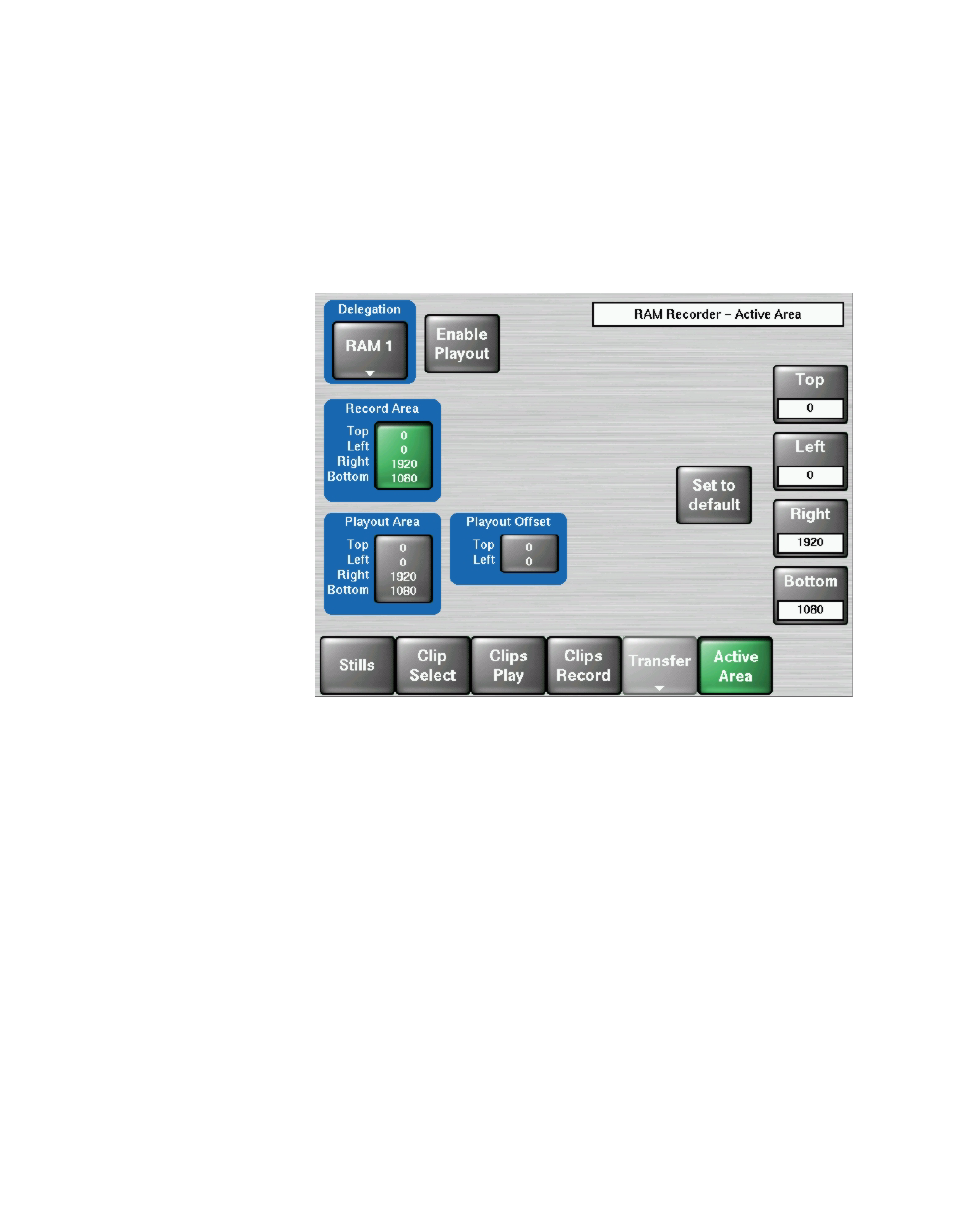

Figure 244. RAM Recorder Active Area Menu
Enable Playout — Position and crop the a stored clip on the screen
Record Area — Crop the area to record
Playout Area — Crop a portion of recorded clip to playback
Playout Offset — Move the cropped clip
Save to Clip — The parameters of the playout clip will be stored in the meta
data storage.
Set to default — Recalls default parameters; if Record Area is active, pressing
the button sets the parameter to full frame. If Playout Area is active,
pressing the button sets the Playout Area to the Record Area values and
resets the Playout Offest values to zero.
