Kayak — User Manual 273
DPM Menus

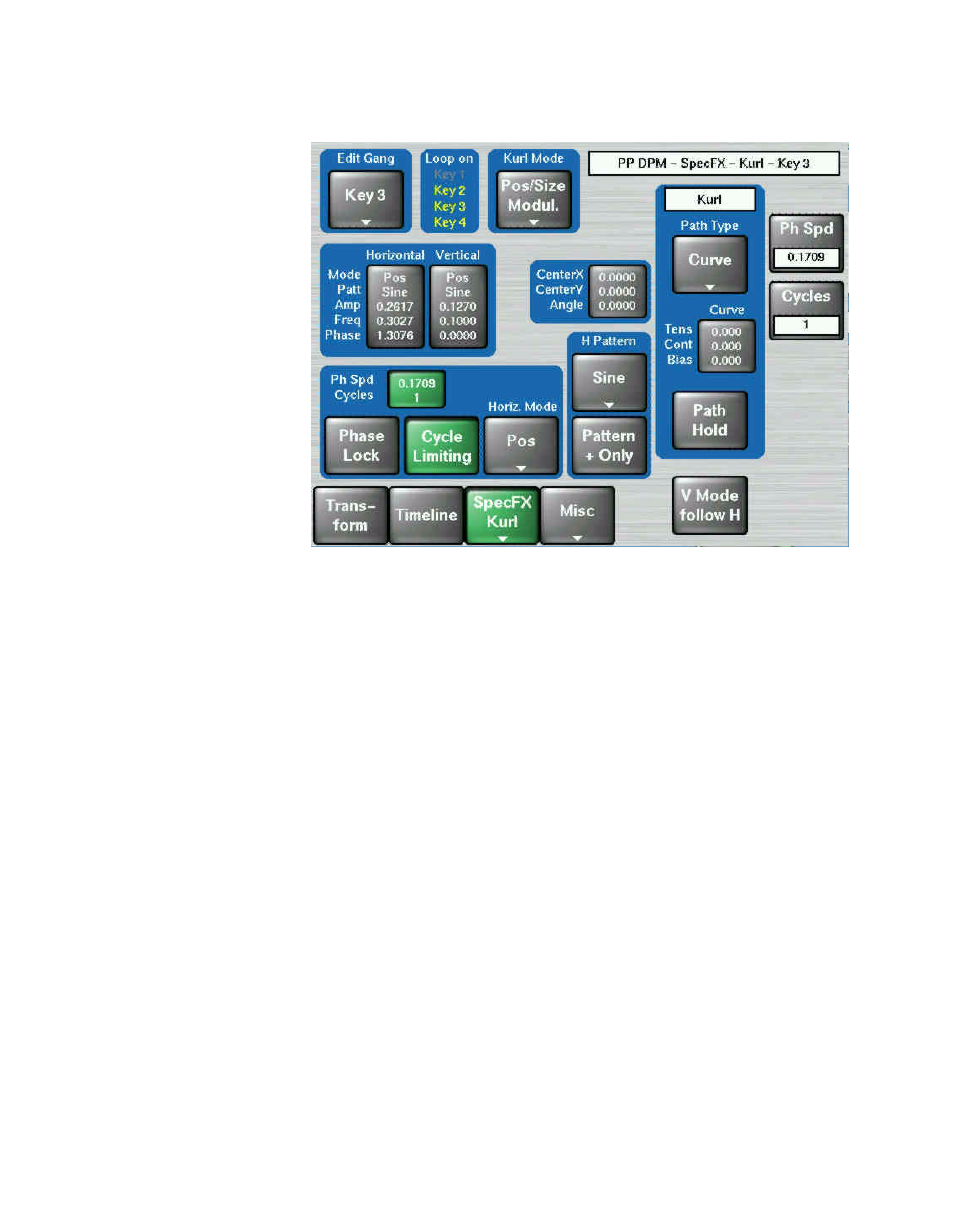

Figure 200. DPM – SpecFx – Kurl Menu (Pos/Size Mode)
Cycle Limiting
The Cycle Limiting Button activates the Cycles soft knob. This control can be
used to limit the number of wave pattern cycles visible.
Note When applying Cycle Limiting, only a portion of the video image may have the
pattern applied.
Pattern + Only
The Pattern + Only Button acts like a rectifier and converts all wave excursions
to positive. Representative resulting wave shapes are shown in Figure 199
on page 272 .
