Kayak — User Manual
Section 5 — Kayak Menu Summaries
Naming Sources
The Name of a source is displayed on the Control panel, and is limited to
four characters. The Long Name of a source appears in configuration
menus, and can be XXX characters.
Touch
Modify Name
or
Modify Lng N
to bring up a keypad to enter that name
for the selected source.
Coupling Keys
Touching the
Modify Cpld Key
button calls a sub-menu. In this menu the Key
to be coupled to the selected fill source can be selected (
).

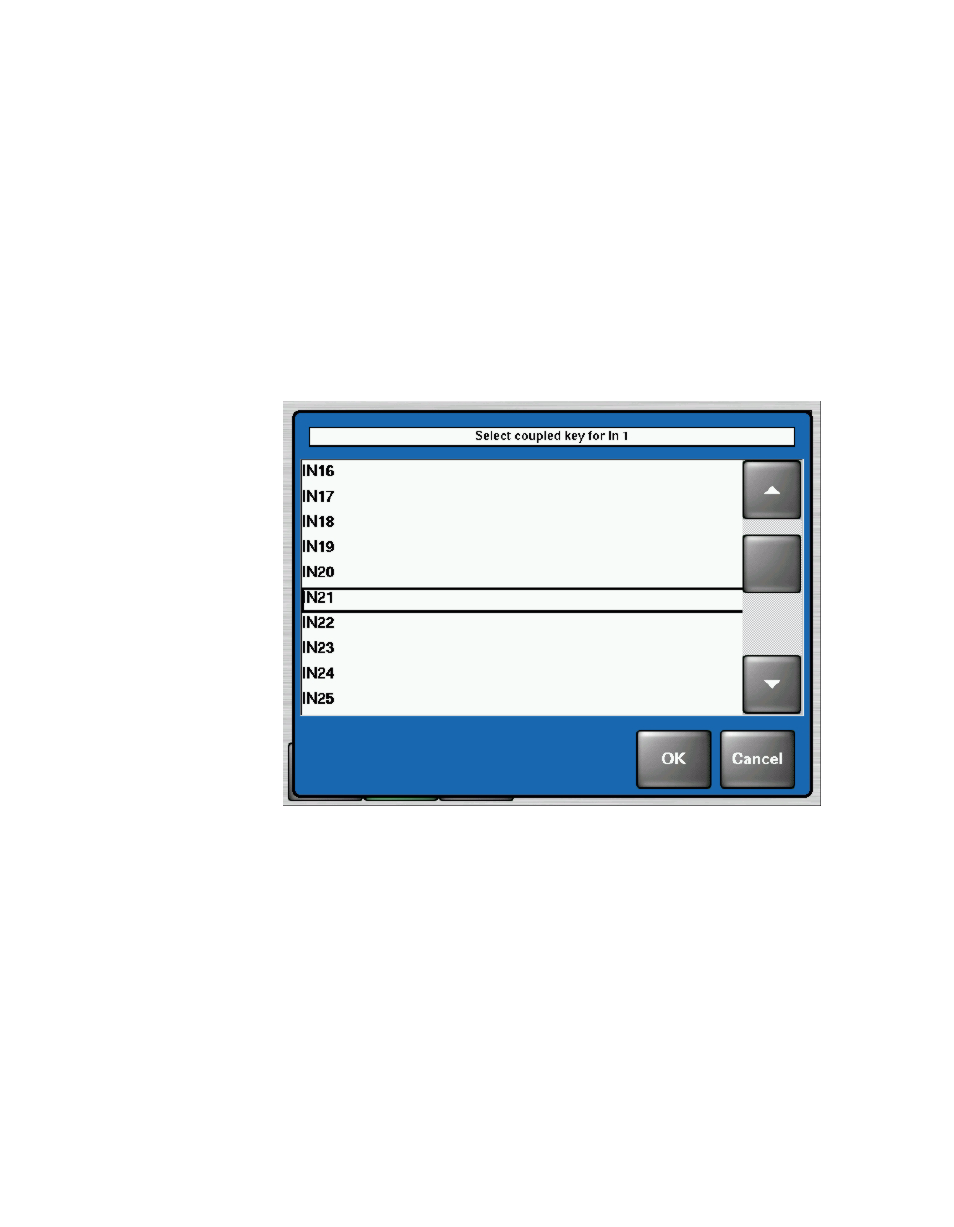

Figure 104. Config - Coupled Key Menu
1.
Select a Fill Source.
2.
Press the
Modify Cpld Key
button.
3.
Select a Key Source.
4.
Press
OK
to finish the selection.
The
Reset All
button on the previous menu (
) brings
up buttons that can be used to reset all the key couplings to White (full
raster key) or to Default (self key using the same source as the fill).
