Kayak — User Manual 533
Configuration Menus
Modify
This button is only enabled if the cursor is set on an entry belonging to the
own application.
Audio Index Card
Index card serves for adjustment of audio switchers via the ESAM2 pro-
tocol.

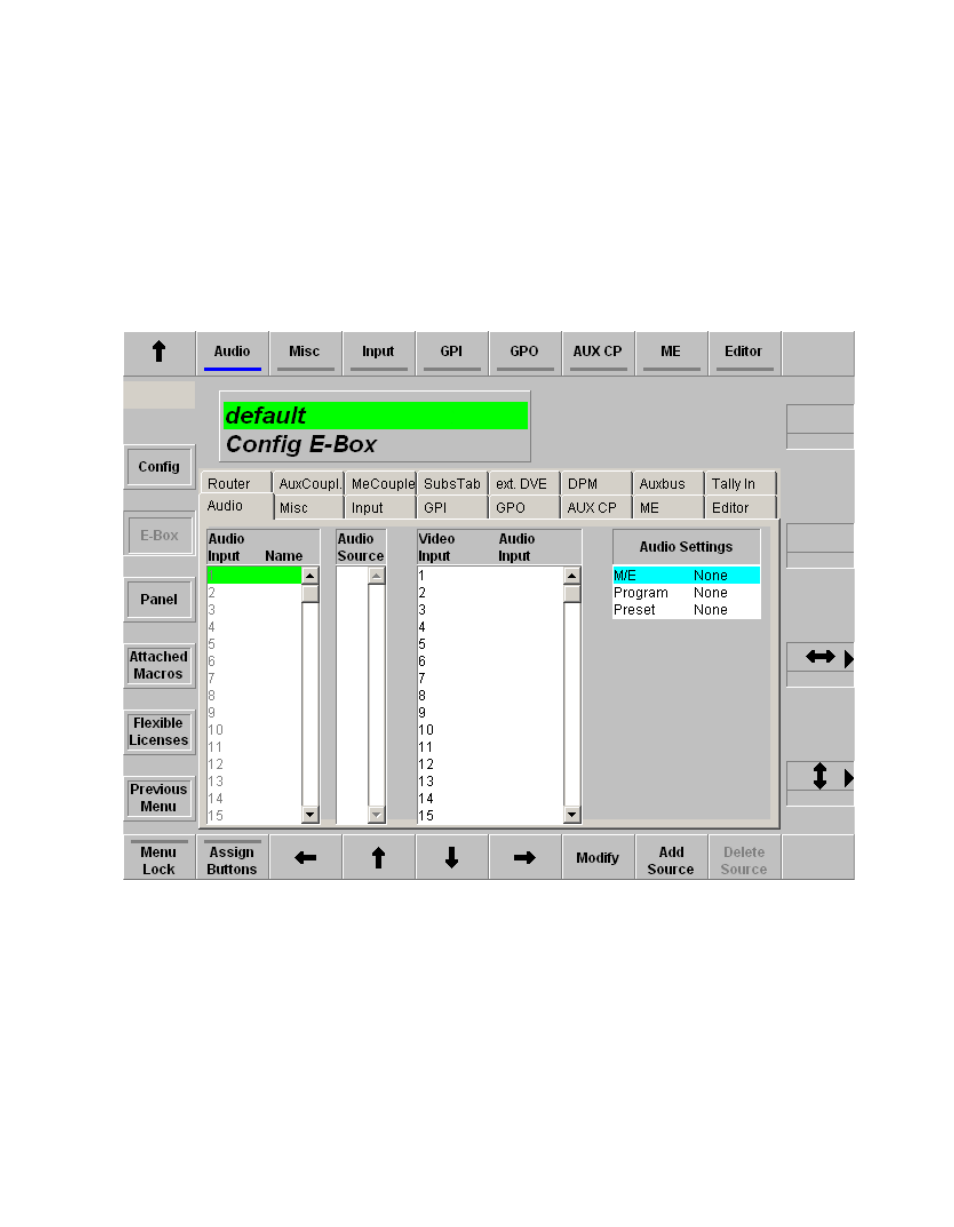

Figure 442. Sidepanel – Index Card Audio
It is possible to define up to 64 internal audio channels. In the left list box,
they are provided with a name. to each of these internal audio channels can
be assigned as many audio channels as you like. They are displayed in the
list box Audio Source.
The buttons Add Source and Delete Source allow you to vary them. The respec-
tive internal audio channel is marked green for this purpose. To each video
input can be assigned an internal audio channel. This is indicated in the
third list box.
