274 Kayak — User Manual
Section 5 — Kayak Menu Summaries
Slits Mode
Slits is an effect in which the source video is split into a number of parallel
slits. The width of the slits may be uniform or random, and an angle may
be specified. An offset function is provided which controls the amount of
displacement of alternating slits in opposite directions (to cause a transition
type effect).
Touch the Slits Kurl Mode button to access the slits controls. When the Modula-
tion data pad is selected the following menu appears.

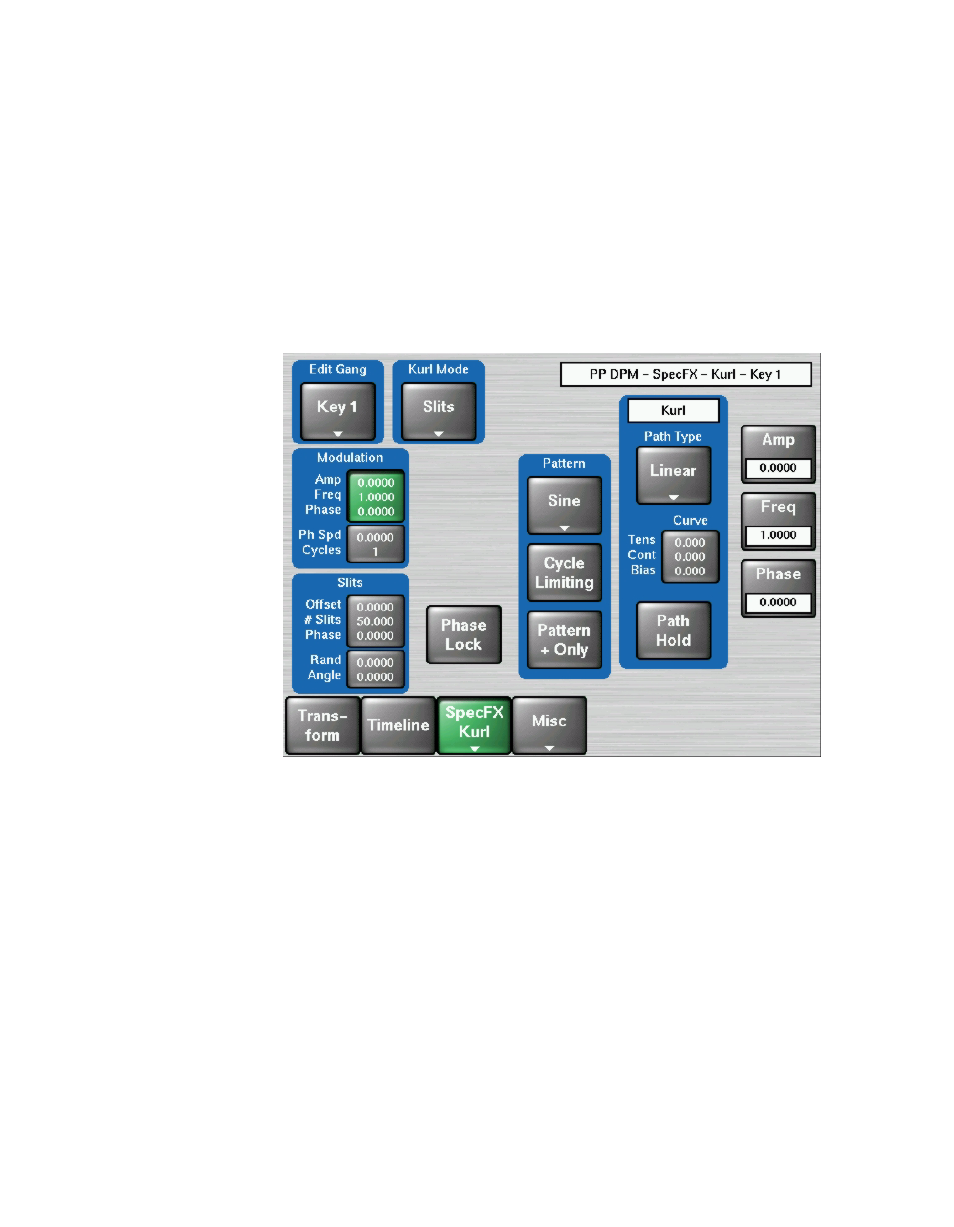

Figure 201. DPM – SpecFx – Kurl Menu (Slits Mode)
The Slits modulation soft knob controls and wave patterns are the same as
the Position/Size mode specified in section
Pos / Size Mode on page 270
When the Slits data pad is selected a menu similar to Figure 193 on page 266
appears.
