Kayak — User Manual 397
Introduction
Selection Box
A selection box is a control that shows a number of elements. All elements
of the group are inside a frame. In the upper frame the name of the group
is shown. One element in the group is always selected. An element has a
name or a bitmap as description.

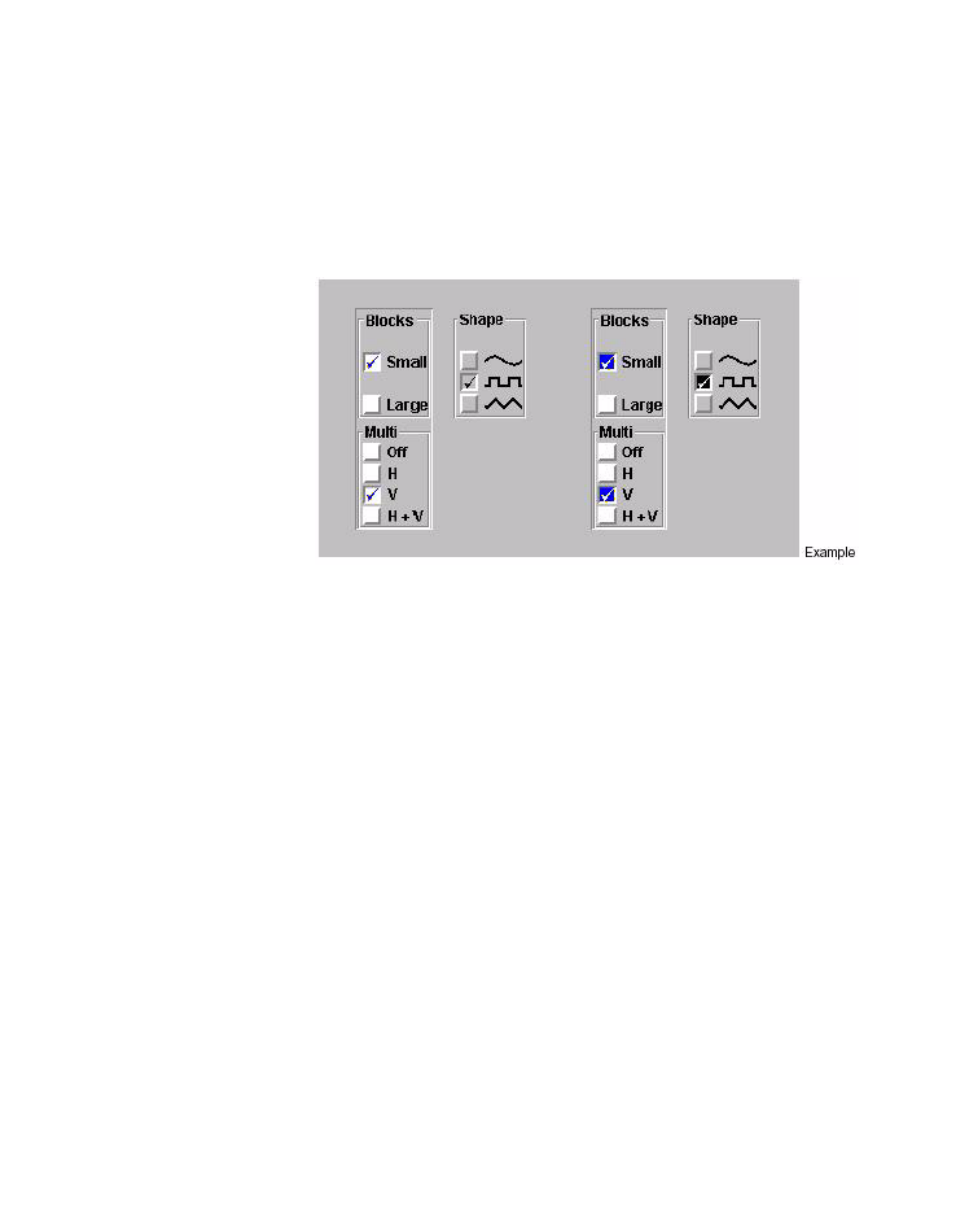

Figure 318. Selection Box
Examples of selection boxes. The left three boxes are the default boxes. The
right three boxes are optional (Personality Setup). Blocks and Multi are del-
egated. The Shape is non-delegated. A selection box can be controlled with
the mouse or with a digipot if the box is delegated. When the user clicks to
an unselected element the element is now selected. With the digipot the
selection can moved up and down.
