Kayak — User Manual 87
3-D Digital Effects Concepts
Converge Mode Example
Sure touch converge mode begins in the same way as parallel mode, but the
effect converges to the absolute end state of the effect over the course of the
effect.
• Effect 2: Starts with the image centered and 30% size. Image is spun off
screen to the right and down
• Keyframe 1: size = 30%
• Keyframe 2: locate X = 8.0, locate Y = -6.0, spin Z = 1.875.

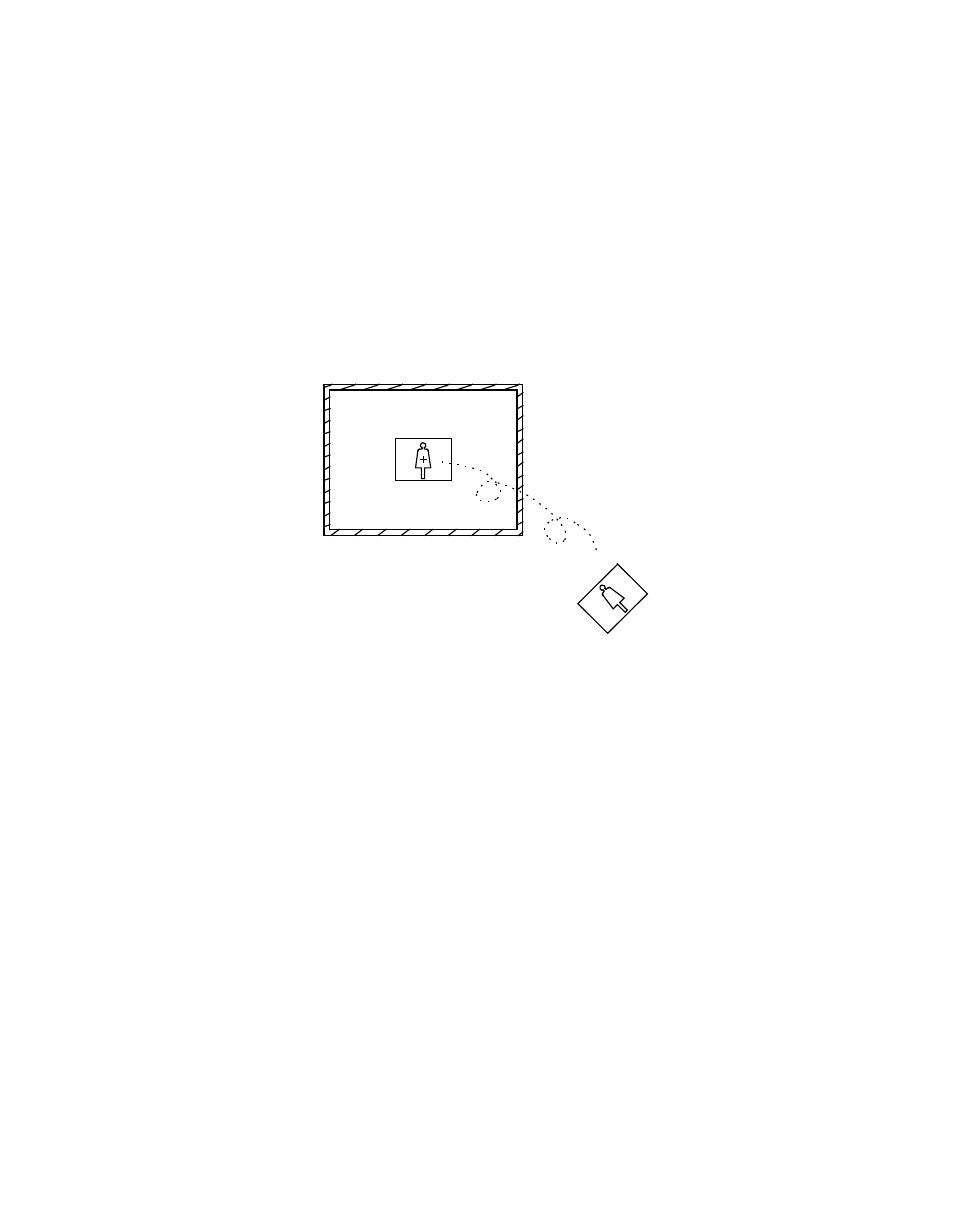

Figure 57. Converge Mode Example
8447_09r0
KF-1
KF-2
