294 Kayak — User Manual
Section 5 — Kayak Menu Summaries
lighting effects would be impossible. For this reason, values that might
cause aliasing are allowed. If a lighting effect creates unwanted results, set-
tings can be adjusted.
The Lighting menu is accessed via DPM , SpecFX , Lighting .

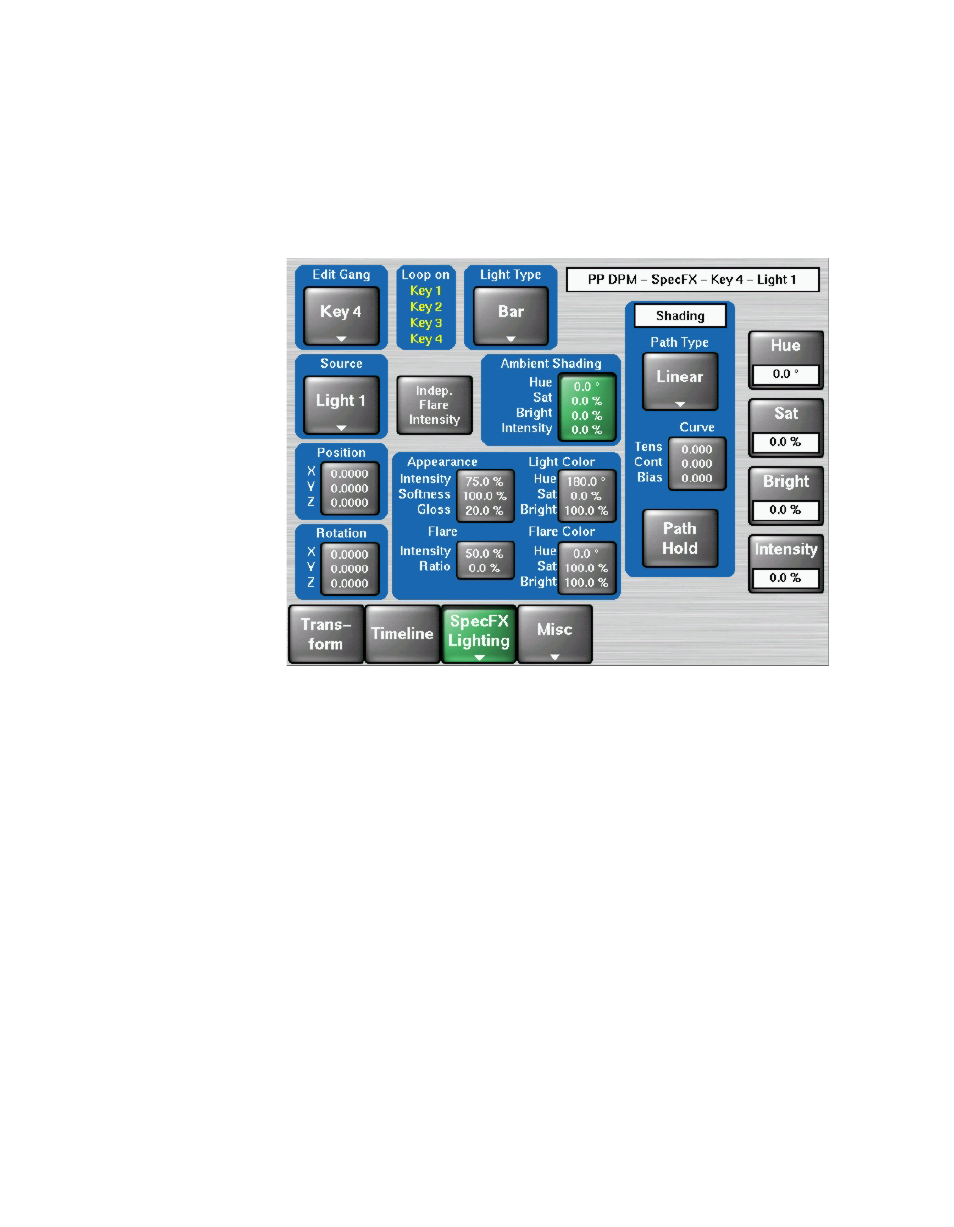

Figure 221. Typical Lighting Menu
Source Pane
The buttons in the Source pane delegate the menu to a particular light
source 1 to 4.
Ambient Shading Pane
The color of the ambient lighting, and the amount of shadow falloff for the
light sources can be controlled by the right handed soft knobs. Soft knobs
for
Hue ( degrees), and Sat , Bright , and Shadow ( percentage) are available when
the Ambient Shading pane is selected.
Light Type Pane
The Light Type pane is used to turn on or off the delegated light source and
provides various other controls of that light source. Soft knobs are activated
when appropriate to control the various lighting parameters.
OFF — Turns off the light source.
