Kayak — User Manual 187
Config Menus
Config - M/E Couple Menu
M/E Couple is used to support an additional transmission line output on
a switcher whose main parts are identical to that of its main output, but
differs in country specific video components (source and/or keyer substi-
tution). Those source replacements can be defined with substitution tables.
E-MEM recalls are used to set all - master and coupled M/Es into an initial
state depending on the next effect. According to the meaning of the effect
the transition module then works correct with CUT, AUTO and the fader
commands.

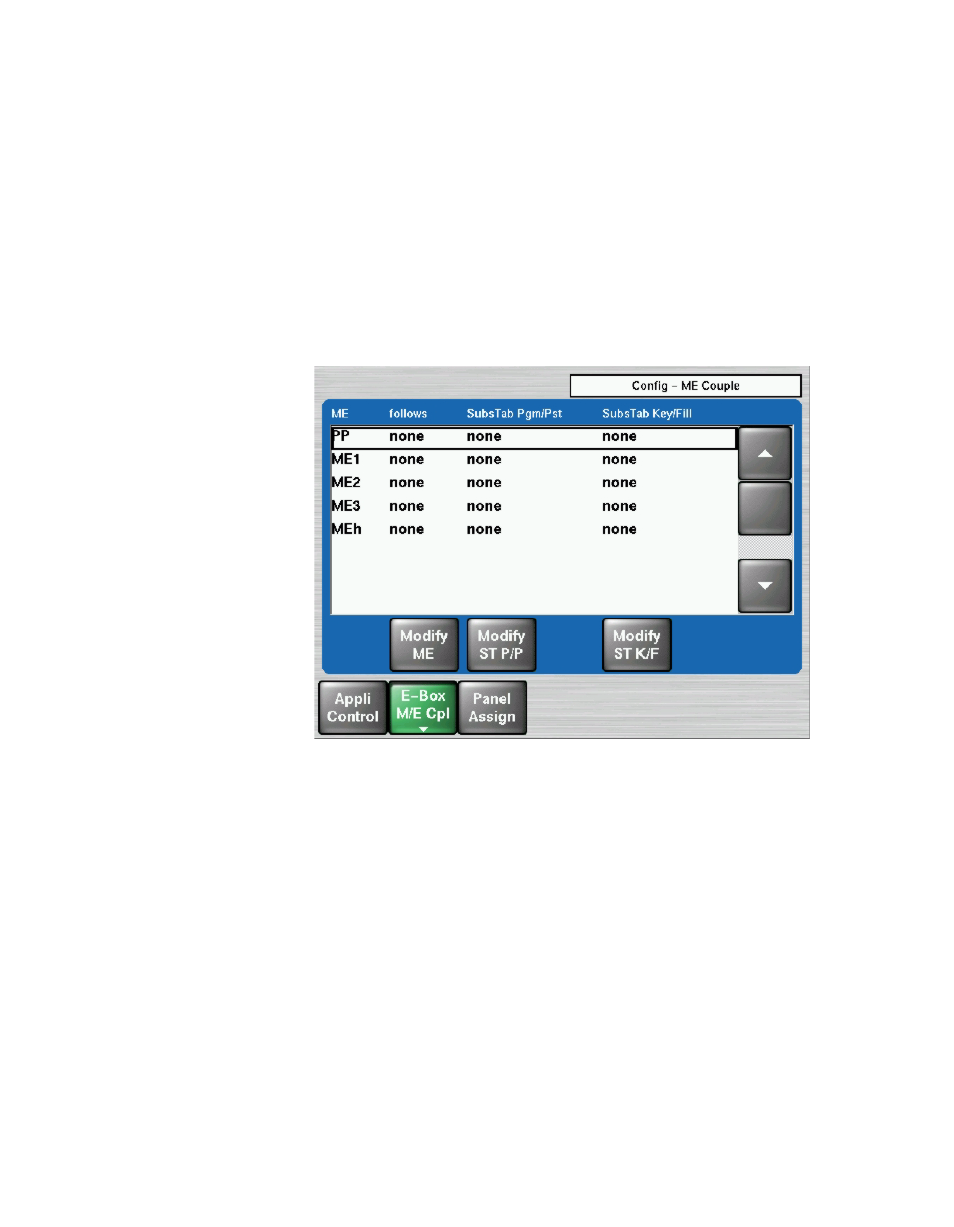

Figure 112. Config - ME Coupled Menu
Coupling Rules
Each M/E can be coupled to any other M/E as long as they belong to the
same application and the coupling doesn't become recursive. The coupling
can be done in serial, parallel and in combinations.
