Menu Panel Description
Menu Screen Organization and Components
Kayak system menus are context sensitive. They display different informa-
tion and provide various types of controls depending on what area of the
system is involved. Menus are organized into categories of related controls,
which can be directly selected with touch buttons located at the bottom left
of the screen. Some configuration menus have additional subcategory
selections available at the bottom right of the menu.
Within a menu, delegations may also be available to access specific param-
eters. In the top corner of many menus you will find a delegation button,
allowing to switch e.g. between different keyers for the same type of menu.
A representative menu screen (Keyer-Preset Pattern) is shown below.
Buttons with a little triangle at the bottom are popup buttons. When
selected, a popup display offers a multiple-choice selection.

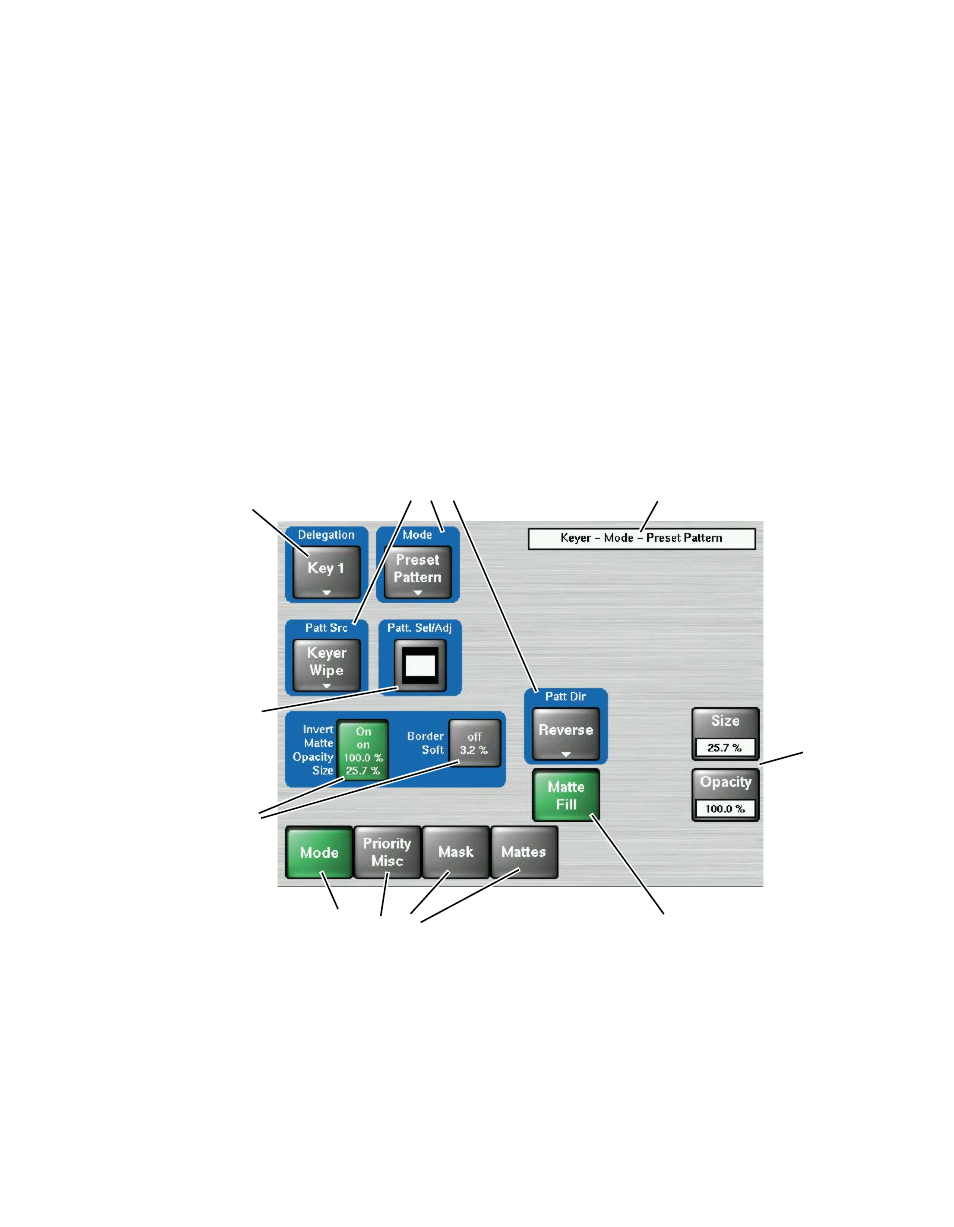

Figure 80. Example Screen Organization and Components
Selection
Popups
Menu
Title
Delegation
Popup
8447_30
r0
Soft Knob
Datapads
Menu Category
Buttons
On / Off
Function
Delegation
Datapads
Pattern
Datapad
