Kayak — User Manual 181
Config Menus
Config - AUX Menu

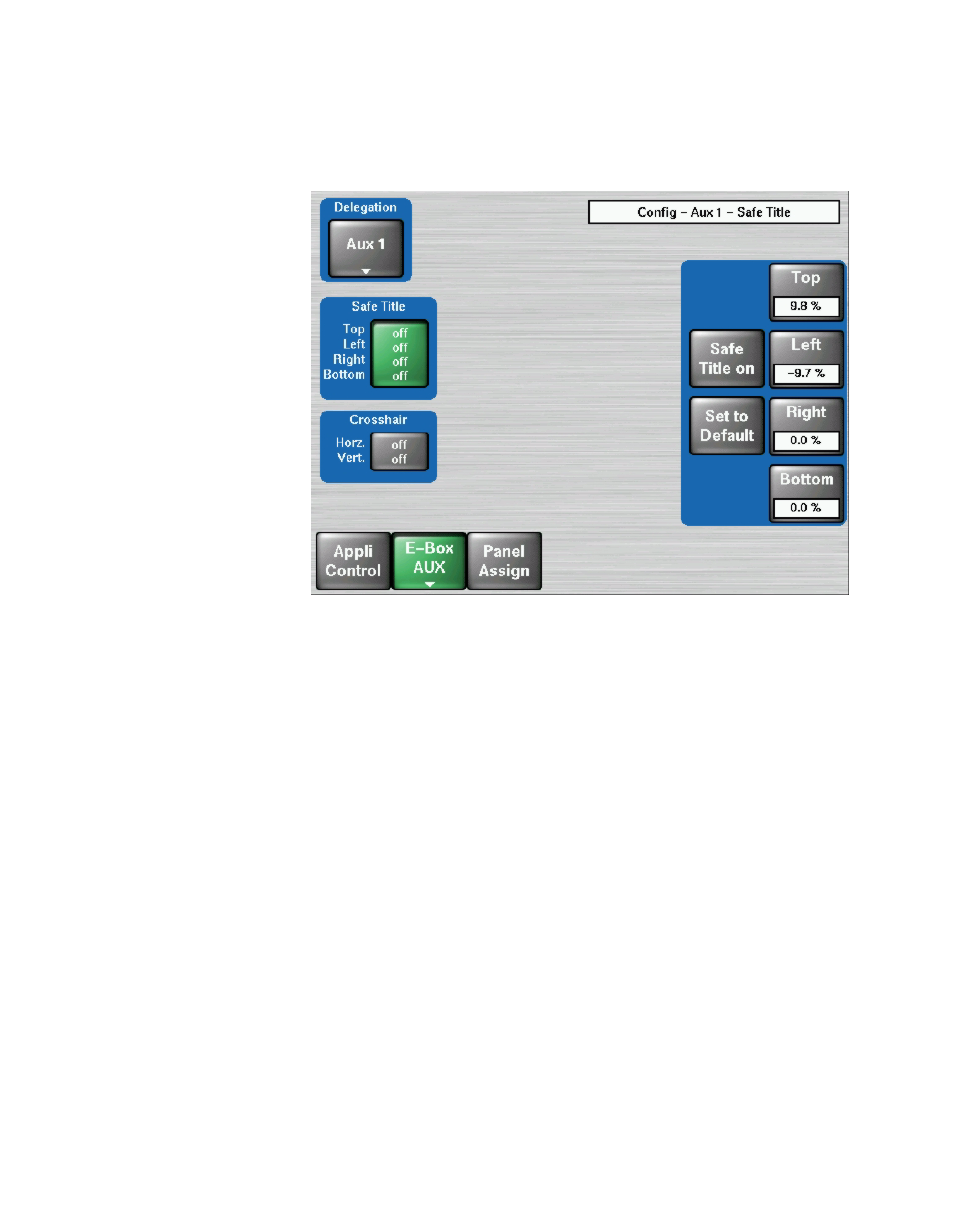

Figure 105. Config - AUX Menu
The Safe Title adjusting elements enable fading–in different auxiliary lines
(Box, Cross) into each individual AUX bus. The fade-ins serve as an auxil-
iary means to mark production-defined picture areas (e.g. areas for logos,
subtitles, 4:3 raster). The digipots enable to adjust the title box or the center
cross over the complete picture area.
• Safe Title fades in a rectangular frame
• Crosshair fades in a center cross
