Config Menus
Config - GPI Menu
General Purpose Interface Inputs (GPI Inputs) can be used by an external
device to trigger an action on the Kayak system. See Installation Manual for
pinout specifications.
The Config-GPI menu allows programming up to 32 system GPI inputs (8
per M/E). Various actions can be performed when a GPI contact closes,
including selecting a source on a bus, recalling an E-MEM, and triggering a
transition.
In this Install-GPI menu the physical properties of each GPI channel can be
adjusted.

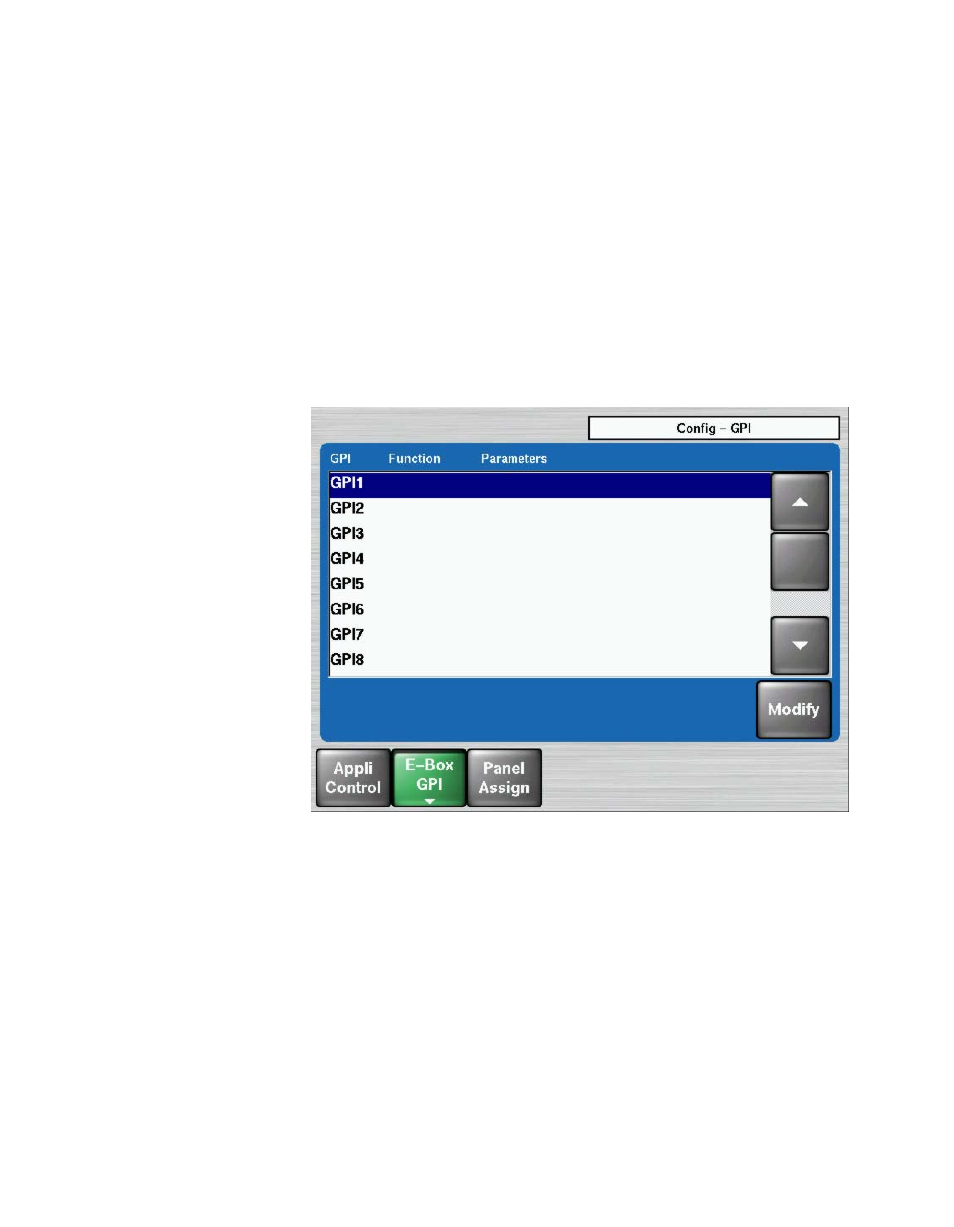

Figure 97. Config - GPI Menu
Touching the Modify button displays a pop–up list. The selected function
will be triggered on the edge defined in the Install -GPI menu.
