Kayak — User Manual 135
Effects Subpanel
E-MEM - Default Mode of Operation
In E-MEM mode the Effects subpanel serves for storing and recalling
switcher statuses and processes.

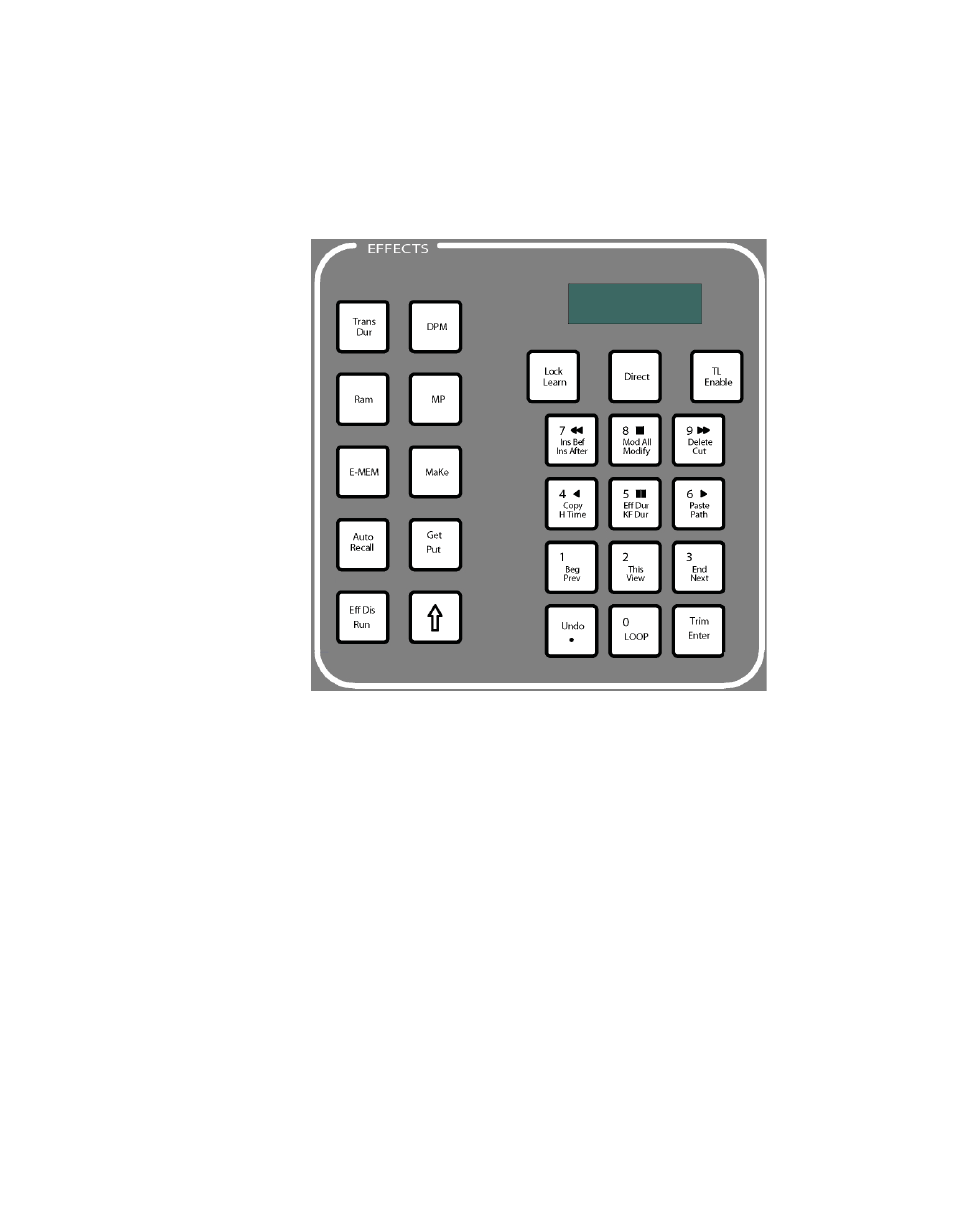

Figure 74. Subpanel Effects (Default Mode)
Numeric key buttons:
When TL Enable is off the numeric values 0 - 9 are used for learning /
recalling registers (see below). When TL Enable is on, the last (bottom) func-
tions are addressed directly, the middle functions are applied using the
Shift key () combined with the appropriate button.
Other Buttons with Two-Level Texts:
The primary function on the button (text on the lower half) is applied by
simply pressing the button The upper text function is applied using the
Shift key () combined with the appropriate button.
Button Functionality
Direct
On : Press a number to recall that register while remaining in the current
bank. Use the Shift () key to perform a 2-button recall (bank + register).
