28 Kayak — User Manual
Section 1 — System Overview
System Components
Kayak Control Surfaces
Kayak Production Switcher systems use a control panel with an integrated
menu display (color TFT with touch-screen). The Sidepanel program,
which runs on a user-supplied Windows PC, can also be used to control the
Kayak system.
1 M/E Control Panel

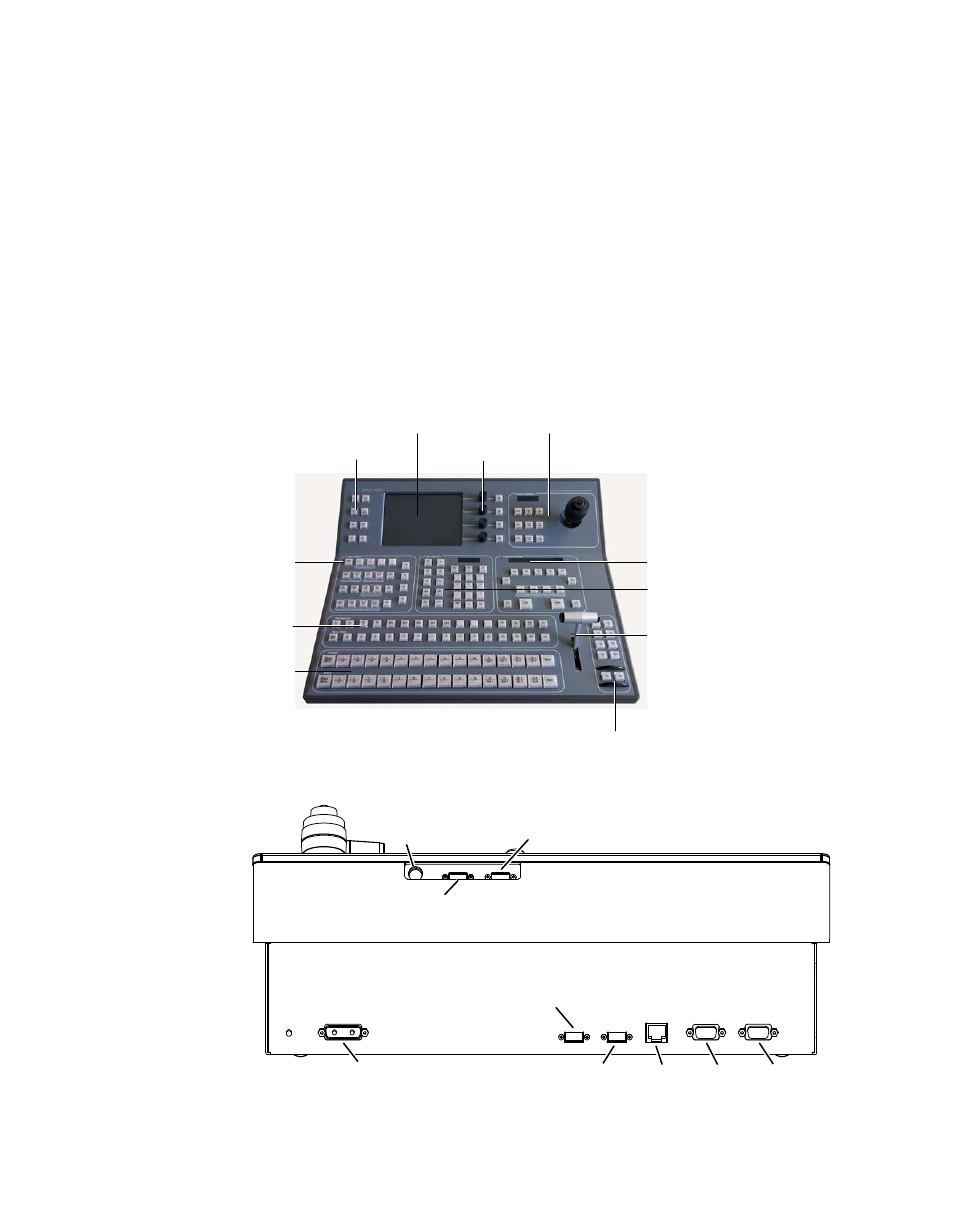

Figure 1. 1 M/E Control Panel, Top View
Figure 2. 1 M/E Control Panel, Rear View
Digipots and
Menu Buttons
Positioner Gra phical Display
Menu Navigation
Program/Preset
Crossbar Selection
Keyer
2nd Transition Subpanel
Positioner Subpanel
Transition Lever
Effect Subpanel
Graphical Display
Keyers Subpanel
Misc Delegation
and Crossbar Selection
Main Transition
Subpanel
Digipots and Menu Buttons Menu Navigation Buttons
Program/Preset
Crossbar Selection
Kayak DD-1 Pa
n el
PS/2 Port
48V DC Power In (from Frame) LAN RS 485 RS 232
8448_04_
r0
USB #4
USB #2
(Future use)
(Future use)
