The list box Audio Settings is used to perform basic adjustments.
The button Assign Buttons opens a second dialog page. This page enables
assignment of the audio channels to the individual buttons of the external
AUX buses for Audio Program / Audio Preset.

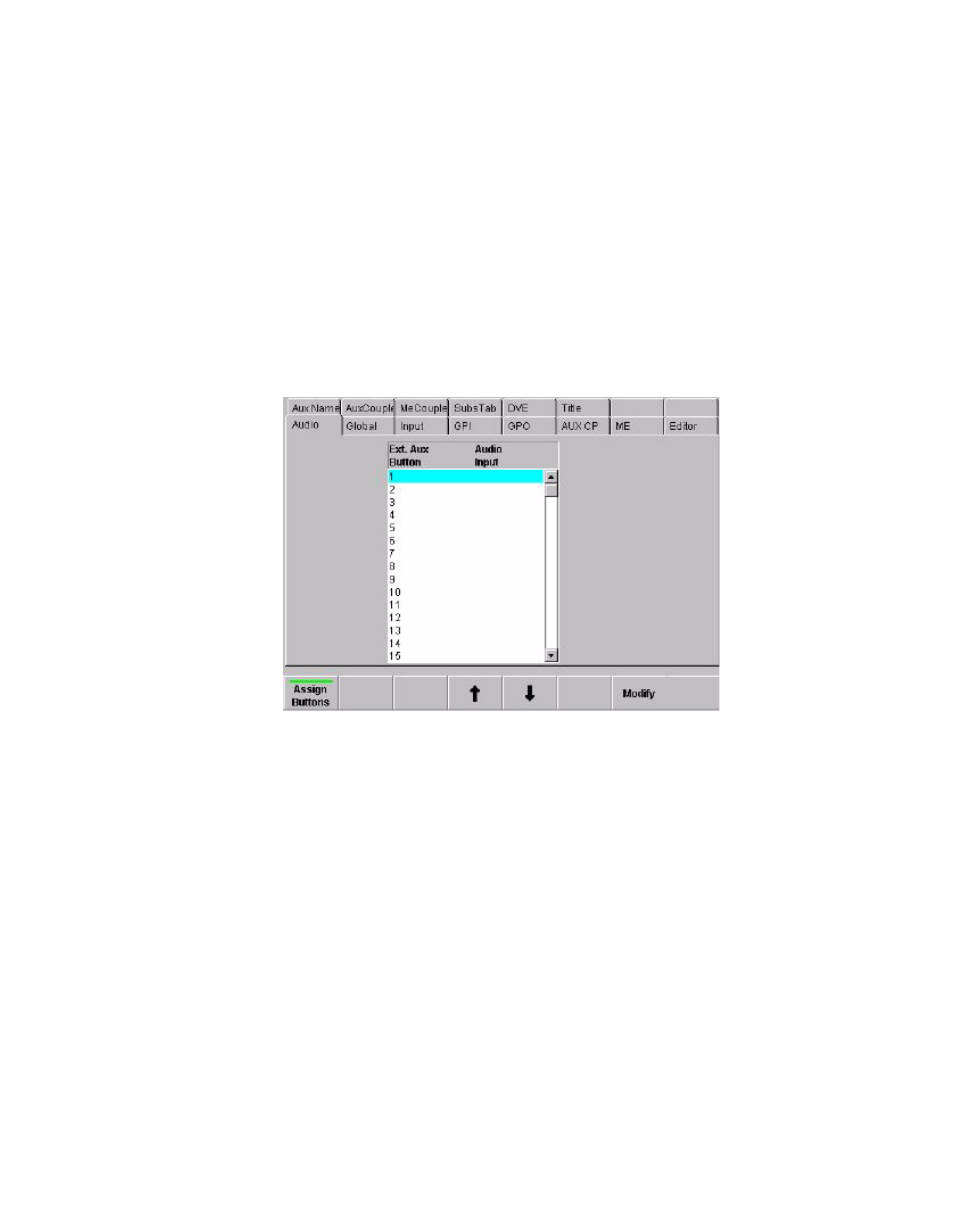

Figure 443. Sidepanel – Index Card Audio Assign
With the ESAM2 protocol, transition with the fader is not possible.
M/E: The audio switcher operates only on one M/E which is
specified here.
Program / Preset: Audio Program and Audio Preset can be mapped on an
external AUX bus.
Operating: The audio switcher follows only PGM (PST). Only PGM
is always to be heard. The crossbar selection only is
switched. If there is no audio assigned to the video, the
last audio source stays.
CUT PGM and PST Sources swap according to the video
AUTO Works only correctly when the associated audio sources
differ from each other. Otherwise, the equal audio
sources are temporarily muted.
PGM/PST Enables you to control the two buses as EXT AUX
BUSES. When switching on these and simultaneously on
the corresponding video crossbar, the last button pressed
takes precedence.
