408 Kayak — User Manual
Section 7 — Sidepanel Menu Summaries
Enable / Disable the Faders
Fader Active: M/E1, M/E2 M/E3, P/P
Press the associated button to enable or disable the panel fader of the indi-
vidual mixing levels and the menu fader in the M/E Main menus. The
active status is displayed in the button. In Kayak HD only PP is available.
User Definable Presets
User definable preset of the mainframe operational state is possible for a
single M/E or the complete switcher. For a recall of the complete switcher
preset select the Status menu. A single switcher preset can be recalled in the
M/Ex Main menu.
Refer to the Install E-Box menu to save the preset data.
Recall Preset
The following presets can be recalled:

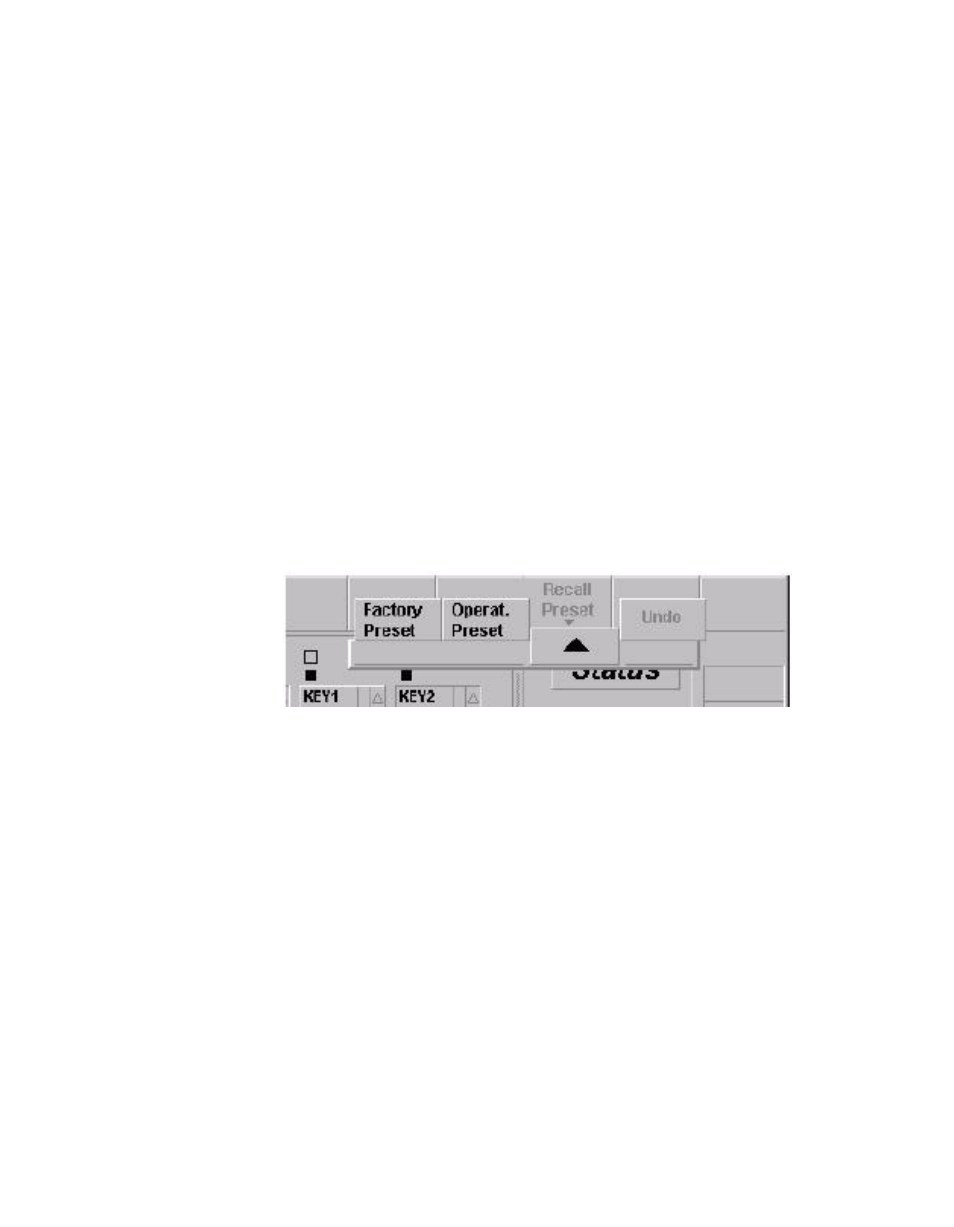

Figure 327. User Definable Presets
Factory Preset
Recall the factory preset.
Operation Preset
Recall the user-defined operation preset. See section Install E-Box Menu on
page 490 to store the user-defined operation preset.
Undo
Recall the last user settings.
