Section 7 — Sidepanel Menu Summaries
AUX CP Index Card
Index card for installing the AUX Control Panels connected with the main-
frame. For details refer to the Installation and Service Manual.

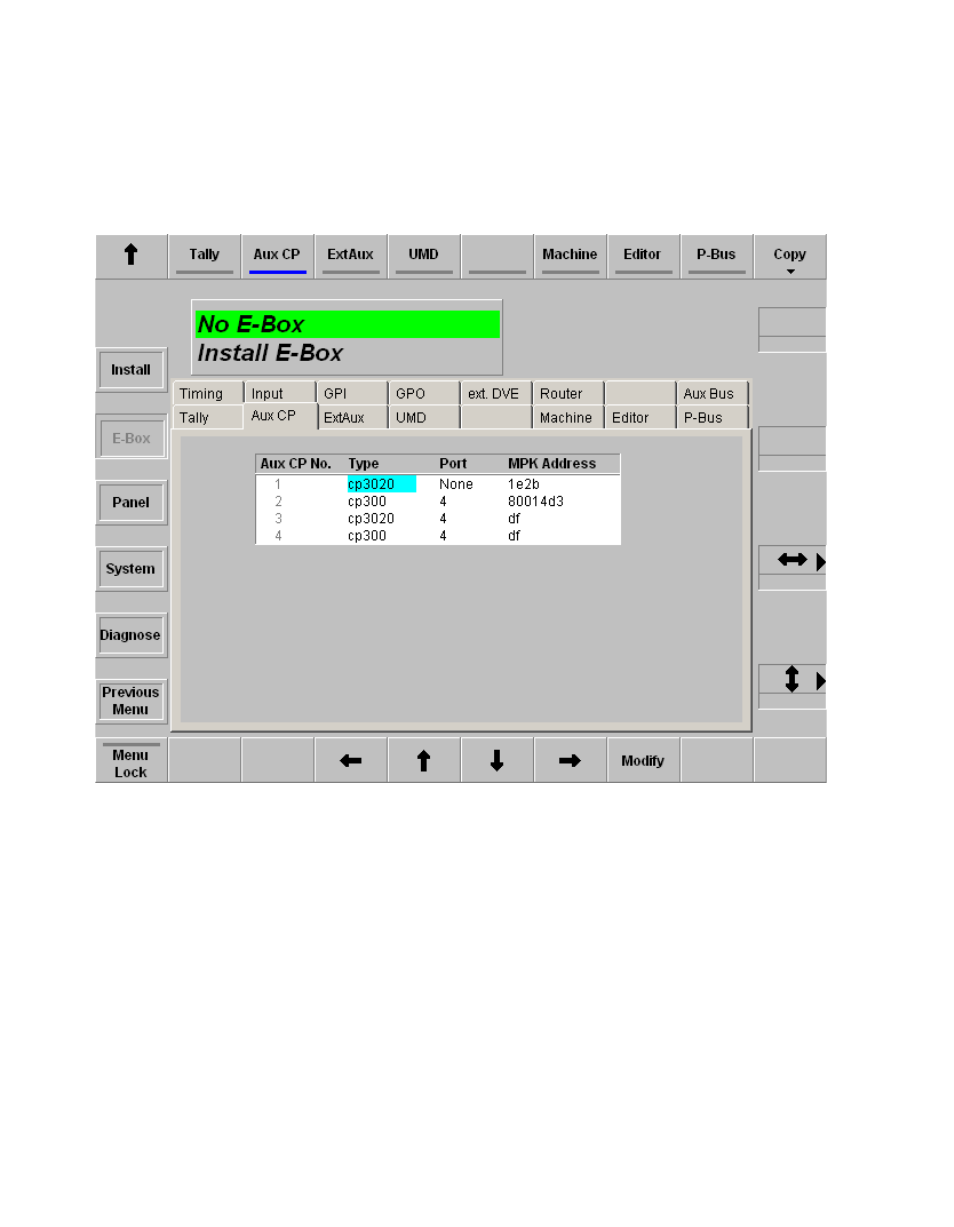

Figure 414. Sidepanel – Index Card AUX CP
Note The port must be different to the ports used for DVEs, Editors, ext. DSKs, etc.
Type: Opens a pop-up window with all types of AUX Control
Panels.
Port: Opens a pop-up window with all ports plus ”None” like
in all other menus where a port must be configured.
MPK Address: Opens the typewriter pop-up window. The physical
MPK address of the AUX-CP must be entered. Refer the
label at the rear of the panel modules (e.g. CP-3020:
e0002d43).
