236 Kayak — User Manual
Section 5 — Kayak Menu Summaries
Preset Pattern
A preset pattern uses a wipe pattern generator, rather than an incoming key
cut signal to define the hole cut in the background. When
Preset Pattern is
chosen as the keyer mode, the menu will appear as in Figure 157 below.
When the Pattern data pad is touched, the Wipe menu (see Wipe Menus) will
come up to allow pattern selection.
The Preset Pattern may be matte-filled by touching the Matte Fill data pad.
The matte controls can be accessed by touching the Mattes button. Opacity
and size of the preset pattern can also be adjusted with the soft knob con-
trols on the right of the screen.

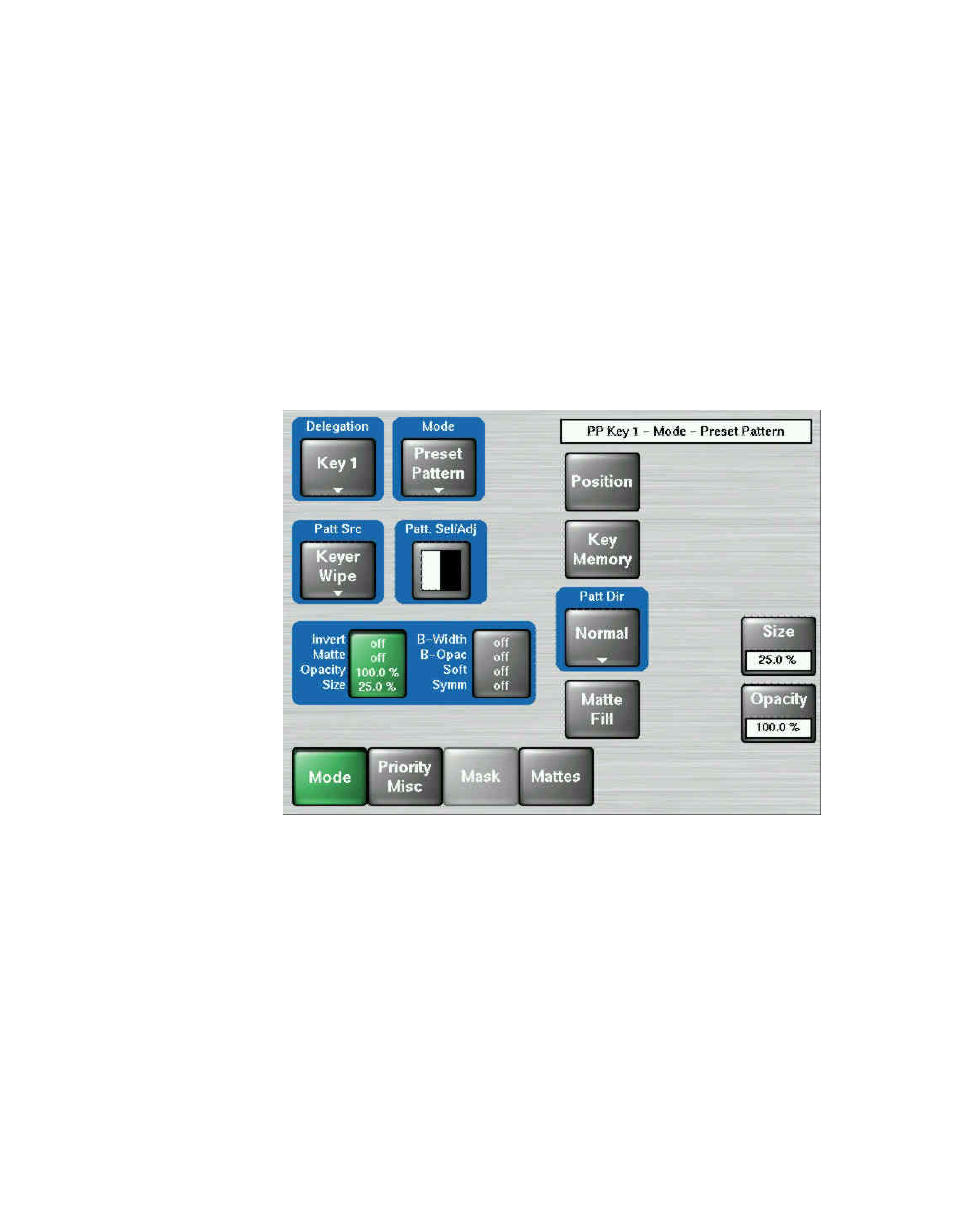

Figure 157. Keyer Mode – Preset Pattern
