Kayak — User Manual 361
Scalar Menu (HD Only)
2. The menu serves to configure each Scalar channel.

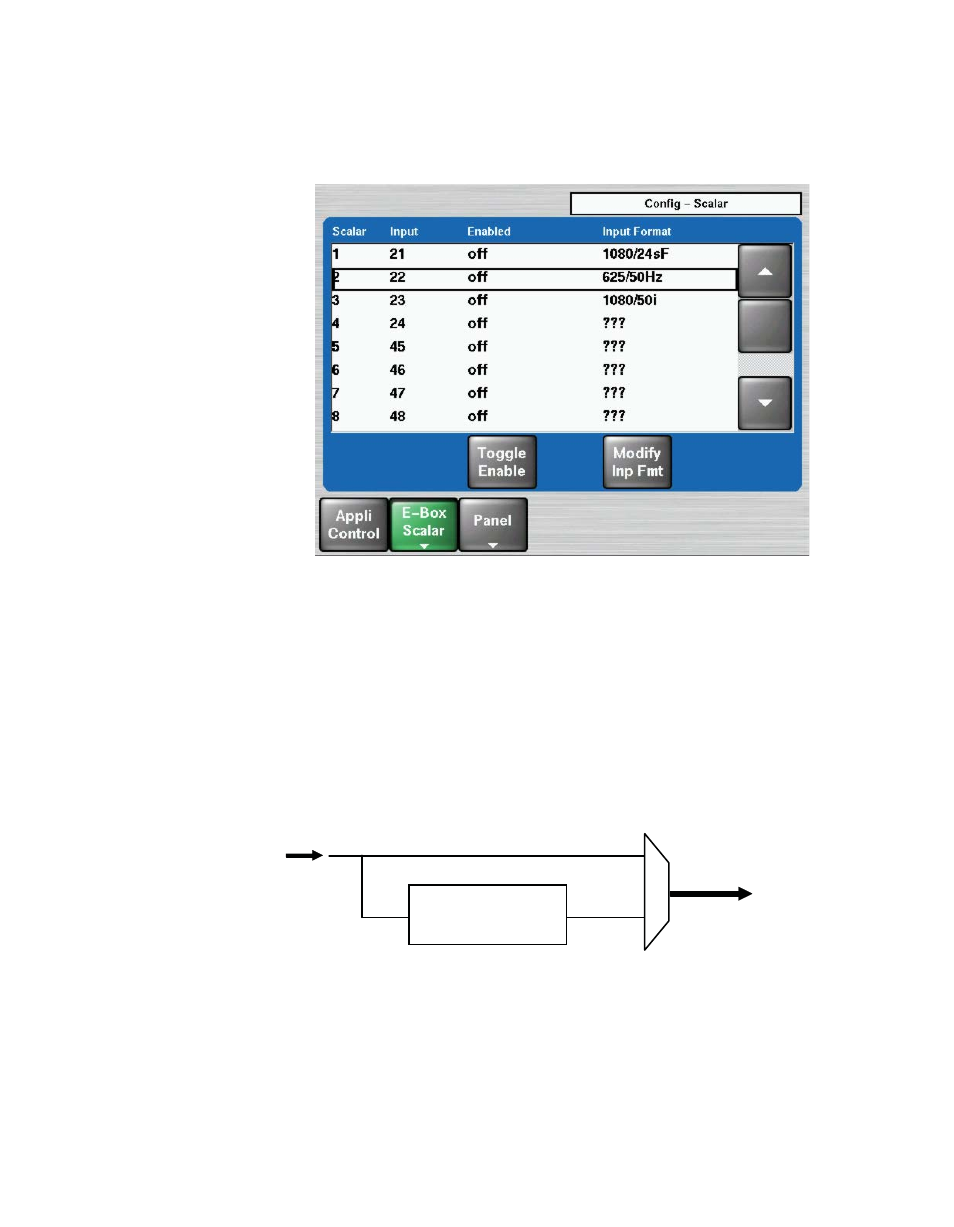

Figure 287. E-Box Configuration Menu Screen
• Modify Input Format (Line Rate)—This sets the type of format to be used
with the video signal coming in from the Input you selected.
• Toggle Enable— Selecting Toggle Enable tells the switcher to use the Scalar
inputs (two to four per M/E) so the signals can be converted up or
down to the
Input Format selected.
As shown in Figure 288 the video signal comes into the scalar BNC input.
If the Toggle Enable button has been selected the signal then goes through the
Scalar to be scaled up or down.
Figure 288. Scalar Option Signal Routing
Deselecting causes video inputs from the Scalar BNC connectors
remain just as they come in from the video source.
Scalar
Enable
Scalar BNC
Input
MUX or
Switch
Converted
Output
Unconverted
Output
To Switcher
Assigned
Input
8448_56_
r1
