114 Kayak — User Manual
Section 3 — Control Panels
Positioner
The Kayak system positioner is a precision three-axis device. Moving the
positioner towards or away from you controls the Y-axis, moving the joy-
stick left and right controls the X-axis, and rotating the joystick controls the
Z axis.

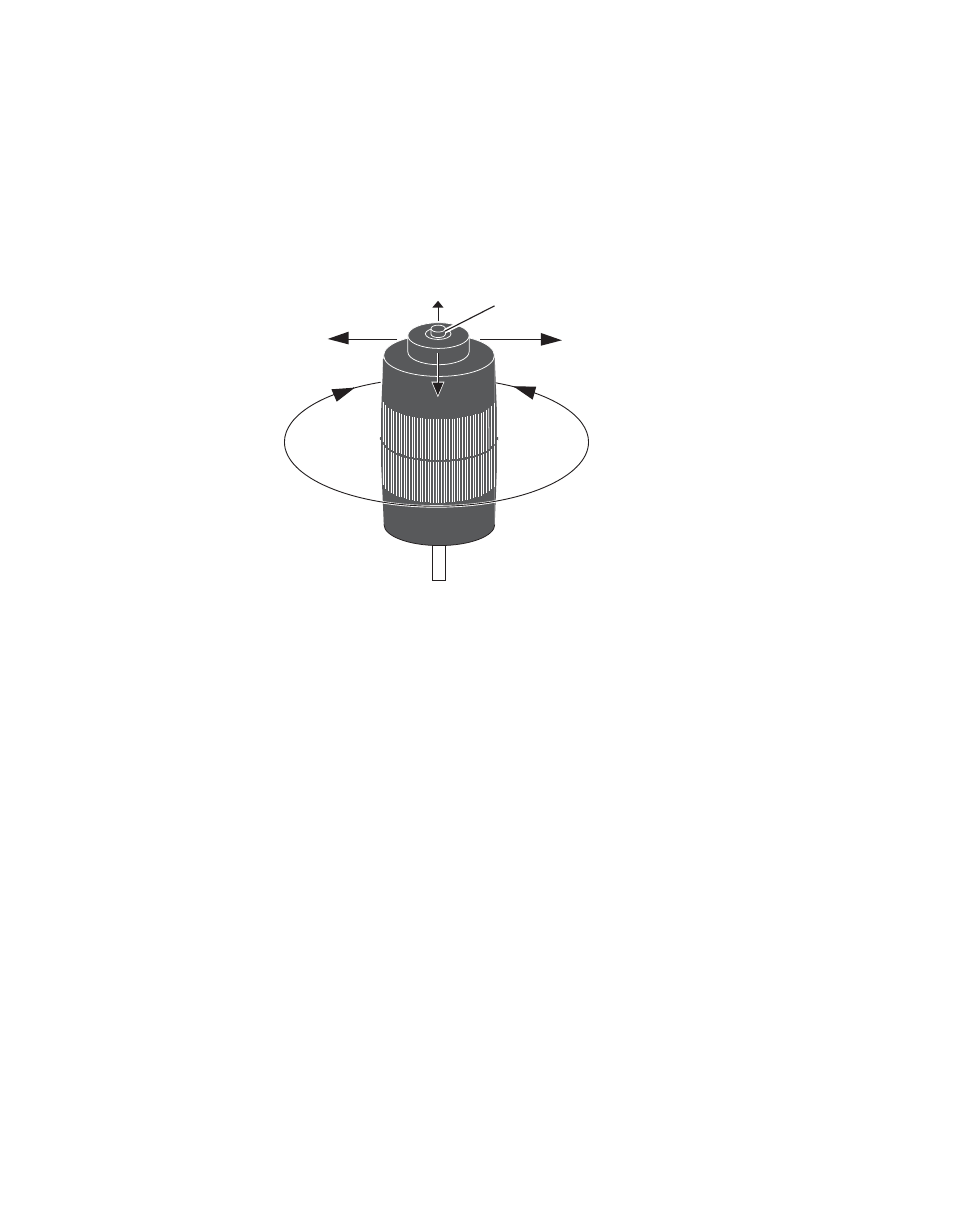

Figure 70. Positioner
Positioner Button
The Positioner button on the top of the Joystick can be used to accelerate the
change of the delegated parameter, to allow quicker placement on the
screen. The
Positioner button is also used to pick a backing color when auto
setting up a chroma key.
Positioner Delegation
Because the Positioner is used for many different functions, multiple stages
of delegation can be required to access and control a specific set of param-
eters.
There are two ways of delegation:
• Delegation by Menu: A selection in the menu delegates the corre-
sponding digipots parameters to the positioner, if the parameters are
suitable to be positioner controlled.
• Delegation by hardware buttons: The Positioner Subpanel has 4 main
delegation buttons. These buttons are used for delegation in combina-
tion with delegation buttons in other subpanels of the switcher.
0618_02_73_r0
Z Axis
X Axis
Y Axis
Joystick Button
